CuLug,#4AWG,3/8Stud,45°PKG50
MFG #LCAX4-38H-L
$7.19 / E
EACH
EACH
Product Description:

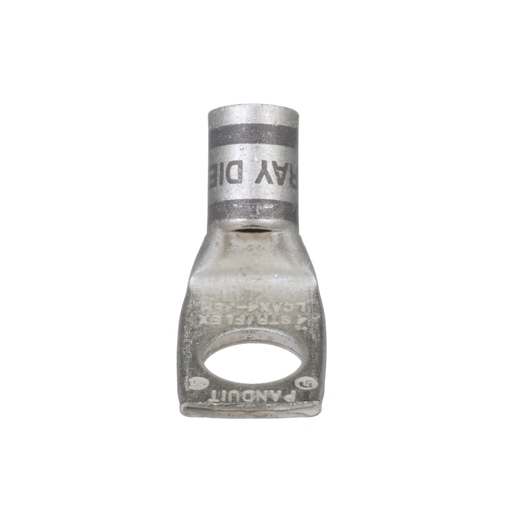

One-hole, flex lug, #4 AWG wire, 3/8 stud hole, 45° angle tongue.
HESCO Part Number
PANLCAX438HL
UPC
074983434190
Manufacturer Part Number
LCAX4-38H-L
Manufacturer
Panduit
CuLug,#4AWG,3/8Stud,45°PKG50
MFG #LCAX4-38H-L
Product Description:
One-hole, flex lug, #4 AWG wire, 3/8 stud hole, 45° angle tongue.
HESCO Part Number
PANLCAX438HL
UPC
074983434190
Manufacturer Part Number
LCAX4-38H-L
Manufacturer
Panduit
$7.19 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Packaging Details
| UPC | : | 07498343419 |
| GTIN Package | : | 00074983434190 |
| Standard Package Volume Ft3 | : | 0.0305 |
| Standard Package Weight Pounds | : | 1.2000 |
| Std Package Height In | : | 3.3 |
| Std Package Height MM | : | 83.82 |
| Std Package Length In | : | 4.7 |
| Std Package Length MM | : | 119.38 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983434190 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Voltage (kV) | : | 35 |
| Sub Brand | : | Pan-Lug™ |
| Color Code | : | Gray |
| Tongue Thickness (In.) | : | 0.07 |
| Product Type | : | Compression Lug |
| Tongue Thickness (mm) | : | 1.8 |
| Stud Hole Size (In.) | : | 3/8 |
| Finish/Coating | : | Tin-Plated |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Burndy Die Index Number | : | 8 |
| Wire Strip Length (mm) | : | 15.8 |
| Tongue Angle | : | 45° |
| Wire Strip Length (In.) | : | 5/8 |
| Overall Length (In.) | : | 1.42 |
| Barrel Length (In.) | : | 0.53 |
| Tongue Width (mm) | : | 15.7 |
| Tongue Width (In.) | : | 0.62 |
| Tongue Type | : | Standard |
| Barrel Length (mm) | : | 13.5 |
| UL Temperature Rating (°C) | : | 90 |
| Base Material | : | Copper |
| T & B Die Index Number | : | 29 |
| Stud Hole Size (mm) | : | 9.5 |
| CSA Temperature Rating (°C) | : | 90 |
| Barrel Type | : | Standard |
| Panduit Die Index Number | : | P29 |
| Overall Length (mm) | : | 36.1 |
| Stud Hole Spacing (mm) | : | 0 |
| Number of Stud Holes | : | 1 |
| Barrel Entry | : | Beveled |
| Inspection Window | : | Yes |
| DLO Copper Flex Conductor Size | : | 4 AWG |
| Class H Copper Flex Conductor Size | : | 4 AWG |
| Class G Copper Flex Conductor Size | : | 4 AWG |
| Class M Copper Flex Conductor Size | : | 4 AWG |
| Class I Copper Flex Conductor Size | : | 4 AWG |
| Copper Conductor Size | : | 4 AWG |
| Class K Copper Flex Conductor Size | : | 4 AWG |
- Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Packaging Details
UPC : 07498343419 GTIN Package : 00074983434190 Standard Package Volume Ft3 : 0.0305 Standard Package Weight Pounds : 1.2000 Std Package Height In : 3.3 Std Package Height MM : 83.82 Std Package Length In : 4.7 Std Package Length MM : 119.38 Std Package Width In : 3.4 Std Package Width MM : 86.36 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 50 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983434190 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 50.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Maximum Voltage (kV) : 35 Sub Brand : Pan-Lug™ Color Code : Gray Tongue Thickness (In.) : 0.07 Product Type : Compression Lug Tongue Thickness (mm) : 1.8 Stud Hole Size (In.) : 3/8 Finish/Coating : Tin-Plated Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Burndy Die Index Number : 8 Wire Strip Length (mm) : 15.8 Tongue Angle : 45° Wire Strip Length (In.) : 5/8 Overall Length (In.) : 1.42 Barrel Length (In.) : 0.53 Tongue Width (mm) : 15.7 Tongue Width (In.) : 0.62 Tongue Type : Standard Barrel Length (mm) : 13.5 UL Temperature Rating (°C) : 90 Base Material : Copper T & B Die Index Number : 29 Stud Hole Size (mm) : 9.5 CSA Temperature Rating (°C) : 90 Barrel Type : Standard Panduit Die Index Number : P29 Overall Length (mm) : 36.1 Stud Hole Spacing (mm) : 0 Number of Stud Holes : 1 Barrel Entry : Beveled Inspection Window : Yes DLO Copper Flex Conductor Size : 4 AWG Class H Copper Flex Conductor Size : 4 AWG Class G Copper Flex Conductor Size : 4 AWG Class M Copper Flex Conductor Size : 4 AWG Class I Copper Flex Conductor Size : 4 AWG Copper Conductor Size : 4 AWG Class K Copper Flex Conductor Size : 4 AWG - Part Drawings
