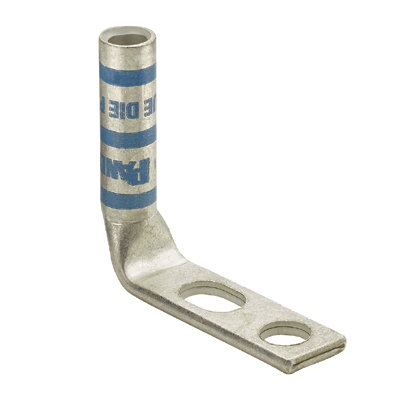

Pan-Lug™ LCC6-14JAWF-L Comp. Lug, 6, Tin Plt Cu, Non-Std Spacing, Two 1/4" Stud
MFG #LCC6-14JAWF-L
$28.85 / E
EACH
EACH
Product Description:
Two-hole, long barrel lug with window, #6 AWG wire, 1/4 stud hole, .50 — .63 hole spacing, 90° angle tongue.
HESCO Part Number
PANLCC614JAWFL
UPC
074983632725
Manufacturer Part Number
LCC6-14JAWF-L
Manufacturer
Panduit
Pan-Lug™ LCC6-14JAWF-L Comp. Lug, 6, Tin Plt Cu, Non-Std Spacing, Two 1/4" Stud
MFG #LCC6-14JAWF-L
Product Description:
Two-hole, long barrel lug with window, #6 AWG wire, 1/4 stud hole, .50 — .63 hole spacing, 90° angle tongue.
HESCO Part Number
PANLCC614JAWFL
UPC
074983632725
Manufacturer Part Number
LCC6-14JAWF-L
Manufacturer
Panduit
$28.85 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Barrel Length (In.) | : | 1.07 |
| Tongue Angle | : | 90° |
| Tongue Type | : | Standard |
| Wire Strip Length (In.) | : | 1-1/8 |
| Stud Hole Size (mm) | : | 6.4 |
| Burndy Die Index Number | : | 7 |
| Color Code | : | Blue |
| Tongue Width (In.) | : | 0.48 |
| Base Material | : | Copper |
| Wire Strip Length (mm) | : | 28.6 |
| Product Type | : | Compression Lug |
| Tongue Width (mm) | : | 12.2 |
| Tongue Thickness (In.) | : | 0.08 |
| CSA Temperature Rating (°C) | : | 90 |
| Stud Hole Spacing (In.) | : | 5/8 |
| Stud Hole Spacing (mm) | : | 16 |
| Barrel Type | : | Long |
| T & B Die Index Number | : | 24 |
| Panduit Die Index Number | : | P24 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Finish/Coating | : | Tin-Plated |
| Maximum Voltage (kV) | : | 35 |
| Overall Length (mm) | : | 42.2 |
| Overall Length (In.) | : | 1.66 |
| UL Temperature Rating (°C) | : | 90 |
| Tongue Thickness (mm) | : | 2 |
| Sub Brand | : | Pan-Lug™ |
| Barrel Length (mm) | : | 27.2 |
| Stud Hole Size (In.) | : | 1/4 |
| Barrel Entry | : | Beveled |
| Inspection Window | : | Yes |
| Number of Stud Holes | : | 2 |
| Copper Conductor Size | : | 6 AWG |
Packaging Details | ||
| UPC | : | 07498363272 |
| GTIN Package | : | 00074983632725 |
| Standard Package Volume Ft3 | : | 0.0305 |
| Standard Package Weight Pounds | : | 1.5500 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 4.75 |
| Std Package Length MM | : | 120.65 |
| Std Package Width In | : | 3.35 |
| Std Package Width MM | : | 85.09 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983632725 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
