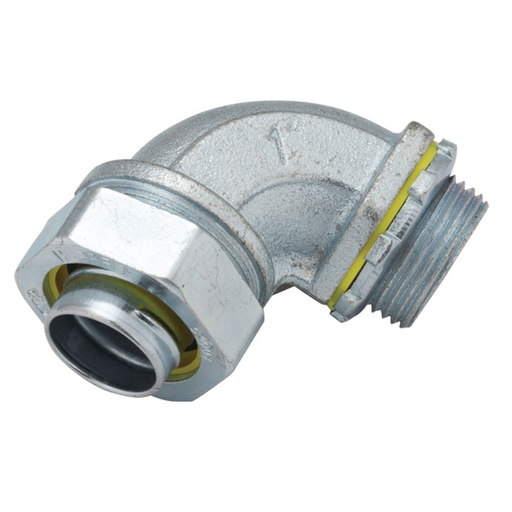

1-1/2 in. 90 Degree Liquidtight Connector, Uninsulated
MFG #3426
$260.10 / E
Each
Each
Product Description:
1-1/2 in. 90 Degree Liquidtight Connector, Uninsulated
HESCO Part Number
RAC3426
UPC
050169034262
Manufacturer Part Number
3426
Manufacturer
Raco
1-1/2 in. 90 Degree Liquidtight Connector, Uninsulated
MFG #3426
Product Description:
1-1/2 in. 90 Degree Liquidtight Connector, Uninsulated
HESCO Part Number
RAC3426
UPC
050169034262
Manufacturer Part Number
3426
Manufacturer
Raco
$260.10 / E
Each
Each
- Features
- Specifications
- Resources
- Patented split gland-ring is designed to slip onto the conduit quickly and to grip the jacket of the conduit, speeding installation, assuring a perfect seal and preventing pullouts
- RACO liquidtight connectors may be easily disassembled and reused after years of service
- Sealing washer (included) provides a liquidtight seal when terminating the connector in a threadless opening
- Heavy duty locknut included with every RACO liquidtight connector assures continuity of ground
- All steel/iron components are zinc electroplated for added corrosion protection
- UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
- 3/8 in. to 1 in. Steel, 1-1/4 in. to 4 in. Malleable Iron bodies and nuts
- Additional sizes available
Specifications
| Buy American Compliant | : | Contact Manufacturer |
| ChannelSightWidgetId | : | 705 |
| Country of Origin | : | CN |
| Dimensions | : | 2.813 in x 2.813 in x 5.063 in |
| Width | : | 2.813 in |
| Each - Width | : | 2.813 in |
| Hazardous Rating(s) | : | Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2 |
| Height | : | 5.063 in |
| Industry Standard(s) | : | UL 514B |
| Length | : | 2.813 in |
| Product Type | : | Commercial Fittings |
| Size | : | 2.813 in x 2.813 in x 5.063 in |
| Standard | : | UL 514B |
| Trade Size | : | 1.5 in |
| Weight | : | 1.36 lb. |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D04 |
| Description - Invoice | : | LIQUIDTIGHT CONNECTOR 90˚ 1-1/2 IN STEEL |
| Freight Class Code | : | 06202000 |
| Harmonization Code | : | 7326908688 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 91 wk |
| MSDS Flag | : | Yes |
| Order Multiple | : | 5 EA |
| Returnable Indicator | : | Yes |
| Stock Indicator | : | S - Shelf Stock |
| Sub Class Code | : | D047D0472 |
| Material | : | Steel/Malleable Iron |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 4.625x8x7 (in) |
| Carton - Gross Weight per Pack | : | 6.8 lb. |
| Carton - Number of Sub Packs | : | 5 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 50169034262 |
| Carton - Total Units | : | 5 EA |
| Each - Pack Description | : | Each |
| Item Package Type | : | Carton |
| Lowest Level UOM | : | Each |
| Pallet - GTIN - Package | : | 70050169034261 |
| Pallet - Number of Sub Packs | : | 240 |
| Pallet - Pack Description | : | Pallet |
| Pallet - SCC-14 Next Lower Level Sub Pack | : | 50050169034267 |
| Pallet - Total Units | : | 1200 EA |
| Pallet Height | : | 41.000 in |
| Pallet Length | : | 43.375 in |
| Pallet Weight | : | 1677.000 lb. |
| Pallet Width | : | 43.375 in |
Certifications | ||
| Certified Listed | : | UL Listed;CSA Certified |
| EU RoHS Indicator | : | Yes |
- Patented split gland-ring is designed to slip onto the conduit quickly and to grip the jacket of the conduit, speeding installation, assuring a perfect seal and preventing pullouts
- RACO liquidtight connectors may be easily disassembled and reused after years of service
- Sealing washer (included) provides a liquidtight seal when terminating the connector in a threadless opening
- Heavy duty locknut included with every RACO liquidtight connector assures continuity of ground
- All steel/iron components are zinc electroplated for added corrosion protection
- UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
- 3/8 in. to 1 in. Steel, 1-1/4 in. to 4 in. Malleable Iron bodies and nuts
- Additional sizes available
Specifications
Buy American Compliant : Contact Manufacturer ChannelSightWidgetId : 705 Country of Origin : CN Dimensions : 2.813 in x 2.813 in x 5.063 in Width : 2.813 in Each - Width : 2.813 in Hazardous Rating(s) : Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2 Height : 5.063 in Industry Standard(s) : UL 514B Length : 2.813 in Product Type : Commercial Fittings Size : 2.813 in x 2.813 in x 5.063 in Standard : UL 514B Trade Size : 1.5 in Weight : 1.36 lb. ARRA Compliant : Contact Manufacturer Class Code : D04 Description - Invoice : LIQUIDTIGHT CONNECTOR 90˚ 1-1/2 IN STEEL Freight Class Code : 06202000 Harmonization Code : 7326908688 Image Actual Or Representative : R Lead Time : 91 wk MSDS Flag : Yes Order Multiple : 5 EA Returnable Indicator : Yes Stock Indicator : S - Shelf Stock Sub Class Code : D047D0472 Material : Steel/Malleable Iron Base Unit of Measure : EA BOX SIZE : 4.625x8x7 (in) Carton - Gross Weight per Pack : 6.8 lb. Carton - Number of Sub Packs : 5 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 50169034262 Carton - Total Units : 5 EA Each - Pack Description : Each Item Package Type : Carton Lowest Level UOM : Each Pallet - GTIN - Package : 70050169034261 Pallet - Number of Sub Packs : 240 Pallet - Pack Description : Pallet Pallet - SCC-14 Next Lower Level Sub Pack : 50050169034267 Pallet - Total Units : 1200 EA Pallet Height : 41.000 in Pallet Length : 43.375 in Pallet Weight : 1677.000 lb. Pallet Width : 43.375 in Certifications
Certified Listed : UL Listed;CSA Certified EU RoHS Indicator : Yes - Downloads
Spec SheetMSDSCatalog Full Asset ReferenceSales Drawing Asset ReferenceTerms and Conditions Asset Reference
