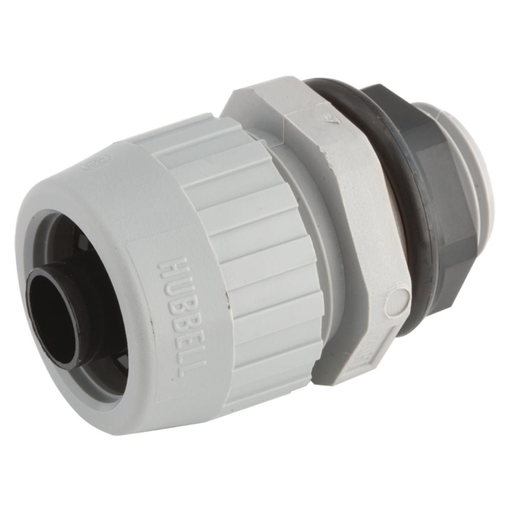

1-1/2 in. Type B Liquidtight Straight Connector
MFG #4726
$88.44Â /Â E
Each
Each
Product Description:
1-1/2 in. Type B Liquidtight Straight Connector
HESCO Part Number
RAC4726
UPC
050169047262
Manufacturer Part Number
4726
Manufacturer
Raco
1-1/2 in. Type B Liquidtight Straight Connector
MFG #4726
$88.44Â /Â E
Each
Each
Product Description:
1-1/2 in. Type B Liquidtight Straight Connector
HESCO Part Number
RAC4726
UPC
050169047262
Manufacturer Part Number
4726
Manufacturer
Raco
1-1/2 in. Type B Liquidtight Straight Connector
MFG #4726
Product Description:
1-1/2 in. Type B Liquidtight Straight Connector
HESCO Part Number
RAC4726
UPC
050169047262
Manufacturer Part Number
4726
Manufacturer
Raco
$88.44Â /Â E
Each
Each
- Features
- Specifications
- Resources
- Nylon construction provides superior corrison resistance
- Available in trade sizes 3/8 in. through 2 in.
- Includes neoprene O-ring and nylon locknuts
Specifications
| Country of Origin | :Â Â | PR |
| Dimensions | :Â Â | 2.35 in x 2.49 in x 2.49 in |
| Width | :Â Â | 2.490 in |
| Each - Width | :Â Â | 2.490 in |
| Height | :Â Â | 2.49 in |
| Length | :Â Â | 2.35 in |
| Application | :Â Â | For use in dry or wet locations when the conduit and fittings are not subject to physical damage;Use Type B conduit and fittings whenever flexibility is required for installation, operation, or maintenance |
| Environmental Conditions | :Â Â | Wet Location |
| NEMA Rating | :Â Â | NEMA 4X, 12 and 13 |
| Size | :Â Â | 2.35 in x 2.49 in x 2.49 in |
| Standard | :Â Â | UL Listed;CSA Certified |
| Configuration | :Â Â | Straight |
| Connector Type | :Â Â | SWIVEL-LOK |
| Nema Rating | :Â Â | NEMA 4X, 12 and 13 |
| Trade Size | :Â Â | 1-1/2 in |
| Weight | :Â Â | 0.24 lb. |
| Class Code | :Â Â | D04 |
| Description - Invoice | :Â Â | LIQUIDTIGHT CONNECTOR 1-1/2 IN NYLON |
| Freight Class Code | :Â Â | 06202000 |
| Harmonization Code | :Â Â | 3926909985 |
| Image Actual Or Representative | :Â Â | R |
| Sub Class Code | :Â Â | D04D047 |
| Fitting Type | :Â Â | Connectors |
| Conduit Type | :Â Â | Liquidtight |
| Material | :Â Â | Nylon |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 4.000x8.750x5.000 (in) |
| Carton - Gross Weight per Pack | :Â Â | 1.2 lb. |
| Carton - Number of Sub Packs | :Â Â | 5 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00050169047262 |
| Carton - Total Units | :Â Â | 5 EA |
| Pallet - GTIN - Package | :Â Â | 70050169047261 |
| Pallet - SCC-14 Next Lower Level Sub Pack | :Â Â | 50050169047267 |
| Pallet - Total Units | :Â Â | 1520 EA |
| Pallet Height | :Â Â | 36.375 in |
| Pallet Length | :Â Â | 42.000 in |
| Pallet Weight | :Â Â | 409.800 lb. |
| Pallet Width | :Â Â | 48.000 in |
Certifications | ||
| Certified Listed | :Â Â | UL Listed;CSA Certified |
- Nylon construction provides superior corrison resistance
- Available in trade sizes 3/8 in. through 2 in.
- Includes neoprene O-ring and nylon locknuts
Specifications
Country of Origin :Â Â PR Dimensions :Â Â 2.35 in x 2.49 in x 2.49 in Width :Â Â 2.490 in Each - Width :Â Â 2.490 in Height :Â Â 2.49 in Length :Â Â 2.35 in Application :Â Â For use in dry or wet locations when the conduit and fittings are not subject to physical damage;Use Type B conduit and fittings whenever flexibility is required for installation, operation, or maintenance Environmental Conditions :Â Â Wet Location NEMA Rating :Â Â NEMA 4X, 12 and 13 Size :Â Â 2.35 in x 2.49 in x 2.49 in Standard :Â Â UL Listed;CSA Certified Configuration :Â Â Straight Connector Type :Â Â SWIVEL-LOK Nema Rating :Â Â NEMA 4X, 12 and 13 Trade Size :Â Â 1-1/2 in Weight :Â Â 0.24 lb. Class Code :Â Â D04 Description - Invoice :Â Â LIQUIDTIGHT CONNECTOR 1-1/2 IN NYLON Freight Class Code :Â Â 06202000 Harmonization Code :Â Â 3926909985 Image Actual Or Representative :Â Â R Sub Class Code :Â Â D04D047 Fitting Type :Â Â Connectors Conduit Type :Â Â Liquidtight Material :Â Â Nylon Base Unit of Measure :Â Â EA BOX SIZE :Â Â 4.000x8.750x5.000 (in) Carton - Gross Weight per Pack :Â Â 1.2 lb. Carton - Number of Sub Packs :Â Â 5 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00050169047262 Carton - Total Units :Â Â 5 EA Pallet - GTIN - Package :Â Â 70050169047261 Pallet - SCC-14 Next Lower Level Sub Pack :Â Â 50050169047267 Pallet - Total Units :Â Â 1520 EA Pallet Height :Â Â 36.375 in Pallet Length :Â Â 42.000 in Pallet Weight :Â Â 409.800 lb. Pallet Width :Â Â 48.000 in Certifications
Certified Listed :Â Â UL Listed;CSA Certified - Downloads
