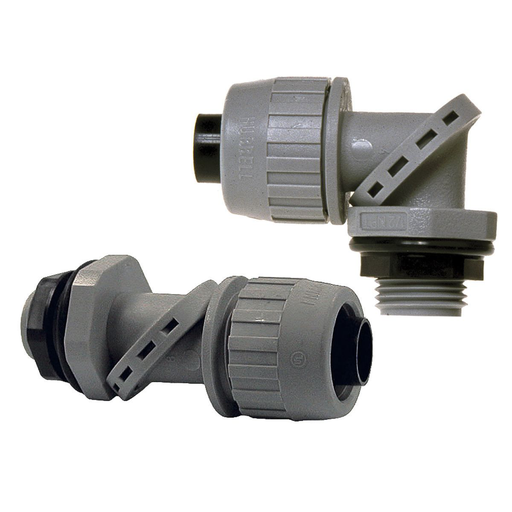

1 in. SWIVEL-LOK®, Type B Liquidtight Multi-Position Connector
MFG #4734-8
Requires Quote
/ Each
Product Description:
1 in. SWIVEL-LOK®, Type B Liquidtight Multi-Position Connector
HESCO Part Number
RAC47348
UPC
050169047347
Manufacturer Part Number
4734-8
Manufacturer
Raco
1 in. SWIVEL-LOK®, Type B Liquidtight Multi-Position Connector
MFG #4734-8
Requires Quote
/ Each
Product Description:
1 in. SWIVEL-LOK®, Type B Liquidtight Multi-Position Connector
HESCO Part Number
RAC47348
UPC
050169047347
Manufacturer Part Number
4734-8
Manufacturer
Raco
1 in. SWIVEL-LOK®, Type B Liquidtight Multi-Position Connector
MFG #4734-8
Product Description:
1 in. SWIVEL-LOK®, Type B Liquidtight Multi-Position Connector
HESCO Part Number
RAC47348
UPC
050169047347
Manufacturer Part Number
4734-8
Manufacturer
Raco
Requires Quote
/ Each
- Features
- Specifications
- Resources
- All gray nonmetallic construction provides superior corrosion resistance
- Each connector is supplied with a Neoprene O-ring and nylon gasket
- SWIVEL-LOK, multi-position connector (trade sizes 3/8 in. to 1 in.) twists from 0° to 90°, easing installation in difficult locations and eliminating need to stock other angle connectors
- UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
- Additional sizes available
Specifications
| Buy American Compliant | : | Contact Manufacturer |
| Country of Origin | : | PR |
| Dimensions | : | 4 in x 1.8 in x 1.8 in |
| Height | : | 1.800 in |
| Each - Height | : | 1.800 in |
| Length | : | 4.000 in |
| Each - Length | : | 4.000 in |
| Width | : | 1.800 in |
| Each - Width | : | 1.800 in |
| Industry Standard(s) | : | UL 514B |
| Product Type | : | Commercial Fittings |
| Application | : | For use in dry or wet locations when the conduit and fittings are not subject to physical damage;Use Type B conduit and fittings whenever flexibility is required for installation, operation, or maintenance |
| Environmental Conditions | : | Wet Location |
| NEMA Rating | : | NEMA 4X, 12 and 13 |
| Size | : | 4 in x 1.8 in x 1.8 in |
| Standard | : | UL 514B |
| Configuration | : | Multi-Position |
| Connector Type | : | SWIVEL-LOK |
| Nema Rating | : | NEMA 4X, 12 and 13 |
| Trade Size | : | 1 in |
| Weight | : | 0.12 lb. |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D04 |
| Description - Invoice | : | CONN LQTGHT SWVL 90DEG TYP B 1"TS NM |
| Freight Class Code | : | 06202000 |
| Harmonization Code | : | 3926909985 |
| Image Actual Or Representative | : | R |
| MSDS Flag | : | Yes |
| Order Multiple | : | 10 EA |
| Returnable Indicator | : | Yes |
| Stock Indicator | : | S - Shelf Stock |
| Sub Class Code | : | D047D0481 |
| Fitting Type | : | Connectors |
| Conduit Type | : | Liquidtight |
| Material | : | Nylon |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 4.313x10x5.25 (in) |
| Carton - Gross Weight per Pack | : | 1.2 lb. |
| Carton - GTIN - Package | : | 50050169473486 |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 50169047347 |
| Carton - Total Units | : | 10 EA |
| Carton Height | : | 4.313 in |
| Carton Length | : | 10 in |
| Carton Weight | : | 1.2 lb. |
| Carton Width | : | 5.25 in |
| Each - Gross Weight per Pack | : | 0.120 lb. |
| Each - GTIN - Package | : | 00050169047347 |
| Each - Pack Description | : | Each |
| Each - Total Units | : | 1 EA |
| Item Package Type | : | Carton |
| Lowest Level UOM | : | Each |
| Pallet - GTIN - Package | : | 70050169473480 |
| Pallet - Number of Sub Packs | : | 288 |
| Pallet - Pack Description | : | Pallet |
| Pallet - SCC-14 Next Lower Level Sub Pack | : | 50050169473486 |
| Pallet - Total Units | : | 2880 EA |
| Pallet Height | : | 38.879 in |
| Pallet Length | : | 42.000 in |
| Pallet Weight | : | 390.600 lb. |
| Pallet Width | : | 48.000 in |
Certifications | ||
| Certified Listed | : | UL Listed;CSA Certified |
| EU RoHS Indicator | : | Contact Manufacturer |
- All gray nonmetallic construction provides superior corrosion resistance
- Each connector is supplied with a Neoprene O-ring and nylon gasket
- SWIVEL-LOK, multi-position connector (trade sizes 3/8 in. to 1 in.) twists from 0° to 90°, easing installation in difficult locations and eliminating need to stock other angle connectors
- UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
- Additional sizes available
