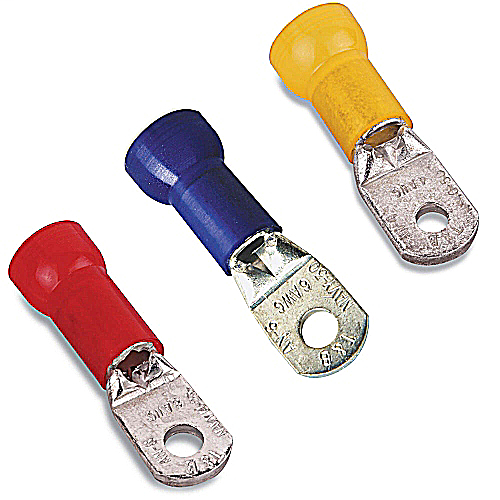

Ring Terminal
MFG #RD8-14
$5.63 / E
EACH
EACH
Product Description:
Insulated Nylon Ring Terminal For Wire Range 8 Stud Size 1/4, Red
HESCO Part Number
TBRD814
UPC
78621087202
Manufacturer Part Number
RD8-14
Manufacturer
Thomas & Betts
Ring Terminal
MFG #RD8-14
Product Description:
Insulated Nylon Ring Terminal For Wire Range 8 Stud Size 1/4, Red
HESCO Part Number
TBRD814
UPC
78621087202
Manufacturer Part Number
RD8-14
Manufacturer
Thomas & Betts
$5.63 / E
EACH
EACH
- Features
- Specifications
- Resources
- Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
- UL
- CSA
- Not available on Mylar Tape.
Dimension Information
| Maximum Insulation (inches) | : | .340 |
| M (inches) | : | 1.32 |
| Stock Thickness | : | .04 |
| A (inches) | : | 1.54 |
| C (inches) | : | .36 |
| B (inches) | : | .46 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Inner Package | : | 25 |
| Outer Package | : | 250 |
| Package Width | : | 9.5 |
| Package Type | : | Standard |
| Package Length | : | 11.5 |
| T&B Sold in UOM | : | Each |
| T&B Weight Per UOM | : | 1.25 lbs. per 100 |
| Alternate Package Qty | : | RD717 |
| Package Height | : | 7.5 |
| Order Multiple | : | 25 |
Tooling | ||
| Recommended Tool | : | ERG4007 |
| Application Tools | : | ERG4007 |
General | ||
| Wire Range | : | 8 |
| Finish | : | Electro Tin-Plated |
| Material | : | Copper |
| Insulation Type | : | Insulated Nylon |
| Terminal Series | : | RD |
| Stud Size | : | 1/4 |
| Color | : | Red |
Specifications | ||
| Voltage Rating | : | 600V |
| Flammability Rating | : | UL 94 V-2 |
| Temperature Rating | : | 105°C |
Application Support
Wire Guide Tables
T&B Sales Drawings
Overview
Certifications
RoHS Compliance
Tooling
Tool Charts
