ABDCM30-A-C Cable Tie Mount, White, PA6.6, Rubber Adh, 1.12x1.12", PK100
MFG #ABDCM30-A-C
$2.28 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:

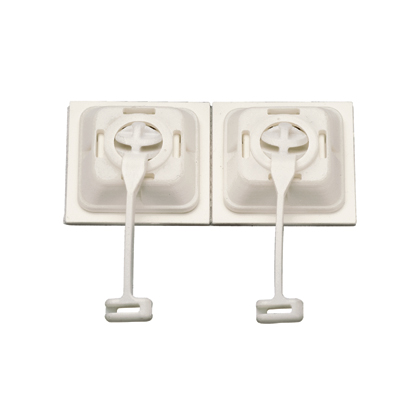

Panduit ABDCM30-A-C dynamic cable manager mounts provide panel strain relief during the opening and closing of electrical cabinet doors. Mounts are 1.12" x 1.12" (28.5 x 28.5 mm), mounted with rubber-based adhesive tape and are used with miniature, intermediate, and standard cable ties. The mounts are made of nylon 6.6, white in color and come in packages of 100.
HESCO Part Number
PANABDCM30AC
UPC
074983115938
Manufacturer Part Number
ABDCM30-A-C
Manufacturer
Panduit
ABDCM30-A-C Cable Tie Mount, White, PA6.6, Rubber Adh, 1.12x1.12", PK100
MFG #ABDCM30-A-C
Product Description:
Panduit ABDCM30-A-C dynamic cable manager mounts provide panel strain relief during the opening and closing of electrical cabinet doors. Mounts are 1.12" x 1.12" (28.5 x 28.5 mm), mounted with rubber-based adhesive tape and are used with miniature, intermediate, and standard cable ties. The mounts are made of nylon 6.6, white in color and come in packages of 100.
HESCO Part Number
PANABDCM30AC
UPC
074983115938
Manufacturer Part Number
ABDCM30-A-C
Manufacturer
Panduit
$2.28 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- No
- Standards Met: RoHS Compliant
Packaging Details
| UPC | : | 07498311593 |
| GTIN Package | : | 00074983115938 |
| Standard Package Volume Ft3 | : | 0.0839 |
| Standard Package Weight Pounds | : | 0.9000 |
| Std Package Height In | : | 2.1 |
| Std Package Height MM | : | 53.34 |
| Std Package Length In | : | 10.55 |
| Std Package Length MM | : | 267.97 |
| Std Package Width In | : | 7.8 |
| Std Package Width MM | : | 198.12 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983115933 |
| Standard Carton Volume Ft3 | : | 0.4196 |
| Standard Carton Weight Pounds | : | 4.5000 |
| Std Carton Height In | : | 7.65 |
| Std Carton Height MM | : | 194.31 |
| Std Carton Length In | : | 11.1 |
| Std Carton Length MM | : | 281.94 |
| Std Carton Width In | : | 9.2 |
| Std Carton Width MM | : | 233.68 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| Country of Origin 2Digit | : | CR |
| EAN | : | 00074983115938 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 40.283433 |
| Pallet Weight | : | 432.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Environment | : | Indoor |
| Overall Length (In.) | : | 1.13 |
| Maximum Operating Temperature (°F) | : | 120 |
| Material | : | Nylon 6.6 |
| Product Type | : | Cable Tie Mount |
| Overall Height (In.) | : | 0.66 |
| Overall Height (mm) | : | 16.8 |
| Maximum Operating Temperature (°C) | : | 49 |
| Flammability Rating | : | UL94 V-2 Flammability Rating |
| Overall Length (mm) | : | 28.5 |
| Mount Method | : | Adhesive Tape |
| Minimum Loop Tensile Strength (lb) | : | 50 |
| Application | : | The Panduit dynamic cable manager is a reliable and cost-effective solution for securing cable bundles in control panels that have hinged access into the panel box, which also ensures continuity of the related systems in the physical infrastructure. These mounts are well suited for use with control panels featuring control lights, touch pads, and switches in the panel door. The unique mount allows the panel door to be easily opened and closed and extends the service life of the adhesive in applications where bundle movement is unavoidable. |
| Minimum Operating Temperature (°F) | : | -20 |
| Minimum Operating Temperature (°C) | : | -29 |
| Overall Width (mm) | : | 28.5 |
| Overall Width (In.) | : | 1.12 |
| For Use With | : | Miniature, Intermediate and Standard Cable Ties |
| Minimum Loop Tensile Strength (N) | : | 222 |
| Color | : | White |
Brochures
Brochures 1
Installation Documents
Installation Documents 1
Selection Guides
Selection Guides 1
Downloads
Specification Sheets
Part Drawings
Part Drawings 1
Brochures 1Installation Documents
Installation Documents 1Selection Guides
Selection Guides 1Downloads
Specification SheetsPart Drawings
Part Drawings 1- No
- Standards Met: RoHS Compliant
Packaging Details
UPC : 07498311593 GTIN Package : 00074983115938 Standard Package Volume Ft3 : 0.0839 Standard Package Weight Pounds : 0.9000 Std Package Height In : 2.1 Std Package Height MM : 53.34 Std Package Length In : 10.55 Std Package Length MM : 267.97 Std Package Width In : 7.8 Std Package Width MM : 198.12 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983115933 Standard Carton Volume Ft3 : 0.4196 Standard Carton Weight Pounds : 4.5000 Std Carton Height In : 7.65 Std Carton Height MM : 194.31 Std Carton Length In : 11.1 Std Carton Length MM : 281.94 Std Carton Width In : 9.2 Std Carton Width MM : 233.68 Std Ctn Qty : 500 Min. Order UOM : Piece Country of Origin 2Digit : CR EAN : 00074983115938 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 500.0000 Pallet Quantity : 48,000 Pallet Volume : 40.283433 Pallet Weight : 432.0000 RoHS Compliant : Compliant Specifications
Any Reason Not to Sell : N Product Segment : IEI Environment : Indoor Overall Length (In.) : 1.13 Maximum Operating Temperature (°F) : 120 Material : Nylon 6.6 Product Type : Cable Tie Mount Overall Height (In.) : 0.66 Overall Height (mm) : 16.8 Maximum Operating Temperature (°C) : 49 Flammability Rating : UL94 V-2 Flammability Rating Overall Length (mm) : 28.5 Mount Method : Adhesive Tape Minimum Loop Tensile Strength (lb) : 50 Application : The Panduit dynamic cable manager is a reliable and cost-effective solution for securing cable bundles in control panels that have hinged access into the panel box, which also ensures continuity of the related systems in the physical infrastructure. These mounts are well suited for use with control panels featuring control lights, touch pads, and switches in the panel door. The unique mount allows the panel door to be easily opened and closed and extends the service life of the adhesive in applications where bundle movement is unavoidable. Minimum Operating Temperature (°F) : -20 Minimum Operating Temperature (°C) : -29 Overall Width (mm) : 28.5 Overall Width (In.) : 1.12 For Use With : Miniature, Intermediate and Standard Cable Ties Minimum Loop Tensile Strength (N) : 222 Color : White - BrochuresBrochures 1
