ABM100-A-C Cable Tie Mount, White, PA 6.6, Rubber Adh., 1x1", PK100
MFG #ABM100-A-C
$1.24 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:

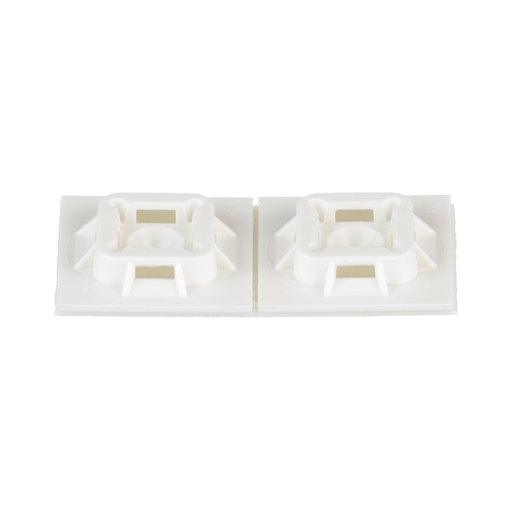

Panduit’s ABM100-A-C 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are intended for use in indoor environments. They are 1” x 1” (25.4mm x 25.4mm), has hole for standard S6 flat head screw, supplied in strips of 2, are white in color and come in packages of 100.
HESCO Part Number
PANABM100AC
UPC
074983281053
Manufacturer Part Number
ABM100-A-C
Manufacturer
Panduit
ABM100-A-C Cable Tie Mount, White, PA 6.6, Rubber Adh., 1x1", PK100
MFG #ABM100-A-C
Product Description:
Panduit’s ABM100-A-C 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are intended for use in indoor environments. They are 1” x 1” (25.4mm x 25.4mm), has hole for standard S6 flat head screw, supplied in strips of 2, are white in color and come in packages of 100.
HESCO Part Number
PANABM100AC
UPC
074983281053
Manufacturer Part Number
ABM100-A-C
Manufacturer
Panduit
$1.24 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Specifications
- Resources
Specifications
| Product Segment | : | IEI |
| Product Type | : | Cable Tie Mount |
| Application | : | Used with Miniature, Intermediate, and Standard Cables Ties |
| Color | : | White |
| Environment | : | Indoor |
| Material | : | Nylon 6.6 |
| Maximum Operating Temperature (°C) | : | 49 |
| Maximum Operating Temperature (°F) | : | 120 |
| Minimum Operating Temperature (°C) | : | -29 |
| Minimum Operating Temperature (°F) | : | -20 |
| Mount Method | : | Adhesive Tape |
| Mounting Hole Thread Size | : | #6 |
| Overall Length (In.) | : | 1 |
| Overall Length (mm) | : | 25.4 |
| Overall Width (mm) | : | 50.3 |
| Overall Width (In.) | : | 1 |
| Overall Height (In.) | : | 0.24 |
| Overall Height (mm) | : | 6.1 |
| Standards Met | : | RoHS Compliant |
| Static Load Capacity (lb) | : | 0.5 |
| Static Load Capacity (kg) | : | 0.227 |
| For Use With | : | Miniature, Intermediate, Standard Cross-Section Ties |
Packaging Details | ||
| UPC | : | 07498328105 |
| GTIN Package | : | 00074983281053 |
| Standard Package Volume Ft3 | : | 0.0334 |
| Standard Package Weight Pounds | : | 0.3700 |
| Std Package Height In | : | 1.95 |
| Std Package Height MM | : | 49.53 |
| Std Package Length In | : | 7.75 |
| Std Package Length MM | : | 196.85 |
| Std Package Width In | : | 6 |
| Std Package Width MM | : | 152.4 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983281058 |
| Standard Carton Volume Ft3 | : | 0.3338 |
| Standard Carton Weight Pounds | : | 3.7000 |
| Std Carton Height In | : | 7.05 |
| Std Carton Height MM | : | 179.07 |
| Std Carton Length In | : | 11 |
| Std Carton Length MM | : | 279.4 |
| Std Carton Width In | : | 9.1 |
| Std Carton Width MM | : | 231.14 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| Country of Origin 2Digit | : | US |
| RoHS Compliant | : | Compliant |
| EAN | : | 00074983281053 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 112,000 |
| Pallet Volume | : | 37.389793 |
| Pallet Weight | : | 414.4000 |
