ABM100-AT-C0 Cable Tie Mount, Black, UV PA6.6, Acrylic Adh., 1x1", PK100
MFG #ABM100-AT-C0
$1.46 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:

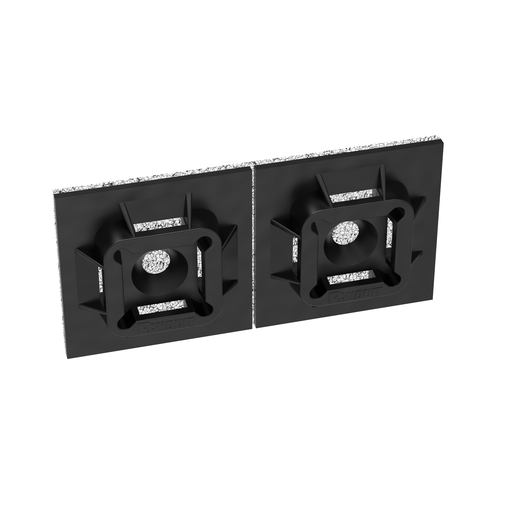

Panduit’s ABM100-AT-C0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for outdoor, high-temperature environments. They are 1" x 1" (25.4mm x 25.4mm), supplied in strips of 2, are black in color and come in packages of 100.
HESCO Part Number
PANABM100ATC0
UPC
074983281077
Manufacturer Part Number
ABM100-AT-C0
Manufacturer
Panduit
ABM100-AT-C0 Cable Tie Mount, Black, UV PA6.6, Acrylic Adh., 1x1", PK100
MFG #ABM100-AT-C0
Product Description:
Panduit’s ABM100-AT-C0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for outdoor, high-temperature environments. They are 1" x 1" (25.4mm x 25.4mm), supplied in strips of 2, are black in color and come in packages of 100.
HESCO Part Number
PANABM100ATC0
UPC
074983281077
Manufacturer Part Number
ABM100-AT-C0
Manufacturer
Panduit
$1.46 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Specifications
- Resources
Specifications
| Product Segment | : | IEI |
| Product Type | : | Cable Tie Mount |
| Application | : | Used with Miniature, Intermediate, and Standard Cables Ties |
| Color | : | Black |
| Environment | : | Indoor/Outdoor |
| Material | : | Nylon 6.6 |
| Maximum Operating Temperature (°C) | : | 82 |
| Maximum Operating Temperature (°F) | : | 180 |
| Minimum Operating Temperature (°F) | : | -20 |
| Minimum Operating Temperature (°C) | : | -29 |
| Mount Method | : | Adhesive Tape |
| Overall Height (In.) | : | 0.24 |
| Overall Height (mm) | : | 6.1 |
| Overall Length (mm) | : | 25.4 |
| Overall Length (In.) | : | 1 |
| Overall Width (mm) | : | 50.3 |
| Overall Width (In.) | : | 1 |
| Resistance Properties | : | UV-Resistant, Weather-Resistant |
| Standards Met | : | RoHS Compliant |
| Static Load Capacity (lb) | : | 0.5 |
| Static Load Capacity (kg) | : | 0.227 |
| For Use With | : | Miniature, Intermediate, Standard Cross-Section Ties |
Packaging Details | ||
| UPC | : | 07498328107 |
| GTIN Package | : | 00074983281077 |
| Standard Package Volume Ft3 | : | 0.0334 |
| Standard Package Weight Pounds | : | 0.3700 |
| Std Package Height In | : | 2.15 |
| Std Package Height MM | : | 54.61 |
| Std Package Length In | : | 8.25 |
| Std Package Length MM | : | 209.55 |
| Std Package Width In | : | 6 |
| Std Package Width MM | : | 152.4 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983281072 |
| Standard Carton Volume Ft3 | : | 0.3338 |
| Standard Carton Weight Pounds | : | 3.7000 |
| Std Carton Height In | : | 7.15 |
| Std Carton Height MM | : | 181.61 |
| Std Carton Length In | : | 10.95 |
| Std Carton Length MM | : | 278.13 |
| Std Carton Width In | : | 9.3 |
| Std Carton Width MM | : | 236.22 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| Country of Origin 2Digit | : | US |
| RoHS Compliant | : | Compliant |
| EAN | : | 00074983281077 |
| REACH Status | : | False |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | No |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500 |
| Pallet Quantity | : | 96,000 |
| Pallet Volume | : | 32.048394 |
| Pallet Weight | : | 355.2000 |
