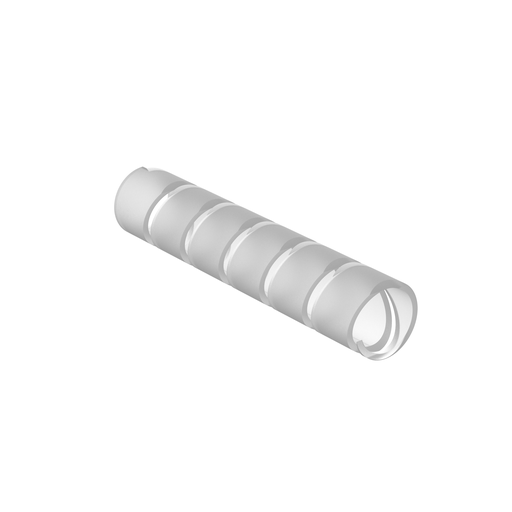

T100F-C Spiral Wrap, Natural, PE, 0.875" Min Dia., PK1
MFG #T100F-C
$300.25 / E
Each
Each
Product Description:
The T100F-C Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 1" (25.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.875" to 6" (22.2 mm to 152.4 mm). Color Natural.
HESCO Part Number
PANT100FC
UPC
074983705450
Manufacturer Part Number
T100F-C
Manufacturer
Panduit
T100F-C Spiral Wrap, Natural, PE, 0.875" Min Dia., PK1
MFG #T100F-C
Product Description:
The T100F-C Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 1" (25.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.875" to 6" (22.2 mm to 152.4 mm). Color Natural.
HESCO Part Number
PANT100FC
UPC
074983705450
Manufacturer Part Number
T100F-C
Manufacturer
Panduit
$300.25 / E
Each
Each
- Specifications
- Resources
Specifications
| Product Segment | : | IEI |
| Product Type | : | Spiral Wrap |
| Application | : | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Color | : | Natural |
| Environment | : | Indoor |
| Flammability Rating | : | UL94-HB |
| Material | : | Polyethylene |
| Resistance Properties | : | Abrasion-Resistant |
| Maximum Bundle Diameter (mm) | : | 152.4 |
| Maximum Bundle Diameter (In.) | : | 6 |
| Minimum Bundle Diameter (In.) | : | 0.875 |
| Minimum Bundle Diameter (mm) | : | 22.2 |
| Maximum Operating Temperature (°C) | : | 50 |
| Maximum Operating Temperature (°F) | : | 122 |
| Minimum Operating Temperature (°F) | : | -40 |
| Minimum Operating Temperature (°C) | : | -40 |
| Outer Diameter (In.) | : | 1 |
| Outer Diameter (mm) | : | 25.4 |
| Overall Length (m) | : | 30.5 |
| Overall Length (ft.) | : | 100 |
| Standards Met | : | UL Recognized - E141152; UL94HB |
| Wall Thickness (mm) | : | 1.78 |
| Wall Thickness (In.) | : | 0.07 |
Packaging Details | ||
| UPC | : | 07498370545 |
| GTIN Package | : | 00074983705450 |
| Standard Package Volume Ft3 | : | 2.4780 |
| Standard Package Weight Pounds | : | 11.6500 |
| Std Package Height In | : | 9.8 |
| Std Package Height MM | : | 248.92 |
| Std Package Length In | : | 21.75 |
| Std Package Length MM | : | 552.45 |
| Std Package Width In | : | 21.6 |
| Std Package Width MM | : | 548.64 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Min. Order UOM | : | Roll |
| Country of Origin 2Digit | : | US |
| RoHS Compliant | : | Compliant |
| EAN | : | 00074983705450 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1 |
| Pallet Quantity | : | 20 |
| Pallet Weight | : | 233.0000 |
Specifications
Product Segment : IEI Product Type : Spiral Wrap Application : Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing Color : Natural Environment : Indoor Flammability Rating : UL94-HB Material : Polyethylene Resistance Properties : Abrasion-Resistant Maximum Bundle Diameter (mm) : 152.4 Maximum Bundle Diameter (In.) : 6 Minimum Bundle Diameter (In.) : 0.875 Minimum Bundle Diameter (mm) : 22.2 Maximum Operating Temperature (°C) : 50 Maximum Operating Temperature (°F) : 122 Minimum Operating Temperature (°F) : -40 Minimum Operating Temperature (°C) : -40 Outer Diameter (In.) : 1 Outer Diameter (mm) : 25.4 Overall Length (m) : 30.5 Overall Length (ft.) : 100 Standards Met : UL Recognized - E141152; UL94HB Wall Thickness (mm) : 1.78 Wall Thickness (In.) : 0.07 Packaging Details
UPC : 07498370545 GTIN Package : 00074983705450 Standard Package Volume Ft3 : 2.4780 Standard Package Weight Pounds : 11.6500 Std Package Height In : 9.8 Std Package Height MM : 248.92 Std Package Length In : 21.75 Std Package Length MM : 552.45 Std Package Width In : 21.6 Std Package Width MM : 548.64 Std. Pkg. UOM : Roll UOM EA PK : EA Std. Pkg. Qty. : 1 Min. Order UOM : Roll Country of Origin 2Digit : US RoHS Compliant : Compliant EAN : 00074983705450 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1 Pallet Quantity : 20 Pallet Weight : 233.0000 - Product Bulletins
