Panduit
T100F-C0 Spiral Wrap, Black, UV PE, 0.875" Min Dia., PK1
MFG #T100F-C0
$400.63 / E
EACH
EACH
Product Description:

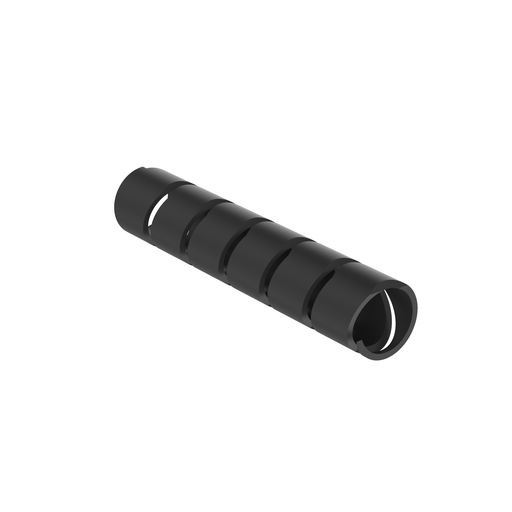

The T100F-C0 Weather Resistant Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 1" (25.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.875" to 6" (22.2 mm to 152.4 mm). Color Black.
HESCO Part Number
PANT100FC0
UPC
074983705467
Manufacturer Part Number
T100F-C0
Manufacturer
Panduit
Panduit
T100F-C0 Spiral Wrap, Black, UV PE, 0.875" Min Dia., PK1
MFG #T100F-C0
Product Description:
The T100F-C0 Weather Resistant Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 1" (25.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.875" to 6" (22.2 mm to 152.4 mm). Color Black.
HESCO Part Number
PANT100FC0
UPC
074983705467
Manufacturer Part Number
T100F-C0
Manufacturer
Panduit
$400.63 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: UL Recognized - E141152; UL94HB
- No
Packaging Details
| UPC | : | 07498370546 |
| GTIN Package | : | 00074983705467 |
| Standard Package Volume Ft3 | : | 2.4780 |
| Standard Package Weight Pounds | : | 11.7000 |
| Std Package Height In | : | 9.55 |
| Std Package Height MM | : | 242.57 |
| Std Package Length In | : | 21.55 |
| Std Package Length MM | : | 547.37 |
| Std Package Width In | : | 21.45 |
| Std Package Width MM | : | 544.83 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983705467 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 20 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 234.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Operating Temperature (°C) | : | 50 |
| Color | : | Black |
| Minimum Bundle Diameter (In.) | : | 0.875 |
| Outer Diameter (In.) | : | 1 |
| Overall Length (m) | : | 30.48 |
| Minimum Bundle Diameter (mm) | : | 22.2 |
| Minimum Operating Temperature (°F) | : | -40 |
| Wall Thickness (mm) | : | 1.8 |
| Application | : | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Product Type | : | Spiral Wrap |
| Resistance Properties | : | Abrasion-Resistant, Weather-Resistant |
| Environment | : | Indoor and Outdoor |
| Outer Diameter (mm) | : | 25.4 |
| Wall Thickness (In.) | : | 0.07 |
| Maximum Operating Temperature (°F) | : | 122 |
| Material | : | Polyethylene |
| Flammability Rating | : | UL94-HB |
| Maximum Bundle Diameter (In.) | : | 6 |
| Overall Length (ft.) | : | 100 |
| Maximum Bundle Diameter (mm) | : | 152.4 |
| Minimum Operating Temperature (°C) | : | -40 |
Videos 1
- Standards Met: UL Recognized - E141152; UL94HB
- No
Packaging Details
UPC : 07498370546 GTIN Package : 00074983705467 Standard Package Volume Ft3 : 2.4780 Standard Package Weight Pounds : 11.7000 Std Package Height In : 9.55 Std Package Height MM : 242.57 Std Package Length In : 21.55 Std Package Length MM : 547.37 Std Package Width In : 21.45 Std Package Width MM : 544.83 Std. Pkg. UOM : Roll UOM EA PK : EA Std. Pkg. Qty. : 1 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Roll EAN : 00074983705467 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 20 Pallet Volume : 0.000000 Pallet Weight : 234.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Maximum Operating Temperature (°C) : 50 Color : Black Minimum Bundle Diameter (In.) : 0.875 Outer Diameter (In.) : 1 Overall Length (m) : 30.48 Minimum Bundle Diameter (mm) : 22.2 Minimum Operating Temperature (°F) : -40 Wall Thickness (mm) : 1.8 Application : Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing Product Type : Spiral Wrap Resistance Properties : Abrasion-Resistant, Weather-Resistant Environment : Indoor and Outdoor Outer Diameter (mm) : 25.4 Wall Thickness (In.) : 0.07 Maximum Operating Temperature (°F) : 122 Material : Polyethylene Flammability Rating : UL94-HB Maximum Bundle Diameter (In.) : 6 Overall Length (ft.) : 100 Maximum Bundle Diameter (mm) : 152.4 Minimum Operating Temperature (°C) : -40 - Part Drawings
