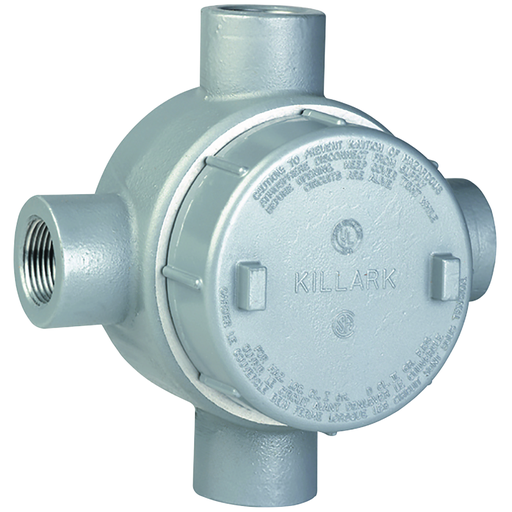

1" GES Outlet Body X Type, Iron
MFG #GESXT-3M
$236.36 / E
Each
Each
Product Description:
1" GES Outlet Body X Type, Iron
HESCO Part Number
KILGESXT3M
UPC
783936211459
Manufacturer Part Number
GESXT-3M
Manufacturer
Killark
1" GES Outlet Body X Type, Iron
MFG #GESXT-3M
Product Description:
1" GES Outlet Body X Type, Iron
HESCO Part Number
KILGESXT3M
UPC
783936211459
Manufacturer Part Number
GESXT-3M
Manufacturer
Killark
$236.36 / E
Each
Each
- Features
- Specifications
- Resources
- Water shedding cover – suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Covers furnished with boxes.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: GES Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Specifications
| Buy American Compliant | : | Contact Manufacturer |
| Country of Origin | : | MX |
| Dimensions | : | 8.13 in x 5.81 in x 6.75 in |
| Each - Width | : | 5.810 in |
| Hazardous Rating(s) | : | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA |
| Height | : | 6.75 in |
| Hub Size | : | 1" |
| Application | : | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Color | : | Gray |
| Length | : | 8.13 in |
| Size | : | 8.13 in x 5.81 in x 6.75 in |
| Special Features | : | GE conduit outlet boxes have: GES Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal |
| Type | : | Outlet Body With Cover |
| Width | : | 5.81 in |
| Finish Type | : | Powder Epoxy Paint |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D30 |
| Description - Invoice | : | 1 IN IRON OUTLET BODY X TYPE 3- |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 7307199060 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 49 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D30D237 |
| CSA File Number | : | LR11716 |
| Gross Weight with Packaging | : | 8 |
| Hub Pattern | : | X |
| UL File Number | : | E10514 |
| Material | : | Iron |
| Series | : | GE |
| Base Unit of Measure | : | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936211459 |
| Master Pack Description | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- Water shedding cover – suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Covers furnished with boxes.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: GES Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Specifications
Buy American Compliant : Contact Manufacturer Country of Origin : MX Dimensions : 8.13 in x 5.81 in x 6.75 in Each - Width : 5.810 in Hazardous Rating(s) : Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA Height : 6.75 in Hub Size : 1" Application : Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. Color : Gray Length : 8.13 in Size : 8.13 in x 5.81 in x 6.75 in Special Features : GE conduit outlet boxes have: GES Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal Type : Outlet Body With Cover Width : 5.81 in Finish Type : Powder Epoxy Paint ARRA Compliant : Contact Manufacturer Class Code : D30 Description - Invoice : 1 IN IRON OUTLET BODY X TYPE 3- Freight Class Code : 06316009 Harmonization Code : 7307199060 Image Actual Or Representative : R Lead Time : 49 wk MSDS Flag : No Order Multiple : 1 EA Returnable Indicator : Yes Sub Class Code : D30D237 CSA File Number : LR11716 Gross Weight with Packaging : 8 Hub Pattern : X UL File Number : E10514 Material : Iron Series : GE Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00783936211459 Master Pack Description : Each Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
Spec Sheet
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCertification Document Asset ReferenceCustomer Notices Asset ReferenceInstallation Manuals Asset ReferenceSales Drawing Asset ReferenceGESXT-3M Engineering Drawing
