Allen-Bradley

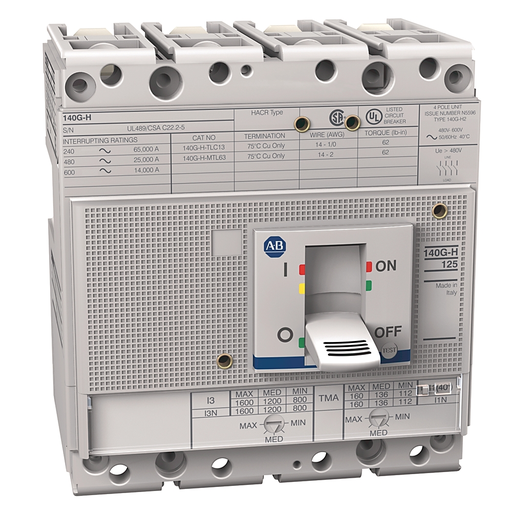

125A H Frame Molded Case Ckt-Bkr (140G-H2F4-C90)
MFG #140G-H2F4-C90
$1,254.89 / E
EACH
EACH
Product Description:
140G - Molded Case Circuit Breaker, H frame, 25 kA Interrupt Rating, T/M - Thermal Magnetic, 4 Poles, Rated Current 90 A
HESCO Part Number
AB140GH2F4C90
UPC
887172402968
Manufacturer Part Number
140G-H2F4-C90
Manufacturer
Allen-Bradley
Allen-Bradley
125A H Frame Molded Case Ckt-Bkr (140G-H2F4-C90)
MFG #140G-H2F4-C90
Product Description:
140G - Molded Case Circuit Breaker, H frame, 25 kA Interrupt Rating, T/M - Thermal Magnetic, 4 Poles, Rated Current 90 A
HESCO Part Number
AB140GH2F4C90
UPC
887172402968
Manufacturer Part Number
140G-H2F4-C90
Manufacturer
Allen-Bradley
$1,254.89 / E
EACH
EACH
- Features
- Specifications
- Resources
- UKCA DOC
- IP40 degree of protection
- 82.5 mm
- Built-in device fixed built-in technique
- 8000 @ 415V AC electrical life cycle
- 125 A frame size
- 130 mm height
- Rated 1000V per IEC insulation voltage
- 65kA @ 240V AC, 50/60 Hz per NEMA, UL, CSA
Power Electrical Characteristics
| Electrical life cycle | : | 8000 @ 415V AC |
| Frame size | : | 125 A |
| Interrupting rating | : | 65kA @ 240V AC, 50/60 Hz per NEMA, UL, CSA |
| Motor drive integrated | : | false |
| Motor drive optional | : | true |
| Number of poles | : | 4 |
| Protection type | : | T/M-adjustable thermal/adjustable magnetic TMA |
| Rated permanent current Iu | : | 90 A |
| Thermal trip rating, max | : | 90 A @ ambient temperature 40 °C |
| Type of control element | : | Toggle |
| Watt loss | : | Thermal magnetic type: 26.2 W |
| With switched-off indicator | : | false |
Construction | ||
| Device construction | : | Built-in device fixed built-in technique |
Mechanical | ||
| Mechanical life operations | : | 25000 /h |
| Shock | : | Peak acceleration: 150 m/s² peak, pulse duration 11 ms |
| Vibration | : | 2.13.2 Hz ±1 mm, 13.2.100 Hz ±0.7 G |
| Weight | : | 3.53 lb |
Standards Protection | ||
| Storage temperature | : | -40 °F |
| Wire temperature rating | : | Cu 75 °C |
Overview | ||
| Standard Warranty Duration | : | 1 year |
Specifications | ||
| Build America, Buy America | : | No |
| Repair Options Available | : | No |
| Degree of protection | : | IP40 |
| Depth | : | 82.5 mm |
| Height | : | 130 mm |
| Insulation voltage | : | Rated 1000V per IEC |
| Magnetic trip current | : | 450 to 900 A |
| Operational voltage | : | 90% of voltage rating @ 3000 m (9840 ft) altitude |
| Rated uninterrupted current | : | 98% of current rating @ 3000 m (9840 ft) altitude |
| Thermal trip current | : | 63 to 90 A |
| Width | : | 120 mm |
| Country of Origin | : | Italy |
- UKCA DOC
- IP40 degree of protection
- 82.5 mm
- Built-in device fixed built-in technique
- 8000 @ 415V AC electrical life cycle
- 125 A frame size
- 130 mm height
- Rated 1000V per IEC insulation voltage
- 65kA @ 240V AC, 50/60 Hz per NEMA, UL, CSA
Power Electrical Characteristics
Electrical life cycle : 8000 @ 415V AC Frame size : 125 A Interrupting rating : 65kA @ 240V AC, 50/60 Hz per NEMA, UL, CSA Motor drive integrated : false Motor drive optional : true Number of poles : 4 Protection type : T/M-adjustable thermal/adjustable magnetic TMA Rated permanent current Iu : 90 A Thermal trip rating, max : 90 A @ ambient temperature 40 °C Type of control element : Toggle Watt loss : Thermal magnetic type: 26.2 W With switched-off indicator : false Construction
Device construction : Built-in device fixed built-in technique Mechanical
Mechanical life operations : 25000 /h Shock : Peak acceleration: 150 m/s² peak, pulse duration 11 ms Vibration : 2.13.2 Hz ±1 mm, 13.2.100 Hz ±0.7 G Weight : 3.53 lb Standards Protection
Storage temperature : -40 °F Wire temperature rating : Cu 75 °C Overview
Standard Warranty Duration : 1 year Specifications
Build America, Buy America : No Repair Options Available : No Degree of protection : IP40 Depth : 82.5 mm Height : 130 mm Insulation voltage : Rated 1000V per IEC Magnetic trip current : 450 to 900 A Operational voltage : 90% of voltage rating @ 3000 m (9840 ft) altitude Rated uninterrupted current : 98% of current rating @ 3000 m (9840 ft) altitude Thermal trip current : 63 to 90 A Width : 120 mm Country of Origin : Italy - Downloads
Spec SheetInstallation InstructionsGeneralData Sheet 1Data Sheet 2
