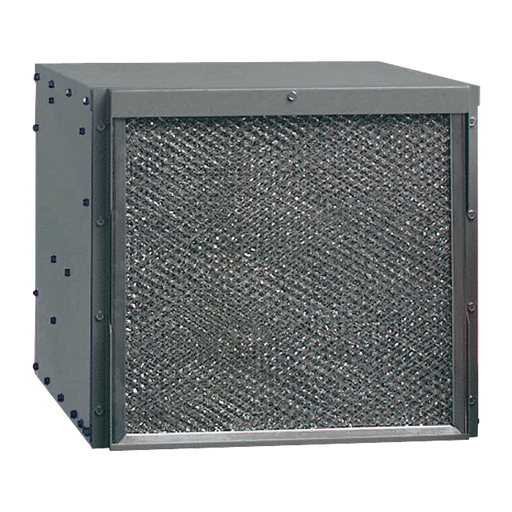

Genesis Top-Mount Indoor, HB16 8000BTU 460V, Gray, Steel
MFG #HB160846G040
$10,156.00Â /Â E
Each
Each
Product Description:
Genesis Top-Mount Indoor Air Conditioners designed for top mounting to maximize mounting space. This Genesis Top-Mount Indoor, HB160846G040 item is rated for HB16 8000BTU 460V with a material of Steel colored Gray.
HESCO Part Number
HFHB160846G040
UPC
783510218027
Manufacturer Part Number
HB160846G040
Manufacturer
Hoffman
Genesis Top-Mount Indoor, HB16 8000BTU 460V, Gray, Steel
MFG #HB160846G040
Product Description:
Genesis Top-Mount Indoor Air Conditioners designed for top mounting to maximize mounting space. This Genesis Top-Mount Indoor, HB160846G040 item is rated for HB16 8000BTU 460V with a material of Steel colored Gray.
HESCO Part Number
HFHB160846G040
UPC
783510218027
Manufacturer Part Number
HB160846G040
Manufacturer
Hoffman
$10,156.00Â /Â E
Each
Each
- Features
- Specifications
- Resources
- R134a and R407c refrigerant
- Models for 115, 230 and 460 single-phase VAC power input
- Operating temperature range from 50 F/10 C to 125 F/52 C
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Length | :Â Â | 28.25 inch |
Width | :Â Â | 20.75 inch |
Height | :Â Â | 16.25 inch |
Weight | :Â Â | 154.00 pound |
Height (H) (inch) | :Â Â | 15.25 |
Height (H) (millimetre) | :Â Â | 387 |
Width (W) (inch) | :Â Â | 17 |
Width (W) (millimetre) | :Â Â | 432 |
Depth (D) (inch) | :Â Â | 25.19 |
Depth (D) (millimetre) | :Â Â | 640 |
Material | :Â Â | Mild Steel |
Nominal Voltage (volt) | :Â Â | 460 |
Number of Phases | :Â Â | 1 |
Nominal Capacity Watts (watt) | :Â Â | 2,344 |
Nominal Capacity Btu/h (British thermal unit per hour) | :Â Â | 8,000 |
Protection Rating | :Â Â | NEMA Type 12 |
Operating Temperature (degree Fahrenheit) | :Â Â | 50-125.00 |
Operating Temperature (degree Celsius) | :Â Â | 10-52.00 |
Max Current (ampere) | :Â Â | 4.7 |
Remote Access Control | :Â Â | No |
Product Family | :Â Â | Genesis |
Finish | :Â Â | Powder Coated |
Color | :Â Â | Traffic Gray |
Color Code | :Â Â | RAL 7042 |
Thickness (T) (gauge) | :Â Â | 18 |
Thickness (T) (millimetre) | :Â Â | 1.21 |
Mechanical Advantage | :Â Â | Mild steel sheet metal standard |
NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
Weight (pound) | :Â Â | 154 |
Sub Brand | :Â Â | Genesis |
Voltage Rating | :Â Â | 400 - 460 VAC |
Certificate
Declaration of Conformity Declaration of Conformity NAM-US English CE-UKCA-00125_AC-Genesis
Declaration of Conformity Declaration of Conformity NAM-CA English CE-UKCA-00125_AC-Genesis
Declaration of Conformity Declaration of Conformity EMEA-EUR English CE-UKCA-00125_AC-Genesis
Instruction Manual
Genesis Top-Mount Indoor HB16 Instruction Manual NAM-US English 10-1008-06
Genesis Top-Mount Indoor HB16 Instruction Manual NAM-CA English 10-1008-06
Genesis Top-Mount Indoor HB16 Instruction Manual EMEA-EUR English 10-1008-06
Data Sheet
Genesis Top-Mount Indoor Spec Sheet NAM-CA English Spec-00613
Genesis Top-Mount Indoor Spec Sheet EMEA-EUR English Spec-00613
Downloads
Spec Sheet
![](https://d2ah3pjq0318q7.cloudfront.net/userfiles/images/mimetypeicons/pdfimg.png)
![](https://d2ah3pjq0318q7.cloudfront.net/userfiles/images/mimetypeicons/pdfimg.png)
![](https://d2ah3pjq0318q7.cloudfront.net/userfiles/images/mimetypeicons/pdfimg.png)
Instruction Manual
![](https://d2ah3pjq0318q7.cloudfront.net/userfiles/images/mimetypeicons/pdfimg.png)
![](https://d2ah3pjq0318q7.cloudfront.net/userfiles/images/mimetypeicons/pdfimg.png)
![](https://d2ah3pjq0318q7.cloudfront.net/userfiles/images/mimetypeicons/pdfimg.png)
Data Sheet
![](https://d2ah3pjq0318q7.cloudfront.net/userfiles/images/mimetypeicons/pdfimg.png)
![](https://d2ah3pjq0318q7.cloudfront.net/userfiles/images/mimetypeicons/pdfimg.png)
Downloads
![](https://d2ah3pjq0318q7.cloudfront.net/userfiles/images/mimetypeicons/pdfimg.png)
- R134a and R407c refrigerant
- Models for 115, 230 and 460 single-phase VAC power input
- Operating temperature range from 50 F/10 C to 125 F/52 C
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Length :Â Â 28.25 inch Width :Â Â 20.75 inch Height :Â Â 16.25 inch Weight :Â Â 154.00 pound Height (H) (inch) :Â Â 15.25 Height (H) (millimetre) :Â Â 387 Width (W) (inch) :Â Â 17 Width (W) (millimetre) :Â Â 432 Depth (D) (inch) :Â Â 25.19 Depth (D) (millimetre) :Â Â 640 Material :Â Â Mild Steel Nominal Voltage (volt) :Â Â 460 Number of Phases :Â Â 1 Nominal Capacity Watts (watt) :Â Â 2,344 Nominal Capacity Btu/h (British thermal unit per hour) :Â Â 8,000 Protection Rating :Â Â NEMA Type 12 Operating Temperature (degree Fahrenheit) :Â Â 50-125.00 Operating Temperature (degree Celsius) :Â Â 10-52.00 Max Current (ampere) :Â Â 4.7 Remote Access Control :Â Â No Product Family :Â Â Genesis Finish :Â Â Powder Coated Color :Â Â Traffic Gray Color Code :Â Â RAL 7042 Thickness (T) (gauge) :Â Â 18 Thickness (T) (millimetre) :Â Â 1.21 Mechanical Advantage :Â Â Mild steel sheet metal standard NEMA Rating :Â Â 12 Indoor, dust-resistant Weight (pound) :Â Â 154 Sub Brand :Â Â Genesis Voltage Rating :Â Â 400 - 460 VAC - Certificate
Declaration of Conformity Declaration of Conformity NAM-US English CE-UKCA-00125_AC-Genesis
Declaration of Conformity Declaration of Conformity NAM-CA English CE-UKCA-00125_AC-Genesis
Declaration of Conformity Declaration of Conformity EMEA-EUR English CE-UKCA-00125_AC-Genesis
Instruction ManualGenesis Top-Mount Indoor HB16 Instruction Manual NAM-US English 10-1008-06
Genesis Top-Mount Indoor HB16 Instruction Manual NAM-CA English 10-1008-06
Genesis Top-Mount Indoor HB16 Instruction Manual EMEA-EUR English 10-1008-06
Data SheetGenesis Top-Mount Indoor Spec Sheet NAM-CA English Spec-00613
Genesis Top-Mount Indoor Spec Sheet EMEA-EUR English Spec-00613
