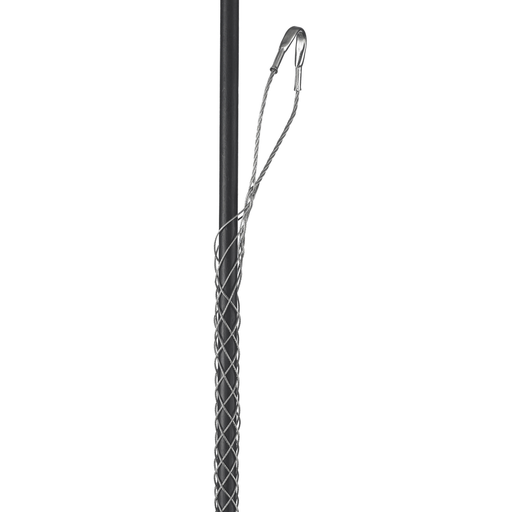

Support Grips, Offset Eye, Single Weave, Closed Mesh, Tin-Coated Bronze, 0.75-0.99"
MFG #02201039
$53.90Â /Â E
Each
Each
Product Description:
Support Grips, Offset Eye, Single Weave, Closed Mesh, Tin-Coated Bronze, 0.75-0.99"
HESCO Part Number
HUB02201039
UPC
783585301310
Manufacturer Part Number
02201039
Manufacturer
Hubbell Wiring Device
Support Grips, Offset Eye, Single Weave, Closed Mesh, Tin-Coated Bronze, 0.75-0.99"
MFG #02201039
Product Description:
Support Grips, Offset Eye, Single Weave, Closed Mesh, Tin-Coated Bronze, 0.75-0.99"
HESCO Part Number
HUB02201039
UPC
783585301310
Manufacturer Part Number
02201039
Manufacturer
Hubbell Wiring Device
$53.90Â /Â E
Each
Each
- Features
- Specifications
- Resources
- Offset eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Closed Mesh
Specifications
| Country of Origin | :Â Â | China |
| Approx Breaking Strength | :Â Â | 950 lb. |
| Cable Diameter Range | :Â Â | 0.75 in-0.99 in |
| Width | :Â Â | 2.030 in |
| Each - Width | :Â Â | 2.030 in |
| Industry Standard(s) | :Â Â | CSA Certified |
| Performance | :Â Â | Mechanical - Approximate Breaking Strength - 950 (4,226);Mechanical - Working Load - 95 (422.6) Lbs. (N) |
| Standards - RoHS Compliance Status | :Â Â | CM |
| Application | :Â Â | Offset Eye |
| Cable Size | :Â Â | .75"-.99" (1.90-2.51) |
| Special Features | :Â Â | Closed Mesh |
| Standard | :Â Â | CSA Certified |
| Type | :Â Â | Offset Eye |
| Style | :Â Â | Closed Mesh, Single Weave |
| Class Code | :Â Â | A52 |
| Description - Invoice | :Â Â | OFF EYE, SUP GRIP, .75-.99"; GALV, CLS |
| Freight Class Code | :Â Â | 06168002 |
| Harmonization Code | :Â Â | 7419805050 |
| Image Actual Or Representative | :Â Â | A |
| MSDS Flag | :Â Â | No |
| Sub Class Code | :Â Â | A52A480 |
| Material - Mounting Hardware | :Â Â | Screw Hook or Beam Clamp |
| Construction | :Â Â | Woven |
| Material | :Â Â | Bronze, Tin Coated |
| Series | :Â Â | Standard Duty |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 0.200x21.300x4.100 (in) |
| Carton - Gross Weight per Pack | :Â Â | 0.8 lb. |
| Carton - Number of Sub Packs | :Â Â | 5 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 783585301310 |
| Carton - Total Units | :Â Â | 5 EA |
| Case Weight | :Â Â | 29.450 lb. |
| Each - Pack Description | :Â Â | Each |
| Lowest Level UOM | :Â Â | Each |
| Pallet - GTIN - Package | :Â Â | 70783585301319 |
| Pallet Height | :Â Â | 41.000 in |
| Pallet Length | :Â Â | 48.000 in |
| Pallet Weight | :Â Â | 589.000 lb. |
| Pallet Width | :Â Â | 40.000 in |
Certifications | ||
| EU RoHS Indicator | :Â Â | Yes |
- Offset eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Closed Mesh
Specifications
Country of Origin :Â Â China Approx Breaking Strength :Â Â 950 lb. Cable Diameter Range :Â Â 0.75 in-0.99 in Width :Â Â 2.030 in Each - Width :Â Â 2.030 in Industry Standard(s) :Â Â CSA Certified Performance :Â Â Mechanical - Approximate Breaking Strength - 950 (4,226);Mechanical - Working Load - 95 (422.6) Lbs. (N) Standards - RoHS Compliance Status :Â Â CM Application :Â Â Offset Eye Cable Size :Â Â .75"-.99" (1.90-2.51) Special Features :Â Â Closed Mesh Standard :Â Â CSA Certified Type :Â Â Offset Eye Style :Â Â Closed Mesh, Single Weave Class Code :Â Â A52 Description - Invoice :Â Â OFF EYE, SUP GRIP, .75-.99"; GALV, CLS Freight Class Code :Â Â 06168002 Harmonization Code :Â Â 7419805050 Image Actual Or Representative :Â Â A MSDS Flag :Â Â No Sub Class Code :Â Â A52A480 Material - Mounting Hardware :Â Â Screw Hook or Beam Clamp Construction :Â Â Woven Material :Â Â Bronze, Tin Coated Series :Â Â Standard Duty Base Unit of Measure :Â Â EA BOX SIZE :Â Â 0.200x21.300x4.100 (in) Carton - Gross Weight per Pack :Â Â 0.8 lb. Carton - Number of Sub Packs :Â Â 5 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 783585301310 Carton - Total Units :Â Â 5 EA Case Weight :Â Â 29.450 lb. Each - Pack Description :Â Â Each Lowest Level UOM :Â Â Each Pallet - GTIN - Package :Â Â 70783585301319 Pallet Height :Â Â 41.000 in Pallet Length :Â Â 48.000 in Pallet Weight :Â Â 589.000 lb. Pallet Width :Â Â 40.000 in Certifications
EU RoHS Indicator :Â Â Yes - Downloads
