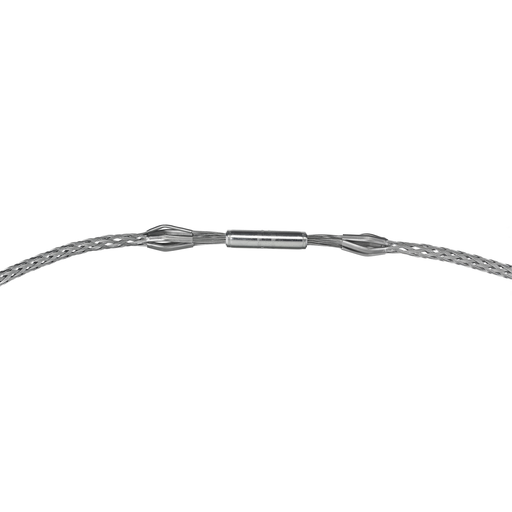

Kellems Wire Management, Splicing Grips, Rotating Wire Rope Splicing, .56-.63"
MFG #03317002
$727.00Â /Â E
EACH
EACH
Product Description:
Kellems Wire Management, Splicing Grips, Rotating Wire Rope Splicing, .56-.63"
HESCO Part Number
HUB03317002
UPC
783585317229
Manufacturer Part Number
03317002
Manufacturer
Hubbell Wiring Device
Kellems Wire Management, Splicing Grips, Rotating Wire Rope Splicing, .56-.63"
MFG #03317002
Product Description:
Kellems Wire Management, Splicing Grips, Rotating Wire Rope Splicing, .56-.63"
HESCO Part Number
HUB03317002
UPC
783585317229
Manufacturer Part Number
03317002
Manufacturer
Hubbell Wiring Device
$727.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Galvanized steel meshs contructed in triple, double and single weave
- Rotating barrel helps eliminate twist in old rope being transferred to new rope
- Shoulders: Aluminum, Bushing: Steel, Lug: Steel, Tube: Steel, Swivel: Steel, Tag: Mylar
Specifications
| Approx Breaking Strength | :Â Â | 7,500 lb. |
| Cable Diameter Range | :Â Â | 0.56 in-0.63 in |
| Country of Origin | :Â Â | US |
| Width | :Â Â | 1.500 in |
| Each - Width | :Â Â | 1.500 in |
| Industry Standard(s) | :Â Â | CSA Certified |
| Performance | :Â Â | Mechanical - Approximate Breaking Strength - 7,500 (33,360);Mechanical - Approximate Strength of Grip per Foot - 5.83 (1.78);Mechanical - Barrel Dimensions - 4.25" (10.79) x 1.00" (2.54);Mechanical - Working Load - (program formula 5% of Approximate Breaking Strength) |
| Application | :Â Â | Wire Rope Splicing |
| Color | :Â Â | Metallic |
| Environmental Conditions | :Â Â | No Limitations |
| Number of Conductors | :Â Â | 1 |
| Special Features | :Â Â | Shoulders: Aluminum, Bushing: Steel, Lug: Steel, Tube: Steel, Swivel: Steel, Tag: Mylar |
| Standard | :Â Â | CSA Certified |
| Type | :Â Â | Rotating Wire Rope |
| Cable Size | :Â Â | 0.56"-0.63" (1.43-1.59) |
| Display Size | :Â Â | Standard Sized Product |
| Number Of Conductors | :Â Â | 1 |
| Style | :Â Â | Closed Mesh, Triple, Double, Single Weave |
| Class Code | :Â Â | A52 |
| Description - Invoice | :Â Â | ROT WIRE ROPE SPLICE, .56-.63" |
| Freight Class Code | :Â Â | 06168002 |
| Harmonization Code | :Â Â | 7326200699 |
| Image Actual Or Representative | :Â Â | A |
| MSDS Flag | :Â Â | No |
| Sub Class Code | :Â Â | A52A480 |
| Material - Mounting Hardware | :Â Â | On Cable Ends |
| Material | :Â Â | Steel, Galvanized |
| Series | :Â Â | Wire Rope Grips |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 13.400x24.300x16.500 (in) |
| Carton - Gross Weight per Pack | :Â Â | 14.600 lb. |
| Carton - Number of Sub Packs | :Â Â | 6 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00783585317229 |
| Carton - Total Units | :Â Â | 6 |
| Case Weight | :Â Â | 14.600 lb. |
| Each - Pack Description | :Â Â | Each |
| Lowest Level UOM | :Â Â | Each |
Certifications | ||
| EU RoHS Indicator | :Â Â | Yes |
- Galvanized steel meshs contructed in triple, double and single weave
- Rotating barrel helps eliminate twist in old rope being transferred to new rope
- Shoulders: Aluminum, Bushing: Steel, Lug: Steel, Tube: Steel, Swivel: Steel, Tag: Mylar
Specifications
Approx Breaking Strength :Â Â 7,500 lb. Cable Diameter Range :Â Â 0.56 in-0.63 in Country of Origin :Â Â US Width :Â Â 1.500 in Each - Width :Â Â 1.500 in Industry Standard(s) :Â Â CSA Certified Performance :Â Â Mechanical - Approximate Breaking Strength - 7,500 (33,360);Mechanical - Approximate Strength of Grip per Foot - 5.83 (1.78);Mechanical - Barrel Dimensions - 4.25" (10.79) x 1.00" (2.54);Mechanical - Working Load - (program formula 5% of Approximate Breaking Strength) Application :Â Â Wire Rope Splicing Color :Â Â Metallic Environmental Conditions :Â Â No Limitations Number of Conductors :Â Â 1 Special Features :Â Â Shoulders: Aluminum, Bushing: Steel, Lug: Steel, Tube: Steel, Swivel: Steel, Tag: Mylar Standard :Â Â CSA Certified Type :Â Â Rotating Wire Rope Cable Size :Â Â 0.56"-0.63" (1.43-1.59) Display Size :Â Â Standard Sized Product Number Of Conductors :Â Â 1 Style :Â Â Closed Mesh, Triple, Double, Single Weave Class Code :Â Â A52 Description - Invoice :Â Â ROT WIRE ROPE SPLICE, .56-.63" Freight Class Code :Â Â 06168002 Harmonization Code :Â Â 7326200699 Image Actual Or Representative :Â Â A MSDS Flag :Â Â No Sub Class Code :Â Â A52A480 Material - Mounting Hardware :Â Â On Cable Ends Material :Â Â Steel, Galvanized Series :Â Â Wire Rope Grips Base Unit of Measure :Â Â EA BOX SIZE :Â Â 13.400x24.300x16.500 (in) Carton - Gross Weight per Pack :Â Â 14.600 lb. Carton - Number of Sub Packs :Â Â 6 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00783585317229 Carton - Total Units :Â Â 6 Case Weight :Â Â 14.600 lb. Each - Pack Description :Â Â Each Lowest Level UOM :Â Â Each Certifications
EU RoHS Indicator :Â Â Yes - Downloads
