Killark

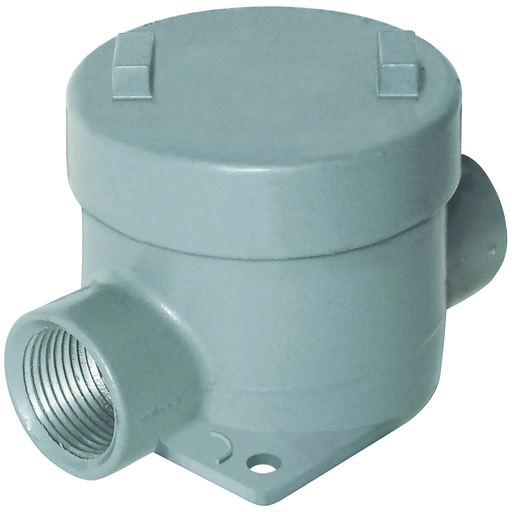

1-1/2" GEB Outlet Body, C Type, Aluminum
MFG #GEBC-5
$248.53 / E
EACH
EACH
Product Description:
1-1/2" GEB Outlet Body, C Type, Aluminum
HESCO Part Number
KILGEBC5
UPC
783936114736
Manufacturer Part Number
GEBC-5
Manufacturer
Killark
Killark
1-1/2" GEB Outlet Body, C Type, Aluminum
MFG #GEBC-5
Product Description:
1-1/2" GEB Outlet Body, C Type, Aluminum
HESCO Part Number
KILGEBC5
UPC
783936114736
Manufacturer Part Number
GEBC-5
Manufacturer
Killark
$248.53 / E
EACH
EACH
- Features
- Specifications
- Resources
- Suitable for NEMA 4X applications
- Integral mounting lugs
- Green ground screw standard
- External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling
- Taper threaded hubs provide ground continuity
- External threaded body for additional wiring room
- Includes cover and gasket
- Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre
Specifications
| Country of Origin | : | MX |
| Dimensions | : | 10.31 in x 8.38 in x 4.13 in |
| Each - Width | : | 8.380 in |
| Hazardous Rating(s) | : | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Height | : | 4.13 in |
| Hub Size | : | 1-1/2" |
| Application | : | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Color | : | Gray |
| Length | : | 10.31 in |
| Size | : | 10.31 in x 8.38 in x 4.13 in |
| Special Features | : | Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre |
| Type | : | Outlet Body With Cover |
| Width | : | 8.38 in |
| Finish Type | : | Powder Epoxy Paint |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D30 |
| Description - Invoice | : | OUTLET BODY 1-1/2" AL C-TYPE |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 7609000000 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 49 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D30D237 |
| CSA File Number | : | LR11716 |
| Gross Weight with Packaging | : | 2.8 |
| Hub Pattern | : | C |
| UL File Number | : | E10514 |
| Material | : | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | : | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936114736 |
| Master Pack Description | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- Suitable for NEMA 4X applications
- Integral mounting lugs
- Green ground screw standard
- External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling
- Taper threaded hubs provide ground continuity
- External threaded body for additional wiring room
- Includes cover and gasket
- Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre
Specifications
Country of Origin : MX Dimensions : 10.31 in x 8.38 in x 4.13 in Each - Width : 8.380 in Hazardous Rating(s) : Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 Height : 4.13 in Hub Size : 1-1/2" Application : Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. Color : Gray Length : 10.31 in Size : 10.31 in x 8.38 in x 4.13 in Special Features : Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre Type : Outlet Body With Cover Width : 8.38 in Finish Type : Powder Epoxy Paint ARRA Compliant : Contact Manufacturer Class Code : D30 Description - Invoice : OUTLET BODY 1-1/2" AL C-TYPE Freight Class Code : 06316009 Harmonization Code : 7609000000 Image Actual Or Representative : R Lead Time : 49 wk MSDS Flag : No Order Multiple : 1 EA Returnable Indicator : Yes Sub Class Code : D30D237 CSA File Number : LR11716 Gross Weight with Packaging : 2.8 Hub Pattern : C UL File Number : E10514 Material : Aluminum, Copper Free (less than 4/10 of 1%) Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00783936114736 Master Pack Description : Each Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
Spec Sheet
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCertification Document Asset Reference 1Certification Document Asset Reference 2Customer Notices Asset ReferenceInstallation Manuals Asset ReferenceSales Drawing Asset ReferenceGEBC-5 Engineering Drawing
