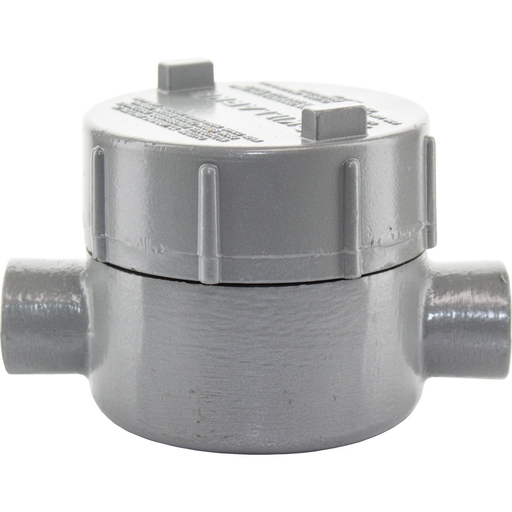

1" GEC Outlet Body C-Type, Aluminum
MFG #GECCT-3
$134.24 / E
Each
Each
Product Description:
1" GEC Outlet Body C-Type, Aluminum
HESCO Part Number
KILGECCT3
UPC
783936210049
Manufacturer Part Number
GECCT-3
Manufacturer
Killark
1" GEC Outlet Body C-Type, Aluminum
MFG #GECCT-3
Product Description:
1" GEC Outlet Body C-Type, Aluminum
HESCO Part Number
KILGECCT3
UPC
783936210049
Manufacturer Part Number
GECCT-3
Manufacturer
Killark
$134.24 / E
Each
Each
- Features
- Specifications
- Resources
- Water shedding cover – suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Covers furnished with boxes.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Specifications
| Buy American Compliant | : | Contact Manufacturer |
| Size | : | 6.25 in x 6 in x 4.25 in |
| Special Features | : | GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal |
| ARRA Compliant | : | Contact Manufacturer |
| Color | : | Gray |
| Country of Origin | : | MX |
| Dimensions | : | 6.25 in x 6 in x 4.25 in |
| Each - Width | : | 6.000 in |
| Hazardous Rating(s) | : | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA |
| Height | : | 4.25 in |
| Hub Size | : | 1" |
| Length | : | 6.25 in |
| Width | : | 6 in |
| Application | : | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Finish Type | : | Powder Epoxy Paint |
| Type | : | Outlet Body With Cover |
| Class Code | : | D30 |
| Description - Invoice | : | OUTLET BODY 1" AL C-TYPE |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 7609000299 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 42 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D30D237 |
| CSA File Number | : | LR11716 |
| Gross Weight with Packaging | : | 2 |
| Hub Pattern | : | C |
| UL File Number | : | E10514 |
| Material | : | Aluminum, Copper Free (less than 4/10 of 1%) |
| Series | : | GE |
| Base Unit of Measure | : | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936210049 |
| Master Pack Description | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- Water shedding cover – suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Covers furnished with boxes.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Specifications
Buy American Compliant : Contact Manufacturer Size : 6.25 in x 6 in x 4.25 in Special Features : GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal ARRA Compliant : Contact Manufacturer Color : Gray Country of Origin : MX Dimensions : 6.25 in x 6 in x 4.25 in Each - Width : 6.000 in Hazardous Rating(s) : Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA Height : 4.25 in Hub Size : 1" Length : 6.25 in Width : 6 in Application : Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. Finish Type : Powder Epoxy Paint Type : Outlet Body With Cover Class Code : D30 Description - Invoice : OUTLET BODY 1" AL C-TYPE Freight Class Code : 06316009 Harmonization Code : 7609000299 Image Actual Or Representative : R Lead Time : 42 wk MSDS Flag : No Order Multiple : 1 EA Returnable Indicator : Yes Sub Class Code : D30D237 CSA File Number : LR11716 Gross Weight with Packaging : 2 Hub Pattern : C UL File Number : E10514 Material : Aluminum, Copper Free (less than 4/10 of 1%) Series : GE Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00783936210049 Master Pack Description : Each Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
Spec SheetCertification Document Asset Reference 1Certification Document Asset Reference 2Certification Document Asset Reference 3Customer Notices Asset ReferenceInstallation Manuals Asset Reference
