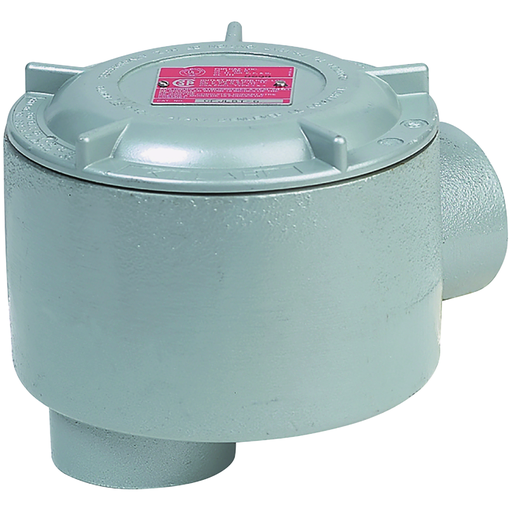

1" GEC Outlet Body LB Type
MFG #GECLBT-3
$124.20 / E
Each
Each
Product Description:
1" GEC Outlet Body LB Type
HESCO Part Number
KILGECLBT3
UPC
783936210070
Manufacturer Part Number
GECLBT-3
Manufacturer
Killark
1" GEC Outlet Body LB Type
MFG #GECLBT-3
Product Description:
1" GEC Outlet Body LB Type
HESCO Part Number
KILGECLBT3
UPC
783936210070
Manufacturer Part Number
GECLBT-3
Manufacturer
Killark
$124.20 / E
Each
Each
- Features
- Specifications
- Resources
- Water shedding cover – suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Covers furnished with boxes.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Specifications
| Country of Origin | : | United States |
| Buy American Compliant | : | Contact Manufacturer |
| Dimensions | : | 7.5 in x 5.75 in x 4.25 in |
| Width | : | 5.750 in |
| Each - Width | : | 5.750 in |
| Hazardous Rating(s) | : | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA |
| Height | : | 4.25 in |
| Hub Size | : | 1" |
| Application | : | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Color | : | Gray |
| Length | : | 7.5 in |
| Size | : | 7.5 in x 5.75 in x 4.25 in |
| Special Features | : | GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal |
| Type | : | Outlet Body With Cover |
| Finish Type | : | Powder Epoxy Paint |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D30 |
| Description - Invoice | : | OUTLET BODY 1" AL LB TYPE |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 7609000000 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 49 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D30D237 |
| CSA File Number | : | LR11716 |
| Gross Weight with Packaging | : | 1.8 |
| Hub Pattern | : | LB |
| UL File Number | : | E10514 |
| Material | : | Aluminum, Copper Free (less than 4/10 of 1%) |
| Series | : | GE |
| Base Unit of Measure | : | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936210070 |
| Master Pack Description | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
Downloads
Spec Sheet
STEP 3D Model Asset Reference
Catalog Full Asset Reference
Certification Document Asset Reference 1
Certification Document Asset Reference 2
Certification Document Asset Reference 3
Customer Notices Asset Reference
Installation Manuals Asset Reference
Sales Drawing Asset Reference
GECLBT-3 Engineering Drawing
