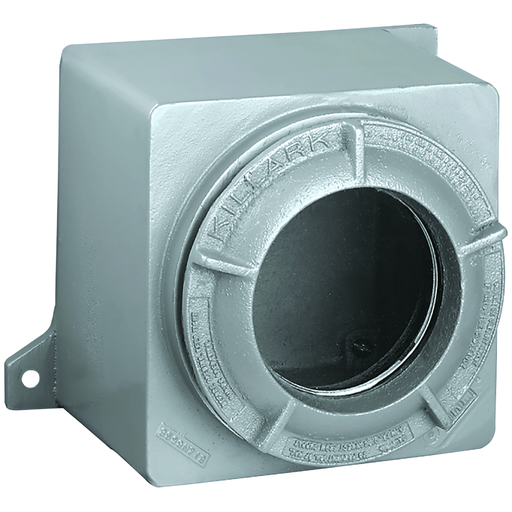

GR Series,9.5 X 10.5 X 5, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Viewing Lens Screw Cover Enclosure
MFG #GRH-775L
$3,551.43Â /Â E
EACH
EACH
Product Description:
GR Series,9.5 X 10.5 X 5, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Viewing Lens Screw Cover Enclosure
HESCO Part Number
KILGRH775L
UPC
783936231648
Manufacturer Part Number
GRH-775L
Manufacturer
Killark
GR Series,9.5 X 10.5 X 5, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Viewing Lens Screw Cover Enclosure
MFG #GRH-775L
Product Description:
GR Series,9.5 X 10.5 X 5, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Viewing Lens Screw Cover Enclosure
HESCO Part Number
KILGRH775L
UPC
783936231648
Manufacturer Part Number
GRH-775L
Manufacturer
Killark
$3,551.43Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Compact rectangular enclosures with threaded lens covers, provides view of the interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction and tempered soda lime glass, cemented in place.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Cast mounting lugs are standard on all boxes.
- Internal ground screw supplied on all boxes.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box and cover.
- Mounting pans are available.
- Conduit and device openings factory or field installed.
- Compact square or rectangular enclosures with threaded screw type covers provide easy access to interior. Can be shipped in component parts and still maintain third party UL-CSA-FM approvals. Enclosure has lens cover. Cast mounting lugs are standard on al
Specifications
| Country of Origin | :Â Â | US |
| Dimensions | :Â Â | 15.25 in x 13.75 in x 10 in |
| Each - Width | :Â Â | 13.750 in |
| Hazardous Rating(s) | :Â Â | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Height | :Â Â | 10 in |
| Application | :Â Â | Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica |
| Color | :Â Â | Gray |
| Length | :Â Â | 15.25 in |
| NEMA Rating | :Â Â | 3, 4, 4X |
| Size | :Â Â | 15.25 in x 13.75 in x 10 in |
| Special Features | :Â Â | Compact square or rectangular enclosures with threaded screw type covers provide easy access to interior. Can be shipped in component parts and still maintain third party UL-CSA-FM approvals. Enclosure has lens cover. Cast mounting lugs are standard on al |
| Type | :Â Â | Enclosure & Lens Cover |
| Width | :Â Â | 13.75 in |
| Cover Type | :Â Â | Threaded |
| Nema Rating | :Â Â | 3, 4, 4X |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | D25 |
| Description - Invoice | :Â Â | 7-3/4" BOX W/LENS COVER |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7616995190 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 20 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Sub Class Code | :Â Â | D25D252 |
| CSA File Number | :Â Â | LR11716 |
| Gross Weight with Packaging | :Â Â | 41.97 |
| UL File Number | :Â Â | E10514 / E83696 |
| Material | :Â Â | Copper-free aluminum |
| Series | :Â Â | GR Enclosures |
| Base Unit of Measure | :Â Â | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00783936231648 |
| Master Pack Description | :Â Â | Each |
Certifications | ||
| EU RoHS Indicator | :Â Â | Contact Manufacturer |
Downloads
STEP 3D Model Asset Reference
Catalog Full Asset Reference
Catalog Page Asset Reference
Certification Document Asset Reference 1
Certification Document Asset Reference 2
Certification Document Asset Reference 3
Customer Notices Asset Reference
Installation Manuals Asset Reference
Sales Drawing Asset Reference
GRH-775 Engineering Drawing
