Killark

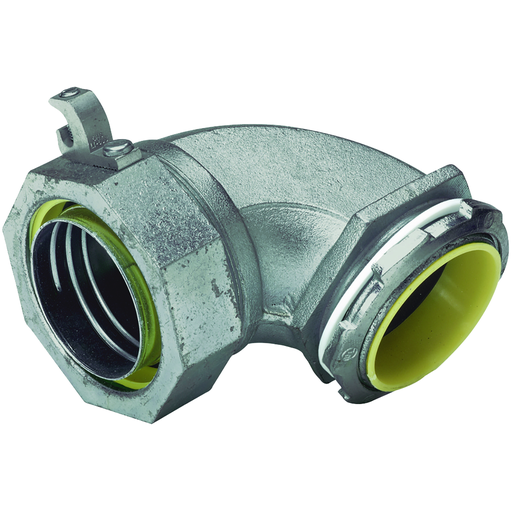

1" 90° Liquidtight Connector Insulated Grounding Lug
MFG #K10091-G
$100.55 / E
EACH
EACH
Product Description:
1" 90° Liquidtight Connector Insulated Grounding Lug
HESCO Part Number
KILK10091G
UPC
783936383644
Manufacturer Part Number
K10091-G
Manufacturer
Killark
Killark
1" 90° Liquidtight Connector Insulated Grounding Lug
MFG #K10091-G
Product Description:
1" 90° Liquidtight Connector Insulated Grounding Lug
HESCO Part Number
KILK10091G
UPC
783936383644
Manufacturer Part Number
K10091-G
Manufacturer
Killark
$100.55 / E
EACH
EACH
- Features
- Specifications
- Resources
- Lay-in grounding lug
- Plated steel for excellent durability
- Insulated throat fittings protect conductors from insulation damage
- Liquidtight fittings are used with metallic and non-metallic conduit to seal out water, oil, and dust in applications food processors, beverage & chemical plants, plastics fabricators, machine shops, etc.
Specifications
| Special Features | : | Liquidtight fittings are used with metallic and non-metallic conduit to seal out water, oil, and dust in applications food processors, beverage & chemical plants, plastics fabricators, machine shops, etc. |
| ARRA Compliant | : | Contact Manufacturer |
| Color | : | Gray |
| Country of Origin | : | CN |
| Width | : | 1.688 in |
| Each - Width | : | 1.688 in |
| Grounding Style | : | External Lug |
| Hazardous Rating(s) | : | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(B) (Class I, Division 2) or 502.10(A)(B) (Class II, Divisions 1 & 2) and 505.15(C) (Class I Zone 2). |
| Hub Size | : | 1" |
| Insulation Type | : | Nylon |
| Style | : | 90 Degree |
| Type | : | 90 Degree Liquidtight Grounded Insulated Connector |
| Class Code | : | D30 |
| Description - Invoice | : | 1" 90° LT CONNECTOR INSULATED GRD |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 8547909902 |
| Image Actual Or Representative | : | R |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Sub Class Code | : | D30D235 |
| CSA File Number | : | LR70873 |
| UL File Number | : | E22699/E152165 |
| Material | : | Steel |
| Series | : | K Series |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 2.188x2.469x1.688 (in) |
| Carton - Gross Weight per Pack | : | 6.600 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936383644 |
| Carton - Total Units | : | 10 |
| Standard Package Quantity | : | 10 |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- Lay-in grounding lug
- Plated steel for excellent durability
- Insulated throat fittings protect conductors from insulation damage
- Liquidtight fittings are used with metallic and non-metallic conduit to seal out water, oil, and dust in applications food processors, beverage & chemical plants, plastics fabricators, machine shops, etc.
Specifications
Special Features : Liquidtight fittings are used with metallic and non-metallic conduit to seal out water, oil, and dust in applications food processors, beverage & chemical plants, plastics fabricators, machine shops, etc. ARRA Compliant : Contact Manufacturer Color : Gray Country of Origin : CN Width : 1.688 in Each - Width : 1.688 in Grounding Style : External Lug Hazardous Rating(s) : Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(B) (Class I, Division 2) or 502.10(A)(B) (Class II, Divisions 1 & 2) and 505.15(C) (Class I Zone 2). Hub Size : 1" Insulation Type : Nylon Style : 90 Degree Type : 90 Degree Liquidtight Grounded Insulated Connector Class Code : D30 Description - Invoice : 1" 90° LT CONNECTOR INSULATED GRD Freight Class Code : 06316009 Harmonization Code : 8547909902 Image Actual Or Representative : R MSDS Flag : No Order Multiple : 1 EA Sub Class Code : D30D235 CSA File Number : LR70873 UL File Number : E22699/E152165 Material : Steel Series : K Series Base Unit of Measure : EA BOX SIZE : 2.188x2.469x1.688 (in) Carton - Gross Weight per Pack : 6.600 lb. Carton - Number of Sub Packs : 10 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 00783936383644 Carton - Total Units : 10 Standard Package Quantity : 10 Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
Spec SheetCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSpecification Sheet Asset Reference
