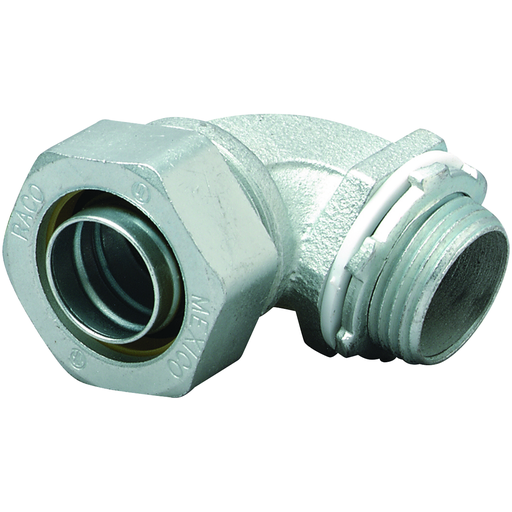

1 1/4" 90° Liquidtight Connector Non-Insulated
MFG #K1259
$113.94 / E
EACH
EACH
Product Description:
1 1/4" 90° Liquidtight Connector Non-Insulated
HESCO Part Number
KILK1259
UPC
783936998572
Manufacturer Part Number
K1259
Manufacturer
Killark
1 1/4" 90° Liquidtight Connector Non-Insulated
MFG #K1259
Product Description:
1 1/4" 90° Liquidtight Connector Non-Insulated
HESCO Part Number
KILK1259
UPC
783936998572
Manufacturer Part Number
K1259
Manufacturer
Killark
$113.94 / E
EACH
EACH
- Features
- Specifications
- Resources
- Split nylon gland ring for easy installation and greater comopression
- Digging locknut
- Sealing o-rings included
- Reusable
- Liquidtight fittings are used with metallic and non-metallic conduit to seal out water, oil, and dust in applications food processors, beverage & chemical plants, plastics fabricators, machine shops, etc.
Specifications
| Special Features | : | Liquidtight fittings are used with metallic and non-metallic conduit to seal out water, oil, and dust in applications food processors, beverage & chemical plants, plastics fabricators, machine shops, etc. |
| ARRA Compliant | : | Contact Manufacturer |
| Color | : | Gray |
| Country of Origin | : | CN |
| Width | : | 2.063 in |
| Each - Width | : | 2.063 in |
| Hazardous Rating(s) | : | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(B) (Class I, Division 2) or 502.10(A)(B) (Class II, Divisions 1 & 2) and 505.15(C) (Class I Zone 2). |
| Hub Size | : | 1-1/4" |
| Insulation Type | : | Non-insulated |
| Style | : | 90 Degree |
| Type | : | 90 Degree Liquidtight Non-Insulated Connector |
| Class Code | : | D30 |
| Description - Invoice | : | 1 1/4" 90° LT CONNECTOR NON-INSULATED |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 7326909999 |
| Image Actual Or Representative | : | R |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Sub Class Code | : | D30D235 |
| CSA File Number | : | LR70873 |
| UL File Number | : | E22699 |
| Material | : | Steel |
| Series | : | K Series |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 4.750x8.750x7.250 (in) |
| Carton - Gross Weight per Pack | : | 9.300 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936998572 |
| Carton - Total Units | : | 10 |
| Standard Package Quantity | : | 10 |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
