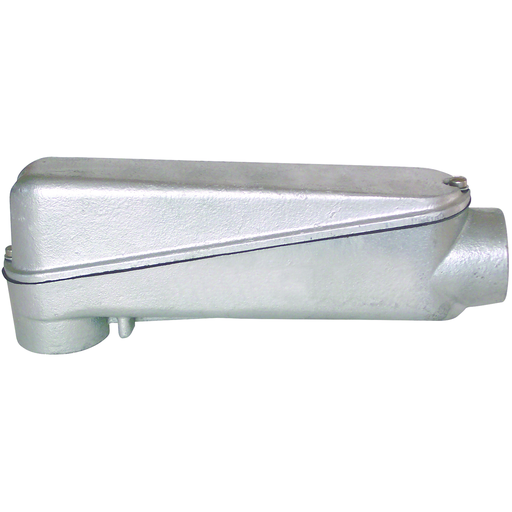

1/2" LB Hub, Aluminum Mogul Conduit Body
MFG #MOLBD-1
$64.05 / E
EACH
EACH
Product Description:
1/2" LB Hub, Aluminum Mogul Conduit Body
HESCO Part Number
KILMOLBD1
UPC
783936555454
Manufacturer Part Number
MOLBD-1
Manufacturer
Killark
1/2" LB Hub, Aluminum Mogul Conduit Body
MFG #MOLBD-1
Product Description:
1/2" LB Hub, Aluminum Mogul Conduit Body
HESCO Part Number
KILMOLBD1
UPC
783936555454
Manufacturer Part Number
MOLBD-1
Manufacturer
Killark
$64.05 / E
EACH
EACH
- Features
- Specifications
- Resources
- A raised dome cover permits additional wiring room
- Furnished with captive ss screws and gasket
- LBD, C and UB Series available with builtin cable-pulling rollers on sizes 1-1/2” and larger. Add -WR to catalog number. Example MOLBD-5-WR.
- A raised dome cover permits additional wiring room. Furnished with captive ss screws and gasket. Volume is 3 cu. in.
Specifications
| Country of Origin | : | MX |
| Dimensions | : | 5 in x 2 in x 3 in |
| Each - Width | : | 2.000 in |
| Hazardous Rating(s) | : | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Application | : | Mogul fittings are for use with rigid and IMC raceways. Use where standard conduit bodies do not provide adequate access and wiring area for the pulling of large and heavy conductors. For right angle bends where splices, pulls, and taps are needed in a we |
| Color | : | Gray |
| Finish | : | Powder Epoxy Paint |
| Height | : | 3 in |
| Hub Size | : | 1/2" |
| Length | : | 5 in |
| Special Features | : | A raised dome cover permits additional wiring room. Furnished with captive ss screws and gasket. Volume is 3 cu. in. |
| Type | : | Mogul Conduit Body With Cover & Gasket |
| Width | : | 2 in |
| Finish Type | : | Powder Epoxy Paint |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D30 |
| Description - Invoice | : | 1/2" ALUM MOGUL TYPE LBD |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 7609000000 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 42 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D30D230 |
| Gross Weight with Packaging | : | 1.5 |
| Hub Pattern | : | LB |
| Material | : | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | : | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936555454 |
| Item Package Type | : | K-PAK (cover & gasket included) |
| Master Pack Description | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- A raised dome cover permits additional wiring room
- Furnished with captive ss screws and gasket
- LBD, C and UB Series available with builtin cable-pulling rollers on sizes 1-1/2” and larger. Add -WR to catalog number. Example MOLBD-5-WR.
- A raised dome cover permits additional wiring room. Furnished with captive ss screws and gasket. Volume is 3 cu. in.
Specifications
Country of Origin : MX Dimensions : 5 in x 2 in x 3 in Each - Width : 2.000 in Hazardous Rating(s) : Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). Application : Mogul fittings are for use with rigid and IMC raceways. Use where standard conduit bodies do not provide adequate access and wiring area for the pulling of large and heavy conductors. For right angle bends where splices, pulls, and taps are needed in a we Color : Gray Finish : Powder Epoxy Paint Height : 3 in Hub Size : 1/2" Length : 5 in Special Features : A raised dome cover permits additional wiring room. Furnished with captive ss screws and gasket. Volume is 3 cu. in. Type : Mogul Conduit Body With Cover & Gasket Width : 2 in Finish Type : Powder Epoxy Paint ARRA Compliant : Contact Manufacturer Class Code : D30 Description - Invoice : 1/2" ALUM MOGUL TYPE LBD Freight Class Code : 06316009 Harmonization Code : 7609000000 Image Actual Or Representative : R Lead Time : 42 wk MSDS Flag : No Order Multiple : 1 EA Returnable Indicator : Yes Sub Class Code : D30D230 Gross Weight with Packaging : 1.5 Hub Pattern : LB Material : Aluminum, Copper Free (less than 4/10 of 1%) Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00783936555454 Item Package Type : K-PAK (cover & gasket included) Master Pack Description : Each Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
Spec Sheet
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCertification Document Asset Reference 1Certification Document Asset Reference 2Customer Notices Asset ReferenceSales Drawing Asset ReferenceMOLBD-1 Engineering Drawing
