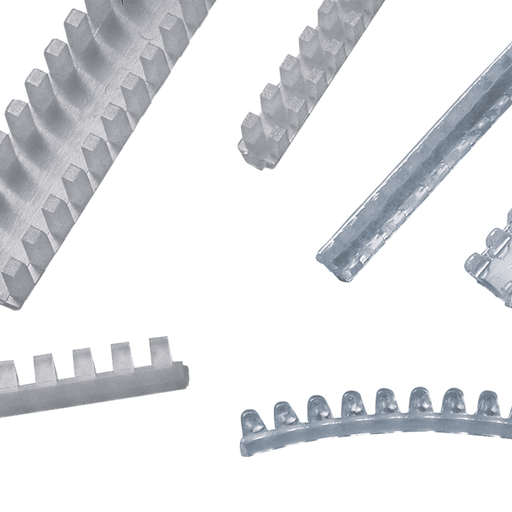

GE192-L69 Grommet Edging
MFG #GE192-L69
$3.09 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
Military standard grommet edging strip, .192" thickness, flame retardant nylon 6.6, natural.
HESCO Part Number
PANGE192L69
UPC
074983601660
Manufacturer Part Number
GE192-L69
Manufacturer
Panduit
GE192-L69 Grommet Edging
MFG #GE192-L69
Product Description:
Military standard grommet edging strip, .192" thickness, flame retardant nylon 6.6, natural.
HESCO Part Number
PANGE192L69
UPC
074983601660
Manufacturer Part Number
GE192-L69
Manufacturer
Panduit
$3.09 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Specifications
- Resources
Packaging Details
| UPC | : | 07498360166 |
| GTIN Package | : | 00074983601660 |
| Standard Package Volume Ft3 | : | 0.0743 |
| Standard Package Weight Pounds | : | 0.9000 |
| Std Package Height In | : | 1.5 |
| Std Package Height MM | : | 38.1 |
| Std Package Length In | : | 16 |
| Std Package Length MM | : | 406.4 |
| Std Package Width In | : | 5.8 |
| Std Package Width MM | : | 147.32 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983601665 |
| Standard Carton Volume Ft3 | : | 0.7427 |
| Standard Carton Weight Pounds | : | 9.0000 |
| Std Carton Height In | : | 9.5 |
| Std Carton Height MM | : | 241.3 |
| Std Carton Length In | : | 14.25 |
| Std Carton Length MM | : | 361.95 |
| Std Carton Width In | : | 8.9 |
| Std Carton Width MM | : | 226.06 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| Country of Origin 2Digit | : | CR |
| RoHS Compliant | : | Compliant |
| EAN | : | 00074983601660 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 30,000 |
| Pallet Volume | : | 44.563347 |
| Pallet Weight | : | 540.0000 |
Specifications | ||
| Product Segment | : | IEI |
| Product Type | : | Grommet Edging |
| Color | : | Natural |
| Flammability Rating | : | UL94V-0 |
| Material | : | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | : | 0.19 |
| Maximum Compatible Panel Thickness (mm) | : | 4.9 |
| Minimum Compatible Panel Thickness (mm) | : | 3.3 |
| Minimum Compatible Panel Thickness (In.) | : | 0.13 |
| Maximum Operating Temperature (°C) | : | 65 |
| Maximum Operating Temperature (°F) | : | 149 |
| Minimum Operating Temperature (°C) | : | -40 |
| Minimum Operating Temperature (°F) | : | -40 |
| Overall Length (ft.) | : | 1.06 |
| Overall Length (m) | : | 0.3 |
| Overall Width (mm) | : | 8.3 |
| Overall Width (In.) | : | 0.33 |
| Overall Height (mm) | : | 5.8 |
| Overall Height (In.) | : | 0.23 |
| Resistance Properties | : | Flame-Retardant |
| Standards Met | : | RoHS Compliant |
| Application | : | To Protect Cables Being Installed where there Might be Sharp Edges on Straight Edges |
