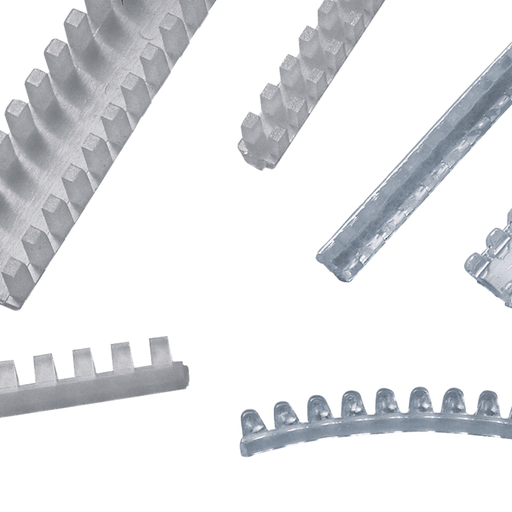

GE380-Q Grommet Edging
MFG #GE380-Q
$4.09 / E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
Product Description:
Military standard grommet edging strip, .380" thickness, nylon 6.6, natural.
HESCO Part Number
PANGE380Q
UPC
074983601424
Manufacturer Part Number
GE380-Q
Manufacturer
Panduit
GE380-Q Grommet Edging
MFG #GE380-Q
Product Description:
Military standard grommet edging strip, .380" thickness, nylon 6.6, natural.
HESCO Part Number
PANGE380Q
UPC
074983601424
Manufacturer Part Number
GE380-Q
Manufacturer
Panduit
$4.09 / E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
- Specifications
- Resources
Specifications
| Product Segment | : | IEI |
| Product Type | : | Grommet Edging |
| Color | : | Natural |
| Flammability Rating | : | UL94V-2 |
| Material | : | Nylon 6.6 |
| Maximum Compatible Panel Thickness (mm) | : | 9.7 |
| Maximum Compatible Panel Thickness (In.) | : | 0.38 |
| Minimum Compatible Panel Thickness (mm) | : | 8.1 |
| Minimum Compatible Panel Thickness (In.) | : | 0.32 |
| Maximum Operating Temperature (°F) | : | 149 |
| Maximum Operating Temperature (°C) | : | 65 |
| Minimum Operating Temperature (°F) | : | -40 |
| Minimum Operating Temperature (°C) | : | -40 |
| Overall Length (ft.) | : | 1.06 |
| Overall Length (m) | : | 0.3 |
| Overall Width (In.) | : | 0.52 |
| Overall Width (mm) | : | 13.1 |
| Overall Height (In.) | : | 0.26 |
| Overall Height (mm) | : | 6.5 |
| Resistance Properties | : | Abrasion-Resistant |
| Standards Met | : | RoHS Compliant |
| Application | : | To Protect Cables Being Installed where there Might be Sharp Edges on Straight Edges |
Packaging Details | ||
| UPC | : | 07498360142 |
| GTIN Package | : | 00074983601424 |
| Standard Package Volume Ft3 | : | 0.0744 |
| Standard Package Weight Pounds | : | 0.7300 |
| Std Package Height In | : | 1.5 |
| Std Package Height MM | : | 38.1 |
| Std Package Length In | : | 16 |
| Std Package Length MM | : | 406.4 |
| Std Package Width In | : | 5.8 |
| Std Package Width MM | : | 147.32 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 25 |
| GTIN Carton | : | 50074983601429 |
| Standard Carton Volume Ft3 | : | 0.7439 |
| Standard Carton Weight Pounds | : | 7.3000 |
| Std Carton Height In | : | 9.5 |
| Std Carton Height MM | : | 241.3 |
| Std Carton Length In | : | 14.25 |
| Std Carton Length MM | : | 361.95 |
| Std Carton Width In | : | 8.9 |
| Std Carton Width MM | : | 226.06 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| Country of Origin 2Digit | : | CR |
| RoHS Compliant | : | Compliant |
| EAN | : | 00074983601424 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 25.0000 |
| Pallet Quantity | : | 15,000 |
| Pallet Volume | : | 44.631794 |
| Pallet Weight | : | 438.0000 |
