Grom Edg SLD,.13"x.16",FR NAT,1rl
MFG #GES62FR-CY
$54.14 / E
Each
Each
Product Description:

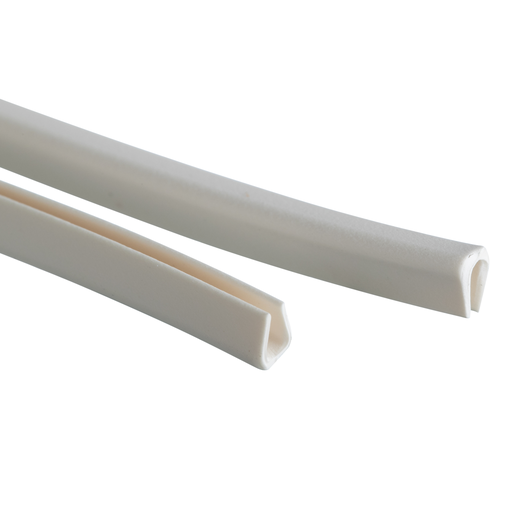

Solid grommet edging (use on straight edges only), .062" thickness, flame retardant polyethylene, natural.
HESCO Part Number
PANGES62FRCY
UPC
074983107551
Manufacturer Part Number
GES62FR-CY
Manufacturer
Panduit
Grom Edg SLD,.13"x.16",FR NAT,1rl
MFG #GES62FR-CY
$54.14 / E
Each
Each
Product Description:
Solid grommet edging (use on straight edges only), .062" thickness, flame retardant polyethylene, natural.
HESCO Part Number
PANGES62FRCY
UPC
074983107551
Manufacturer Part Number
GES62FR-CY
Manufacturer
Panduit
Grom Edg SLD,.13"x.16",FR NAT,1rl
MFG #GES62FR-CY
Product Description:
Solid grommet edging (use on straight edges only), .062" thickness, flame retardant polyethylene, natural.
HESCO Part Number
PANGES62FRCY
UPC
074983107551
Manufacturer Part Number
GES62FR-CY
Manufacturer
Panduit
$54.14 / E
Each
Each
- Specifications
- Resources
- Product
Specifications
| Product Segment | : | IEI |
| Product Type | : | Solid Grommet Edging |
| Note | : | GES62FR-CY replaces GES62FR-C |
| Color | : | Natural |
| Flammability Rating | : | UL94V-0 |
| Material | : | Flame Retardant Polyethylene |
| Maximum Compatible Panel Thickness (In.) | : | 0.062 |
| Maximum Compatible Panel Thickness (mm) | : | 1.6 |
| Maximum Operating Temperature (°C) | : | 50 |
| Maximum Operating Temperature (°F) | : | 122 |
| Minimum Compatible Panel Thickness (mm) | : | 0.9 |
| Minimum Compatible Panel Thickness (In.) | : | 0.036 |
| Minimum Operating Temperature (°F) | : | -4 |
| Minimum Operating Temperature (°C) | : | -20 |
| Overall Height (In.) | : | 0.16 |
| Overall Height (mm) | : | 4.1 |
| Overall Width (In.) | : | 0.13 |
| Overall Width (mm) | : | 3.3 |
| Overall Length (ft.) | : | 100 |
| Overall Length (m) | : | 30.5 |
| Resistance Properties | : | Flame-Retardant |
| Standards Met | : | RoHS Compliant |

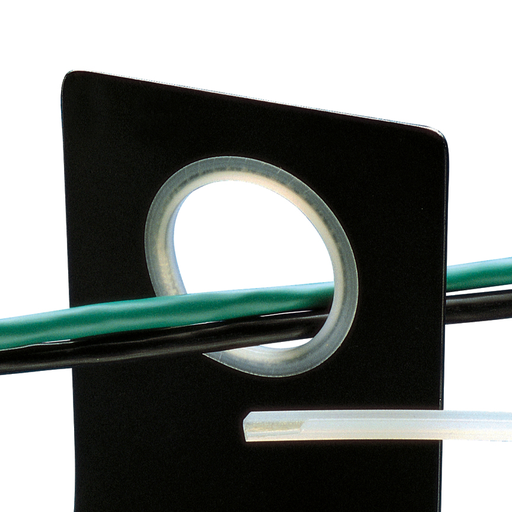

| Application | : | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
Packaging Details | ||
| UPC | : | 07498310755 |
| GTIN Package | : | 00074983107551 |
| Standard Package Volume Ft3 | : | 0.1339 |
| Standard Package Weight Pounds | : | 0.8000 |
| Std Package Height In | : | 2.5 |
| Std Package Height MM | : | 63.5 |
| Std Package Length In | : | 11.8 |
| Std Package Length MM | : | 299.72 |
| Std Package Width In | : | 11.75 |
| Std Package Width MM | : | 298.45 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| Country of Origin 2Digit | : | US |
| RoHS Compliant | : | Compliant |
| EAN | : | 00074983107551 |
| REACH Status | : | False |
| Buy American Compliant | : | Y |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | No |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1 |
| Pallet Quantity | : | 171 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 136.8000 |
