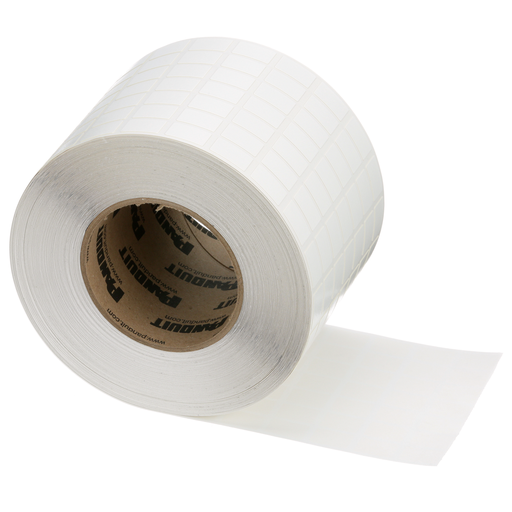

N050X075CBT Non-Laminating Label, Vinyl Cloth, White, TT, 0.75"x0.5", PK10000
MFG #N050X075CBT
$0.04Â /Â E
(Must order in increments of 10000/E)
(Must order in increments of 10000/E)
Product Description:
The N050X075CBT Thermal Transfer Non-Laminated Label is constructed of a thin and comformable material with repositionable adhesive that allows the label to be removed and resued in temporary applications. Works well on Teflon coated wires. For use with TDP printers. Compatible with Easy-Mark Plus Labeling Software. Vinyl Cloth. 0.5" x 0.75" (12.7 mm x 19.1 mm). Cable diameter 0.12" - 0.16" (3.1 mm - 4.1 mm) Color White. 10,000 labels per roll.
HESCO Part Number
PANN050X075CBT
UPC
074983462766
Manufacturer Part Number
N050X075CBT
Manufacturer
Panduit
N050X075CBT Non-Laminating Label, Vinyl Cloth, White, TT, 0.75"x0.5", PK10000
MFG #N050X075CBT
Product Description:
The N050X075CBT Thermal Transfer Non-Laminated Label is constructed of a thin and comformable material with repositionable adhesive that allows the label to be removed and resued in temporary applications. Works well on Teflon coated wires. For use with TDP printers. Compatible with Easy-Mark Plus Labeling Software. Vinyl Cloth. 0.5" x 0.75" (12.7 mm x 19.1 mm). Cable diameter 0.12" - 0.16" (3.1 mm - 4.1 mm) Color White. 10,000 labels per roll.
HESCO Part Number
PANN050X075CBT
UPC
074983462766
Manufacturer Part Number
N050X075CBT
Manufacturer
Panduit
$0.04Â /Â E
(Must order in increments of 10000/E)
(Must order in increments of 10000/E)
- Features
- Specifications
- Resources
- Standards Met: UL969 recognized, File # MH14576 and MH14979; cUL recognized, C22.2 No. 0.15.01, File # MH14576; RoHS Compliant
Packaging Details
| UPC | :Â Â | 07498346276 |
| GTIN Package | :Â Â | 00074983462766 |
| Standard Package Volume Ft3 | :Â Â | 0.7051 |
| Standard Package Weight Pounds | :Â Â | 2.0000 |
| Std Package Height In | :Â Â | 4.85 |
| Std Package Height MM | :Â Â | 123.19 |
| Std Package Length In | :Â Â | 7.05 |
| Std Package Length MM | :Â Â | 179.07 |
| Std Package Width In | :Â Â | 6.7 |
| Std Package Width MM | :Â Â | 170.18 |
| Std. Pkg. UOM | :Â Â | Piece |
| UOM EA PK | :Â Â | PK |
| Std. Pkg. Qty. | :Â Â | 10000 |
| Standard Carton Volume Ft3 | :Â Â | 0.0000 |
| Standard Carton Weight Pounds | :Â Â | 0.0000 |
| Std Ctn Qty | :Â Â | 0 |
| Min. Order UOM | :Â Â | Piece |
| EAN | :Â Â | 00074983462766 |
| REACH Status | :Â Â | N |
| ARRA Compliant | :Â Â | Y |
| Mercury Content Indicator | :Â Â | N |
| Hazardous Material Flag | :Â Â | N |
| Min Order Qty | :Â Â | 10,000.0000 |
| Pallet Quantity | :Â Â | 200,000 |
| Pallet Volume | :Â Â | 0.000000 |
| Pallet Weight | :Â Â | 40.0000 |
| RoHS Compliant | :Â Â | Compliant |
Specifications | ||
| Country of Origin | :Â Â | United States |
| Any Reason Not to Sell | :Â Â | N |
| Product Segment | :Â Â | IEI |
| Minimum Cable Diameter (In.) | :Â Â | 0.12 |
| Overall Height (In.) | :Â Â | 0.75 |
| Note | :Â Â | For use with TDP printers. |
| Overall Width (mm) | :Â Â | 12.7 |
| Overall Height (mm) | :Â Â | 19.1 |
| Overall Width (In.) | :Â Â | 0.5 |
| Color | :Â Â | White |
| Maximum Cable Diameter (mm) | :Â Â | 4.1 |
| Product Type | :Â Â | Non-Laminating Label |
| Material | :Â Â | Vinyl Cloth |
| Number of Labels per Roll | :Â Â | 10000 |
| Minimum Cable Diameter (mm) | :Â Â | 3.1 |
| Label Application | :Â Â | Cable & Wire Marking |
| Printer Type | :Â Â | Thermal Transfer |
| Maximum Cable Diameter (In.) | :Â Â | 0.16 |
| Label Property | :Â Â | Repositionable |
| Label Dimensions (In.) | :Â Â | 0.5W x 0.75H |
| Compatible Wire Gauge | :Â Â | 12-10 AWG |
Certifications
Certifications 1
Certifications 2
Selection Guides
Selection Guides 1
Catalogs
Catalogs 1
Part Drawings
Part Drawings 1
Technical References
Technical References 1
Certifications 1Certifications 2Selection Guides
Selection Guides 1Catalogs
Catalogs 1Part Drawings
Part Drawings 1Technical References
Technical References 1- Standards Met: UL969 recognized, File # MH14576 and MH14979; cUL recognized, C22.2 No. 0.15.01, File # MH14576; RoHS Compliant
Packaging Details
UPC :Â Â 07498346276 GTIN Package :Â Â 00074983462766 Standard Package Volume Ft3 :Â Â 0.7051 Standard Package Weight Pounds :Â Â 2.0000 Std Package Height In :Â Â 4.85 Std Package Height MM :Â Â 123.19 Std Package Length In :Â Â 7.05 Std Package Length MM :Â Â 179.07 Std Package Width In :Â Â 6.7 Std Package Width MM :Â Â 170.18 Std. Pkg. UOM :Â Â Piece UOM EA PK :Â Â PK Std. Pkg. Qty. :Â Â 10000 Standard Carton Volume Ft3 :Â Â 0.0000 Standard Carton Weight Pounds :Â Â 0.0000 Std Ctn Qty :Â Â 0 Min. Order UOM :Â Â Piece EAN :Â Â 00074983462766 REACH Status :Â Â N ARRA Compliant :Â Â Y Mercury Content Indicator :Â Â N Hazardous Material Flag :Â Â N Min Order Qty :Â Â 10,000.0000 Pallet Quantity :Â Â 200,000 Pallet Volume :Â Â 0.000000 Pallet Weight :Â Â 40.0000 RoHS Compliant :Â Â Compliant Specifications
Country of Origin :Â Â United States Any Reason Not to Sell :Â Â N Product Segment :Â Â IEI Minimum Cable Diameter (In.) :Â Â 0.12 Overall Height (In.) :Â Â 0.75 Note :Â Â For use with TDP printers. Overall Width (mm) :Â Â 12.7 Overall Height (mm) :Â Â 19.1 Overall Width (In.) :Â Â 0.5 Color :Â Â White Maximum Cable Diameter (mm) :Â Â 4.1 Product Type :Â Â Non-Laminating Label Material :Â Â Vinyl Cloth Number of Labels per Roll :Â Â 10000 Minimum Cable Diameter (mm) :Â Â 3.1 Label Application :Â Â Cable & Wire Marking Printer Type :Â Â Thermal Transfer Maximum Cable Diameter (In.) :Â Â 0.16 Label Property :Â Â Repositionable Label Dimensions (In.) :Â Â 0.5W x 0.75H Compatible Wire Gauge :Â Â 12-10 AWG - CertificationsCertifications 1Certifications 2
