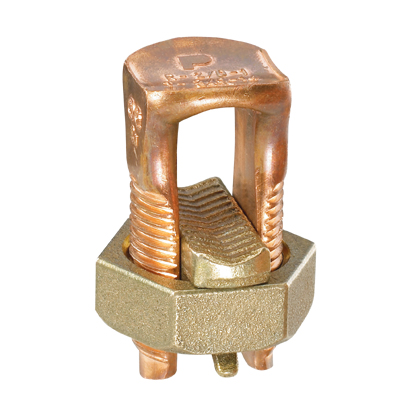

Pan-Lug™ SBC2-C Mech Con-Split Bolt, 2, Copper, PK100
MFG #SBC2-C
$13.78 / E
EACH
EACH
Product Description:
The SBC2-C Mechanical Lug Split Bolt Copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The internal pressure bar provides a secure connection on a full range of conductor combinations used with each Lug assuring premium wire pull-out strength.
HESCO Part Number
PANSBC2C
UPC
074983627233
Manufacturer Part Number
SBC2-C
Manufacturer
Panduit
Pan-Lug™ SBC2-C Mech Con-Split Bolt, 2, Copper, PK100
MFG #SBC2-C
Product Description:
The SBC2-C Mechanical Lug Split Bolt Copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The internal pressure bar provides a secure connection on a full range of conductor combinations used with each Lug assuring premium wire pull-out strength.
HESCO Part Number
PANSBC2C
UPC
074983627233
Manufacturer Part Number
SBC2-C
Manufacturer
Panduit
$13.78 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: UL listed to 467 and 486 and CSA certified for use up to 600V & Temperature Rated to 90°C
Packaging Details
| UPC | : | 07498362723 |
| GTIN Package | : | 00074983627233 |
| Standard Package Volume Ft3 | : | 0.1221 |
| Standard Package Weight Pounds | : | 11.7000 |
| Std Package Height In | : | 4.35 |
| Std Package Height MM | : | 110.49 |
| Std Package Length In | : | 10.7 |
| Std Package Length MM | : | 271.78 |
| Std Package Width In | : | 4.3 |
| Std Package Width MM | : | 109.22 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983627233 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Brazil, United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Connection Type | : | Copper to Copper |
| Sub Brand | : | Pan-Lug™ |
| UL Temperature Rating (°C) | : | 90 |
| Overall Height (In.) | : | 1.23 |
| Maximum Voltage (V) | : | 600 |
| Product Type | : | Mechanical Split Bolt Connector |
| Base Material | : | Copper |
| Overall Height (mm) | : | 31.2 |
| Copper Conductor Size | : | 6-2 AWG |
