SE50PSC-CR0 Fray Resistant Sleeving, Black, PET, 0.5" Nom Dia., 100', PK1
MFG #SE50PSC-CR0
$302.34 / E
EACH
EACH
Product Description:

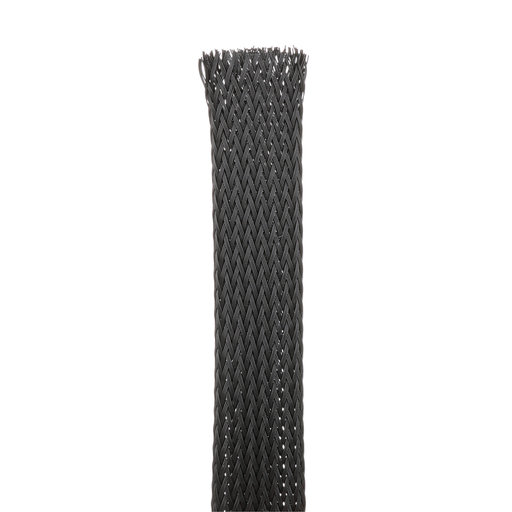

Fray resistant braided expandable sleeving, .5" (12.7 mm) diameter, can be cut with a pair of scissors and provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is flexible and the open weave will not trap heat or humidity. Polyethylene Terephthalate. 100 ft (30.5 m) reel. Color Black.
HESCO Part Number
PANSE50PSCCR0
UPC
074983816484
Manufacturer Part Number
SE50PSC-CR0
Manufacturer
Panduit
SE50PSC-CR0 Fray Resistant Sleeving, Black, PET, 0.5" Nom Dia., 100', PK1
MFG #SE50PSC-CR0
Product Description:
Fray resistant braided expandable sleeving, .5" (12.7 mm) diameter, can be cut with a pair of scissors and provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is flexible and the open weave will not trap heat or humidity. Polyethylene Terephthalate. 100 ft (30.5 m) reel. Color Black.
HESCO Part Number
PANSE50PSCCR0
UPC
074983816484
Manufacturer Part Number
SE50PSC-CR0
Manufacturer
Panduit
$302.34 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA Certified, Compliant with U.S. and European passenger rail standards, UL Recognized E116868; RoHS Compliant
- No
Packaging Details
| UPC | : | 07498381648 |
| GTIN Package | : | 00074983816484 |
| Standard Package Volume Ft3 | : | 0.0866 |
| Standard Package Weight Pounds | : | 1.0250 |
| Std Package Height In | : | 3.15 |
| Std Package Height MM | : | 80.01 |
| Std Package Length In | : | 6 |
| Std Package Length MM | : | 152.4 |
| Std Package Width In | : | 5.95 |
| Std Package Width MM | : | 151.13 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| GTIN Carton | : | 50074983816489 |
| Standard Carton Volume Ft3 | : | 0.3465 |
| Standard Carton Weight Pounds | : | 4.1000 |
| Std Carton Height In | : | 7.3 |
| Std Carton Height MM | : | 185.42 |
| Std Carton Length In | : | 13.65 |
| Std Carton Length MM | : | 346.71 |
| Std Carton Width In | : | 7 |
| Std Carton Width MM | : | 177.8 |
| Std Ctn Qty | : | 4 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983816484 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 672 |
| Pallet Volume | : | 58.212000 |
| Pallet Weight | : | 688.8000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Operating Temperature (°C) | : | 125 |
| Nominal Diameter (mm) | : | 12.7 |
| Application | : | Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes |
| Maximum Operating Temperature (°F) | : | 257 |
| Overall Length (ft.) | : | 100 |
| Nominal Diameter (In.) | : | 0.5 |
| Minimum Operating Temperature (°F) | : | -94 |
| Note | : | Resists fraying when cut with scissors |
| Minimum Operating Temperature (°C) | : | -70 |
| Material | : | PET |
| Minimum Bundle Diameter (mm) | : | 6.4 |
| Flammability Rating | : | UL94V-0 |
| Resistance Properties | : | Fray-Resistant |
| Overall Length (m) | : | 30.48 |
| Product Type | : | Braided Expandable Sleeving |
| Maximum Bundle Diameter (mm) | : | 19.1 |
| Minimum Bundle Diameter (In.) | : | 0.25 |
| Maximum Bundle Diameter (In.) | : | 0.75 |
| Color | : | Black |
