Raco

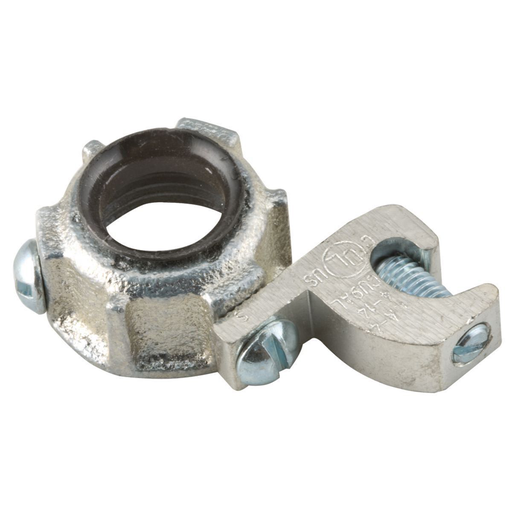

1 in. 150 Degree Rigid/IMC Grounding Bushing, Lay-in-Lug, Insulated
MFG #1214
$50.63 / E
Each
Each
Product Description:
1 in. 150 Degree Rigid/IMC Grounding Bushing, Lay-in-Lug, Insulated
HESCO Part Number
RAC1214
UPC
050169012147
Manufacturer Part Number
1214
Manufacturer
Raco
Raco
1 in. 150 Degree Rigid/IMC Grounding Bushing, Lay-in-Lug, Insulated
MFG #1214
Product Description:
1 in. 150 Degree Rigid/IMC Grounding Bushing, Lay-in-Lug, Insulated
HESCO Part Number
RAC1214
UPC
050169012147
Manufacturer Part Number
1214
Manufacturer
Raco
$50.63 / E
Each
Each
- Features
- Specifications
- Resources
- Malleable iron construction ensures mechanical protection
- Zinc-electroplated for added corrosion protection
- Insuliner rated for 150° C
- Grounding Wire Capacity - #14 Sol. - #4 Str.
- UL and CSA Listed
- Available in trade sizes of 1/2 in through 4 in.
Specifications
| Buy American Compliant | : | Contact Manufacturer |
| ChannelSightWidgetId | : | 705 |
| Country of Origin | : | IN |
| Dimensions | : | 0.969 in x 1.75 in x 2.125 in |
| Width | : | 1.750 in |
| Each - Width | : | 1.750 in |
| Height | : | 2.125 in |
| Industry Standard(s) | : | UL 514B |
| Insulation Type | : | Insulated |
| Length | : | 0.969 in |
| Product Type | : | Commercial Fittings |
| Size | : | 0.969 in x 1.75 in x 2.125 in |
| Standard | : | UL 514B |
| Trade Size | : | 1 in |
| Configuration | : | 150 Degrees |
| Connector Type | : | Grounding |
| Weight | : | 0.134 lb. |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D04 |
| Description - Invoice | : | GRND BSHG LAYIN LUG 1 IN INSL MALL IRON |
| Freight Class Code | : | 06202000 |
| Harmonization Code | : | 7326908688 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 21 wk |
| MSDS Flag | : | Yes |
| Order Multiple | : | 50 EA |
| Replaced Catalog Number | : | 10095836 |
| Returnable Indicator | : | Yes |
| Stock Indicator | : | S - Shelf Stock |
| Sub Class Code | : | D052D0524 |
| Fitting Type | : | Bushings |
| Grounding Wire Capacity Maximum | : | #4 STR |
| Grounding Wire Capacity Minimum | : | #14 SOL |
| Conduit Type | : | Rigid/IMC |
| Material | : | Malleable Iron |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 5.188x10x5.25 (in) |
| Carton - Gross Weight per Pack | : | 6.7 lb. |
| Carton - Number of Sub Packs | : | 50 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 50169012147 |
| Carton - Total Units | : | 50 EA |
| Each - Pack Description | : | Each |
| Item Package Type | : | Carton |
| Lowest Level UOM | : | Each |
| Pallet - GTIN - Package | : | 70050169012146 |
| Pallet - Number of Sub Packs | : | 320 |
| Pallet - Pack Description | : | Pallet |
| Pallet - SCC-14 Next Lower Level Sub Pack | : | 50050169012142 |
| Pallet - Total Units | : | 16000 EA |
| Pallet Height | : | 45.879 in |
| Pallet Length | : | 42.000 in |
| Pallet Weight | : | 2189.000 lb. |
| Pallet Width | : | 48.000 in |
Certifications | ||
| Certified Listed | : | UL Listed;CSA Certified |
| EU RoHS Indicator | : | Contact Manufacturer |
- Malleable iron construction ensures mechanical protection
- Zinc-electroplated for added corrosion protection
- Insuliner rated for 150° C
- Grounding Wire Capacity - #14 Sol. - #4 Str.
- UL and CSA Listed
- Available in trade sizes of 1/2 in through 4 in.
Specifications
Buy American Compliant : Contact Manufacturer ChannelSightWidgetId : 705 Country of Origin : IN Dimensions : 0.969 in x 1.75 in x 2.125 in Width : 1.750 in Each - Width : 1.750 in Height : 2.125 in Industry Standard(s) : UL 514B Insulation Type : Insulated Length : 0.969 in Product Type : Commercial Fittings Size : 0.969 in x 1.75 in x 2.125 in Standard : UL 514B Trade Size : 1 in Configuration : 150 Degrees Connector Type : Grounding Weight : 0.134 lb. ARRA Compliant : Contact Manufacturer Class Code : D04 Description - Invoice : GRND BSHG LAYIN LUG 1 IN INSL MALL IRON Freight Class Code : 06202000 Harmonization Code : 7326908688 Image Actual Or Representative : R Lead Time : 21 wk MSDS Flag : Yes Order Multiple : 50 EA Replaced Catalog Number : 10095836 Returnable Indicator : Yes Stock Indicator : S - Shelf Stock Sub Class Code : D052D0524 Fitting Type : Bushings Grounding Wire Capacity Maximum : #4 STR Grounding Wire Capacity Minimum : #14 SOL Conduit Type : Rigid/IMC Material : Malleable Iron Base Unit of Measure : EA BOX SIZE : 5.188x10x5.25 (in) Carton - Gross Weight per Pack : 6.7 lb. Carton - Number of Sub Packs : 50 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 50169012147 Carton - Total Units : 50 EA Each - Pack Description : Each Item Package Type : Carton Lowest Level UOM : Each Pallet - GTIN - Package : 70050169012146 Pallet - Number of Sub Packs : 320 Pallet - Pack Description : Pallet Pallet - SCC-14 Next Lower Level Sub Pack : 50050169012142 Pallet - Total Units : 16000 EA Pallet Height : 45.879 in Pallet Length : 42.000 in Pallet Weight : 2189.000 lb. Pallet Width : 48.000 in Certifications
Certified Listed : UL Listed;CSA Certified EU RoHS Indicator : Contact Manufacturer - Downloads
Spec SheetMSDSBrochure Asset Reference 1Catalog Full Asset Reference 1Certification Document Asset Reference 1Sales Drawing Asset Reference 1Terms and Conditions Asset Reference 1
