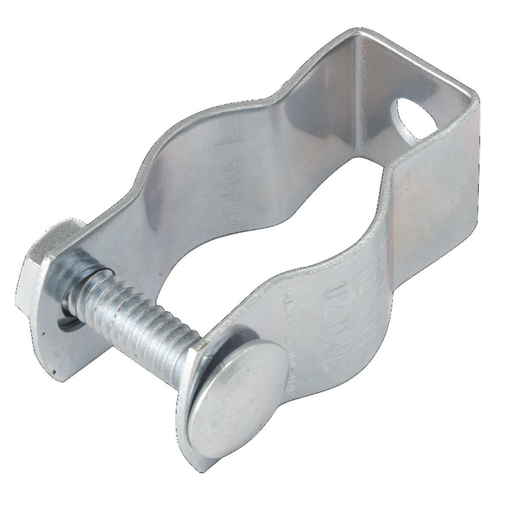

#6TS 2.5 in Rigid/EMT Conduit Hanger
MFG #2057
$13.90Â /Â E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
Product Description:
#6TS 2.5 in Rigid/EMT Conduit Hanger
HESCO Part Number
RAC2057
UPC
050169020579
Manufacturer Part Number
2057
Manufacturer
Raco
#6TS 2.5 in Rigid/EMT Conduit Hanger
MFG #2057
$13.90Â /Â E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
Product Description:
#6TS 2.5 in Rigid/EMT Conduit Hanger
HESCO Part Number
RAC2057
UPC
050169020579
Manufacturer Part Number
2057
Manufacturer
Raco
#6TS 2.5 in Rigid/EMT Conduit Hanger
MFG #2057
Product Description:
#6TS 2.5 in Rigid/EMT Conduit Hanger
HESCO Part Number
RAC2057
UPC
050169020579
Manufacturer Part Number
2057
Manufacturer
Raco
$13.90Â /Â E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
- Features
- Specifications
- Resources
- Furnished with nut and bolt to speed installation
- Pregalvanized finish provides corrosion protection
- Additional sizes available
Specifications
| Country of Origin | :Â Â | IN |
| Dimensions | :Â Â | 4.437 in x 1.25 in x 3.12 in |
| Width | :Â Â | 1.250 in |
| Each - Width | :Â Â | 1.250 in |
| Height | :Â Â | 3.12 in |
| Industry Standard(s) | :Â Â | UL 514B |
| Length | :Â Â | 4.437 in |
| Application | :Â Â | For use in wet or dry locations to support runs of rigid/IMC and EMT conduit from ceilings and walls |
| Size | :Â Â | 4.437 in x 1.25 in x 3.12 in |
| Standard | :Â Â | UL 514B |
| Trade Size | :Â Â | 6 |
| Weight | :Â Â | 0.315 lb. |
| Class Code | :Â Â | D04 |
| Description - Invoice | :Â Â | CONDUIT HANGER 2-1/2 IN RGD/EMT (TS 6) |
| Freight Class Code | :Â Â | 06202000 |
| Harmonization Code | :Â Â | 7326908630 |
| Image Actual Or Representative | :Â Â | R |
| Sub Class Code | :Â Â | D04D050 |
| EMT Size | :Â Â | 2.50 in |
| Hanger Size | :Â Â | 6 |
| Rigid/IMC Size | :Â Â | 2.50 in |
| Material | :Â Â | Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 8.000x10.000x7.250 (in) |
| Carton - Gross Weight per Pack | :Â Â | 7.875 lb. |
| Carton - Number of Sub Packs | :Â Â | 25 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00050169020579 |
| Carton - Total Units | :Â Â | 25 EA |
| Pallet - GTIN - Package | :Â Â | 70050169020578 |
| Pallet - SCC-14 Next Lower Level Sub Pack | :Â Â | 50050169020574 |
| Pallet - Total Units | :Â Â | 2500 EA |
| Pallet Height | :Â Â | 44.500 in |
| Pallet Length | :Â Â | 42.000 in |
| Pallet Weight | :Â Â | 832.500 lb. |
| Pallet Width | :Â Â | 48.000 in |
Certifications | ||
| Certified Listed | :Â Â | cULus Listed |
- Furnished with nut and bolt to speed installation
- Pregalvanized finish provides corrosion protection
- Additional sizes available
Specifications
Country of Origin :Â Â IN Dimensions :Â Â 4.437 in x 1.25 in x 3.12 in Width :Â Â 1.250 in Each - Width :Â Â 1.250 in Height :Â Â 3.12 in Industry Standard(s) :Â Â UL 514B Length :Â Â 4.437 in Application :Â Â For use in wet or dry locations to support runs of rigid/IMC and EMT conduit from ceilings and walls Size :Â Â 4.437 in x 1.25 in x 3.12 in Standard :Â Â UL 514B Trade Size :Â Â 6 Weight :Â Â 0.315 lb. Class Code :Â Â D04 Description - Invoice :Â Â CONDUIT HANGER 2-1/2 IN RGD/EMT (TS 6) Freight Class Code :Â Â 06202000 Harmonization Code :Â Â 7326908630 Image Actual Or Representative :Â Â R Sub Class Code :Â Â D04D050 EMT Size :Â Â 2.50 in Hanger Size :Â Â 6 Rigid/IMC Size :Â Â 2.50 in Material :Â Â Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 8.000x10.000x7.250 (in) Carton - Gross Weight per Pack :Â Â 7.875 lb. Carton - Number of Sub Packs :Â Â 25 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00050169020579 Carton - Total Units :Â Â 25 EA Pallet - GTIN - Package :Â Â 70050169020578 Pallet - SCC-14 Next Lower Level Sub Pack :Â Â 50050169020574 Pallet - Total Units :Â Â 2500 EA Pallet Height :Â Â 44.500 in Pallet Length :Â Â 42.000 in Pallet Weight :Â Â 832.500 lb. Pallet Width :Â Â 48.000 in Certifications
Certified Listed :Â Â cULus Listed - Downloads
Spec SheetMSDSCertification Document Asset Reference 1Sales Drawing Asset Reference 1Terms and Conditions Asset Reference 1
