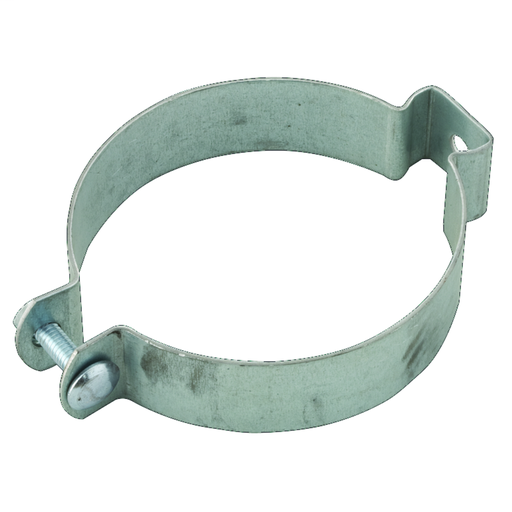

#9TS 4 in Rigid/EMT Conduit Hanger
MFG #2061
$46.16Â /Â E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
Product Description:
#9TS 4 in Rigid/EMT Conduit Hanger
HESCO Part Number
RAC2061
UPC
050169020616
Manufacturer Part Number
2061
Manufacturer
Raco
#9TS 4 in Rigid/EMT Conduit Hanger
MFG #2061
Product Description:
#9TS 4 in Rigid/EMT Conduit Hanger
HESCO Part Number
RAC2061
UPC
050169020616
Manufacturer Part Number
2061
Manufacturer
Raco
$46.16Â /Â E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
- Features
- Specifications
- Resources
- Furnished with nut and bolt to speed installation
- Pregalvanized finish provides corrosion protection
- Additional sizes available
Specifications
| Country of Origin | :Â Â | IN |
| Dimensions | :Â Â | 7 in x 1.75 in x 5.12 in |
| Width | :Â Â | 1.750 in |
| Each - Width | :Â Â | 1.750 in |
| Height | :Â Â | 5.12 in |
| Industry Standard(s) | :Â Â | UL 514B |
| Length | :Â Â | 7 in |
| Application | :Â Â | For use in wet or dry locations to support runs of rigid/IMC and EMT conduit from ceilings and walls |
| Size | :Â Â | 7 in x 1.75 in x 5.12 in |
| Standard | :Â Â | UL 514B |
| Trade Size | :Â Â | 9 |
| Weight | :Â Â | 0.753 lb. |
| Class Code | :Â Â | D04 |
| Description - Invoice | :Â Â | CONDUIT HANGER 4 IN RGD/EMT (TS 9) |
| Freight Class Code | :Â Â | 06202000 |
| Harmonization Code | :Â Â | 7326908630 |
| Image Actual Or Representative | :Â Â | A |
| Replaced Catalog Number | :Â Â | 10095815 |
| Sub Class Code | :Â Â | D04D050 |
| EMT Size | :Â Â | 4 in |
| Hanger Size | :Â Â | 9 |
| Rigid/IMC Size | :Â Â | 4 in |
| Material | :Â Â | Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 8.000x10.000x7.250 (in) |
| Carton - Gross Weight per Pack | :Â Â | 7.53 lb. |
| Carton - Number of Sub Packs | :Â Â | 10 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00050169020616 |
| Carton - Total Units | :Â Â | 10 EA |
| Pallet - GTIN - Package | :Â Â | 70050169020615 |
| Pallet - SCC-14 Next Lower Level Sub Pack | :Â Â | 50050169020611 |
| Pallet - Total Units | :Â Â | 1000 EA |
| Pallet Height | :Â Â | 44.500 in |
| Pallet Length | :Â Â | 42.000 in |
| Pallet Weight | :Â Â | 798.000 lb. |
| Pallet Width | :Â Â | 48.000 in |
Certifications | ||
| Certified Listed | :Â Â | cULus Listed |
- Furnished with nut and bolt to speed installation
- Pregalvanized finish provides corrosion protection
- Additional sizes available
Specifications
Country of Origin :Â Â IN Dimensions :Â Â 7 in x 1.75 in x 5.12 in Width :Â Â 1.750 in Each - Width :Â Â 1.750 in Height :Â Â 5.12 in Industry Standard(s) :Â Â UL 514B Length :Â Â 7 in Application :Â Â For use in wet or dry locations to support runs of rigid/IMC and EMT conduit from ceilings and walls Size :Â Â 7 in x 1.75 in x 5.12 in Standard :Â Â UL 514B Trade Size :Â Â 9 Weight :Â Â 0.753 lb. Class Code :Â Â D04 Description - Invoice :Â Â CONDUIT HANGER 4 IN RGD/EMT (TS 9) Freight Class Code :Â Â 06202000 Harmonization Code :Â Â 7326908630 Image Actual Or Representative :Â Â A Replaced Catalog Number :Â Â 10095815 Sub Class Code :Â Â D04D050 EMT Size :Â Â 4 in Hanger Size :Â Â 9 Rigid/IMC Size :Â Â 4 in Material :Â Â Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 8.000x10.000x7.250 (in) Carton - Gross Weight per Pack :Â Â 7.53 lb. Carton - Number of Sub Packs :Â Â 10 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00050169020616 Carton - Total Units :Â Â 10 EA Pallet - GTIN - Package :Â Â 70050169020615 Pallet - SCC-14 Next Lower Level Sub Pack :Â Â 50050169020611 Pallet - Total Units :Â Â 1000 EA Pallet Height :Â Â 44.500 in Pallet Length :Â Â 42.000 in Pallet Weight :Â Â 798.000 lb. Pallet Width :Â Â 48.000 in Certifications
Certified Listed :Â Â cULus Listed - Downloads
Spec SheetMSDSCatalog Full Asset ReferenceCertification Document Asset ReferenceSales Drawing Asset ReferenceTerms and Conditions Asset Reference
