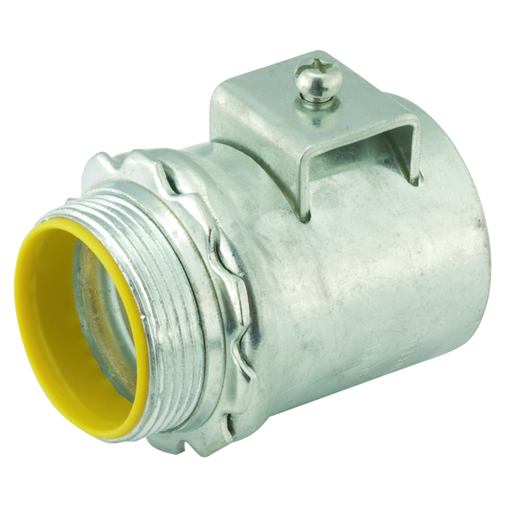

1-1/2 in. Flex Double Bite Saddle Connector
MFG #3306DB
$144.78Â /Â E
Each
Each
Product Description:
1-1/2 in. Flex Double Bite Saddle Connector
HESCO Part Number
RAC3306DB
UPC
050169533062
Manufacturer Part Number
3306DB
Manufacturer
Raco
1-1/2 in. Flex Double Bite Saddle Connector
MFG #3306DB
$144.78Â /Â E
Each
Each
Product Description:
1-1/2 in. Flex Double Bite Saddle Connector
HESCO Part Number
RAC3306DB
UPC
050169533062
Manufacturer Part Number
3306DB
Manufacturer
Raco
1-1/2 in. Flex Double Bite Saddle Connector
MFG #3306DB
Product Description:
1-1/2 in. Flex Double Bite Saddle Connector
HESCO Part Number
RAC3306DB
UPC
050169533062
Manufacturer Part Number
3306DB
Manufacturer
Raco
$144.78Â /Â E
Each
Each
- Features
- Specifications
- Resources
- All steel construction ensures mechanical protection for raceways
- Available in 3/8 in. to 4 in. trade sizes
- Dual saddle clamp ensures proper conduit and cable connection for raceway
- Zinc plated for corrosion resistant installation
- Tri-head screw/clamp design - connectors can be installed by using a slotted, Phillips or Robertson head screwdriver
- Insulated throats on all DOUBLE BITE connectors provide maximum wire protection
- Additional sizes available
Specifications
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | CN |
| Dimensions | :Â Â | 3.063 in x 2.5 in x 2.656 in |
| Width | :Â Â | 2.500 in |
| Each - Width | :Â Â | 2.500 in |
| Height | :Â Â | 2.656 in |
| Industry Standard(s) | :Â Â | UL 514B |
| Insulation Type | :Â Â | Insulated |
| Length | :Â Â | 3.063 in |
| Product Type | :Â Â | Commercial Fittings |
| Size | :Â Â | 3.063 in x 2.5 in x 2.656 in |
| Standard | :Â Â | UL 514B |
| Trade Size | :Â Â | 1-1/2 in |
| Configuration | :Â Â | Straight |
| Connector Type | :Â Â | Saddle |
| Nema Rating | :Â Â | NEMA FB-1 |
| Weight | :Â Â | 0.625 lb. |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | D04 |
| Description - Invoice | :Â Â | DOUBLE BITE FLEX CONN 1-1/2 IN INS STEEL |
| Freight Class Code | :Â Â | 06202000 |
| Harmonization Code | :Â Â | 7307199060 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 7 wk |
| MSDS Flag | :Â Â | Yes |
| Order Multiple | :Â Â | 5 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | D044D0453 |
| Fitting Type | :Â Â | Connectors |
| Conduit Type | :Â Â | Flexible Metal Conduit |
| Material | :Â Â | Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 3.5x7.5x5.8 (in) |
| Carton - Gross Weight per Pack | :Â Â | 3.13 lb. |
| Carton - Number of Sub Packs | :Â Â | 5 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 50169533062 |
| Carton - Total Units | :Â Â | 5 EA |
| Each - Pack Description | :Â Â | Each |
| Item Package Type | :Â Â | Carton |
| Lowest Level UOM | :Â Â | Each |
| Pallet - GTIN - Package | :Â Â | 70050169533061 |
| Pallet - Number of Sub Packs | :Â Â | 480 |
| Pallet - Pack Description | :Â Â | Pallet |
| Pallet - SCC-14 Next Lower Level Sub Pack | :Â Â | 50050169533067 |
| Pallet - Total Units | :Â Â | 2400 EA |
| Pallet Height | :Â Â | 46.375 in |
| Pallet Length | :Â Â | 42.000 in |
| Pallet Weight | :Â Â | 1545.000 lb. |
| Pallet Width | :Â Â | 48.000 in |
Certifications | ||
| Certified Listed | :Â Â | UL Listed |
| EU RoHS Indicator | :Â Â | Contact Manufacturer |
- All steel construction ensures mechanical protection for raceways
- Available in 3/8 in. to 4 in. trade sizes
- Dual saddle clamp ensures proper conduit and cable connection for raceway
- Zinc plated for corrosion resistant installation
- Tri-head screw/clamp design - connectors can be installed by using a slotted, Phillips or Robertson head screwdriver
- Insulated throats on all DOUBLE BITE connectors provide maximum wire protection
- Additional sizes available
Specifications
Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â CN Dimensions :Â Â 3.063 in x 2.5 in x 2.656 in Width :Â Â 2.500 in Each - Width :Â Â 2.500 in Height :Â Â 2.656 in Industry Standard(s) :Â Â UL 514B Insulation Type :Â Â Insulated Length :Â Â 3.063 in Product Type :Â Â Commercial Fittings Size :Â Â 3.063 in x 2.5 in x 2.656 in Standard :Â Â UL 514B Trade Size :Â Â 1-1/2 in Configuration :Â Â Straight Connector Type :Â Â Saddle Nema Rating :Â Â NEMA FB-1 Weight :Â Â 0.625 lb. ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â D04 Description - Invoice :Â Â DOUBLE BITE FLEX CONN 1-1/2 IN INS STEEL Freight Class Code :Â Â 06202000 Harmonization Code :Â Â 7307199060 Image Actual Or Representative :Â Â R Lead Time :Â Â 7 wk MSDS Flag :Â Â Yes Order Multiple :Â Â 5 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â D044D0453 Fitting Type :Â Â Connectors Conduit Type :Â Â Flexible Metal Conduit Material :Â Â Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 3.5x7.5x5.8 (in) Carton - Gross Weight per Pack :Â Â 3.13 lb. Carton - Number of Sub Packs :Â Â 5 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 50169533062 Carton - Total Units :Â Â 5 EA Each - Pack Description :Â Â Each Item Package Type :Â Â Carton Lowest Level UOM :Â Â Each Pallet - GTIN - Package :Â Â 70050169533061 Pallet - Number of Sub Packs :Â Â 480 Pallet - Pack Description :Â Â Pallet Pallet - SCC-14 Next Lower Level Sub Pack :Â Â 50050169533067 Pallet - Total Units :Â Â 2400 EA Pallet Height :Â Â 46.375 in Pallet Length :Â Â 42.000 in Pallet Weight :Â Â 1545.000 lb. Pallet Width :Â Â 48.000 in Certifications
Certified Listed :Â Â UL Listed EU RoHS Indicator :Â Â Contact Manufacturer - Downloads
Spec SheetMSDSCustomer Notices Asset Reference 1Sell Sheet Asset Reference 1Terms and Conditions Asset Reference 1Raco_Metal_Clad_Double_Bite_Selection_B74.pdf
