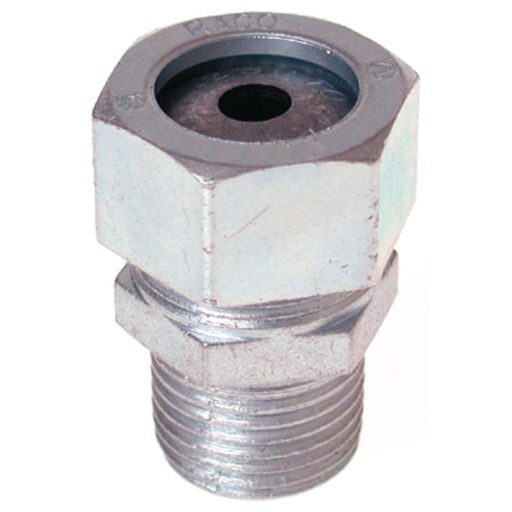

1 in. Hubs - Form 4 Liquidtight Strain Relief Cord Connector, Cable Range .600 - .700
MFG #3704-1
$62.84Â /Â E
EACH
EACH
Product Description:
1" Hubs Form 4 Liquidtight Strain Relief Connector, .600-.700 Cable Range
HESCO Part Number
RAC37041
UPC
050169370414
Manufacturer Part Number
3704-1
Manufacturer
Raco
1 in. Hubs - Form 4 Liquidtight Strain Relief Cord Connector, Cable Range .600 - .700
MFG #3704-1
Product Description:
1" Hubs Form 4 Liquidtight Strain Relief Connector, .600-.700 Cable Range
HESCO Part Number
RAC37041
UPC
050169370414
Manufacturer Part Number
3704-1
Manufacturer
Raco
$62.84Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Constructed from steel/malleable materials for enhanced mechanical strength
- Features a unique Neoprene grommet design that creates a positive liquidtight seal as the nut tightens, enveloping the cord
- Washers are clearly marked with size ranges for easy identification, reducing inventory errors
- Achieve a complete liquidtight installation using RACO locknuts and sealing washers on sheet metal boxes or panels
- All metallic components are zinc electroplated to resist corrosion
- UPC bar-coded fittings are individually packaged in polybags with preprinted UPC-A codes and housed in pre-scored tear-top cartons for a visually appealing presentation
- Available in sizes from 3/8 in. to 1 in. in steel, and 1-1/4 in. to 1-1/2 in. in malleable iron bodies and nuts
- Additional sizes are available to suit various project needs.
- RACO's 1 in. Hubs Form 4 Liquidtight Strain Relief Connector delivers a secure, reliable connection and a liquidtight seal that protects cables from water, dust, and contaminants, enhancing safety and efficiency across various applications.
Specifications
| Country of Origin | :Â Â | China |
| Description - Slang | :Â Â | Strain Relief Cord Connector |
| Dimensions | :Â Â | 1.797 in x 1.703 in x 1.703 in |
| Hazardous Rating(s) | :Â Â | Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2 |
| Height | :Â Â | 1.703 in |
| Length | :Â Â | 1.797 in |
| Product Type | :Â Â | Commercial Fittings |
| Environmental Conditions | :Â Â | Wet Location |
| Size | :Â Â | 1.797 in x 1.703 in x 1.703 in |
| Special Features | :Â Â | RACO's 1 in. Hubs Form 4 Liquidtight Strain Relief Connector delivers a secure, reliable connection and a liquidtight seal that protects cables from water, dust, and contaminants, enhancing safety and efficiency across various applications. |
| Weight | :Â Â | 0.327 lb. |
| Width | :Â Â | 1.703 in |
| Connector Type | :Â Â | Strain-Relief |
| Trade Size | :Â Â | 1 in |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | D04 |
| Description - Invoice | :Â Â | CORDGRIP CONN 1 IN (.600-.700) STEEL |
| Freight Class Code | :Â Â | 06202000 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 91 wk |
| MSDS Flag | :Â Â | Yes |
| Order Multiple | :Â Â | 25 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | D047D0484 |
| Cable Range | :Â Â | .600 - .700 in |
| Fitting Type | :Â Â | Connectors |
| Form Size | :Â Â | 4 in |
| Conduit Type | :Â Â | Liquidtight |
| Material | :Â Â | Steel/Malleable Iron |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 5.125x6.5x6.5 (in) |
| Carton - Gross Weight per Pack | :Â Â | 8.175 lb. |
| Carton - Number of Sub Packs | :Â Â | 25 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 50169370414 |
| Carton - Total Units | :Â Â | 25 EA |
| Each - Pack Description | :Â Â | Each |
| Item Package Type | :Â Â | Carton |
| Lowest Level UOM | :Â Â | Each |
| Pallet - GTIN - Package | :Â Â | 70050169370413 |
| Pallet - Number of Sub Packs | :Â Â | 294 |
| Pallet - Pack Description | :Â Â | Pallet |
| Pallet - SCC-14 Next Lower Level Sub Pack | :Â Â | 50050169370419 |
| Pallet - Total Units | :Â Â | 7350 EA |
| Pallet Height | :Â Â | 40.250 in |
| Pallet Length | :Â Â | 42.000 in |
| Pallet Weight | :Â Â | 2448.450 lb. |
| Pallet Width | :Â Â | 48.000 in |
| NAICS Code | :Â Â | 3359323113 |
Certifications | ||
| Buy American Compliant | :Â Â | Contact Manufacturer |
| EU RoHS Indicator | :Â Â | Contact Manufacturer |
- Constructed from steel/malleable materials for enhanced mechanical strength
- Features a unique Neoprene grommet design that creates a positive liquidtight seal as the nut tightens, enveloping the cord
- Washers are clearly marked with size ranges for easy identification, reducing inventory errors
- Achieve a complete liquidtight installation using RACO locknuts and sealing washers on sheet metal boxes or panels
- All metallic components are zinc electroplated to resist corrosion
- UPC bar-coded fittings are individually packaged in polybags with preprinted UPC-A codes and housed in pre-scored tear-top cartons for a visually appealing presentation
- Available in sizes from 3/8 in. to 1 in. in steel, and 1-1/4 in. to 1-1/2 in. in malleable iron bodies and nuts
- Additional sizes are available to suit various project needs.
- RACO's 1 in. Hubs Form 4 Liquidtight Strain Relief Connector delivers a secure, reliable connection and a liquidtight seal that protects cables from water, dust, and contaminants, enhancing safety and efficiency across various applications.
Specifications
Country of Origin :Â Â China Description - Slang :Â Â Strain Relief Cord Connector Dimensions :Â Â 1.797 in x 1.703 in x 1.703 in Hazardous Rating(s) :Â Â Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2 Height :Â Â 1.703 in Length :Â Â 1.797 in Product Type :Â Â Commercial Fittings Environmental Conditions :Â Â Wet Location Size :Â Â 1.797 in x 1.703 in x 1.703 in Special Features :Â Â RACO's 1 in. Hubs Form 4 Liquidtight Strain Relief Connector delivers a secure, reliable connection and a liquidtight seal that protects cables from water, dust, and contaminants, enhancing safety and efficiency across various applications. Weight :Â Â 0.327 lb. Width :Â Â 1.703 in Connector Type :Â Â Strain-Relief Trade Size :Â Â 1 in ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â D04 Description - Invoice :Â Â CORDGRIP CONN 1 IN (.600-.700) STEEL Freight Class Code :Â Â 06202000 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 91 wk MSDS Flag :Â Â Yes Order Multiple :Â Â 25 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â D047D0484 Cable Range :Â Â .600 - .700 in Fitting Type :Â Â Connectors Form Size :Â Â 4 in Conduit Type :Â Â Liquidtight Material :Â Â Steel/Malleable Iron Base Unit of Measure :Â Â EA BOX SIZE :Â Â 5.125x6.5x6.5 (in) Carton - Gross Weight per Pack :Â Â 8.175 lb. Carton - Number of Sub Packs :Â Â 25 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 50169370414 Carton - Total Units :Â Â 25 EA Each - Pack Description :Â Â Each Item Package Type :Â Â Carton Lowest Level UOM :Â Â Each Pallet - GTIN - Package :Â Â 70050169370413 Pallet - Number of Sub Packs :Â Â 294 Pallet - Pack Description :Â Â Pallet Pallet - SCC-14 Next Lower Level Sub Pack :Â Â 50050169370419 Pallet - Total Units :Â Â 7350 EA Pallet Height :Â Â 40.250 in Pallet Length :Â Â 42.000 in Pallet Weight :Â Â 2448.450 lb. Pallet Width :Â Â 48.000 in NAICS Code :Â Â 3359323113 Certifications
Buy American Compliant :Â Â Contact Manufacturer EU RoHS Indicator :Â Â Contact Manufacturer - Downloads
