Conduit Bodies, Covers & Gaskets
MFG #BLR-3
$81.01Â /Â E
Each
Each
Product Description:

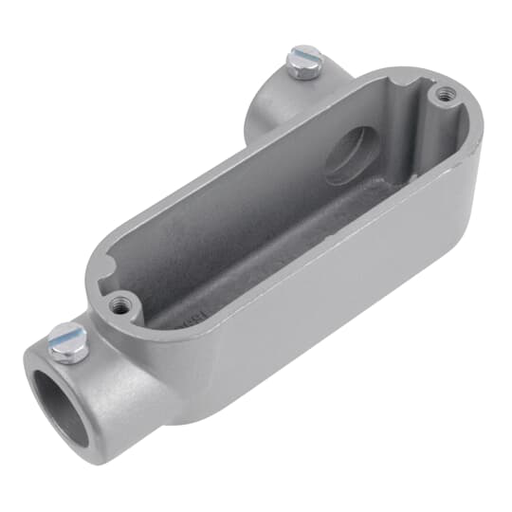

1 inch Set Screw Die Cast Aluminum Conduit Body with Right Side Opening. For Use with EMT Conduit.
HESCO Part Number
REDBLR3
UPC
04226933520
Manufacturer Part Number
BLR-3
Manufacturer
Thomas & Betts
Conduit Bodies, Covers & Gaskets
MFG #BLR-3
Product Description:
1 inch Set Screw Die Cast Aluminum Conduit Body with Right Side Opening. For Use with EMT Conduit.
HESCO Part Number
REDBLR3
UPC
04226933520
Manufacturer Part Number
BLR-3
Manufacturer
Thomas & Betts
$81.01Â /Â E
Each
Each
- Features
- Specifications
- Resources
- UL
- Retained stainless steel cover screws
- Smooth throats for easy wire pulling
- For use with EMT conduit
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices.
Dimension Information
| H (inches) | :Â Â | 1 |
| A (inches) | :Â Â | 5 3/8 |
| D (inches) | :Â Â | 1 3/4 |
| G (inches) | :Â Â | 2 1/2 |
| B (inches) | :Â Â | 4 7/8 |
| C (inches) | :Â Â | 5 5/16 |
| E (inches) | :Â Â | 1 7/8 |
| F (inches) | :Â Â | 4 7/8 |
Certifications | ||
| RoHS Compliance | :Â Â | Yes |
Packaging | ||
| T&B Sold in UOM | :Â Â | Each |
| Outer Package | :Â Â | 25 |
| Package Width | :Â Â | 10 |
| Package Height | :Â Â | 7.5 |
| Order Multiple | :Â Â | 5 |
| T&B Weight Per UOM | :Â Â | 61.63 lbs. per 100 |
| Inner Package | :Â Â | 5 |
| Package Length | :Â Â | 14.75 |
General | ||
| Trade Size (inches) | :Â Â | 1 |
| Material | :Â Â | Die Cast Aluminum |
| Volume (cu.in.) | :Â Â | 11.8 |
Accessories & Components | ||
| Cover-Die Cast | :Â Â | CV-3 |
| Gasket-Composition | :Â Â | GKV-3 |
| Gasket-Neoprene | :Â Â | GKN-3 |
| Cover-Stamped Aluminum | :Â Â | SCV-3 |
- UL
- Retained stainless steel cover screws
- Smooth throats for easy wire pulling
- For use with EMT conduit
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices.
Dimension Information
H (inches) :Â Â 1 A (inches) :Â Â 5 3/8 D (inches) :Â Â 1 3/4 G (inches) :Â Â 2 1/2 B (inches) :Â Â 4 7/8 C (inches) :Â Â 5 5/16 E (inches) :Â Â 1 7/8 F (inches) :Â Â 4 7/8 Certifications
RoHS Compliance :Â Â Yes Packaging
T&B Sold in UOM :Â Â Each Outer Package :Â Â 25 Package Width :Â Â 10 Package Height :Â Â 7.5 Order Multiple :Â Â 5 T&B Weight Per UOM :Â Â 61.63 lbs. per 100 Inner Package :Â Â 5 Package Length :Â Â 14.75 General
Trade Size (inches) :Â Â 1 Material :Â Â Die Cast Aluminum Volume (cu.in.) :Â Â 11.8 Accessories & Components
Cover-Die Cast :Â Â CV-3 Gasket-Composition :Â Â GKV-3 Gasket-Neoprene :Â Â GKN-3 Cover-Stamped Aluminum :Â Â SCV-3 - Application Support
