Panduit
GE255-L Grommet Edging, Natural, PA 6.6, 0.255" Max Panel, PK50
MFG #GE255-L
$2.89 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:

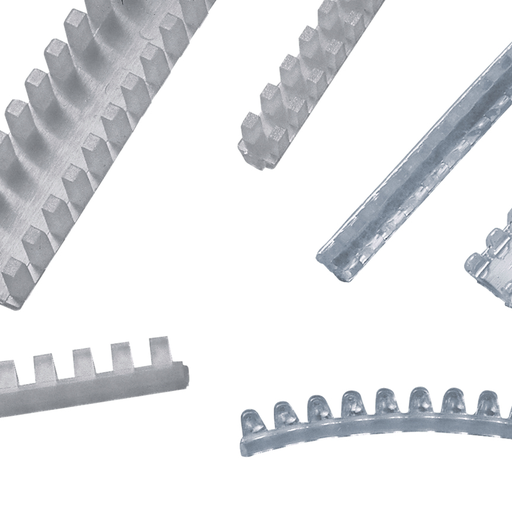

The GE255-L National Aerospace Standard Slotted Grommet Edging protects and prevents wires and cables from chafing against sharp edges of panel walls and knockouts. Nylon material. Designed for 0.192" - 0.255" (4.9 mm - 6.5 mm) thick panels. 12.75" (323.9 mm) long. Color Natural. 50 per package.
HESCO Part Number
PANGE255L
UPC
074983601387
Manufacturer Part Number
GE255-L
Manufacturer
Panduit
Panduit
GE255-L Grommet Edging, Natural, PA 6.6, 0.255" Max Panel, PK50
MFG #GE255-L
Product Description:
The GE255-L National Aerospace Standard Slotted Grommet Edging protects and prevents wires and cables from chafing against sharp edges of panel walls and knockouts. Nylon material. Designed for 0.192" - 0.255" (4.9 mm - 6.5 mm) thick panels. 12.75" (323.9 mm) long. Color Natural. 50 per package.
HESCO Part Number
PANGE255L
UPC
074983601387
Manufacturer Part Number
GE255-L
Manufacturer
Panduit
$2.89 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Specifications
- Resources
Specifications
| Product Segment | : | IEI |
| Note | : | Complies to National Aerospace Standard NAMS21266 (Formerly Military Standard MS21266) |
| Product Type | : | Grommet Edging |
| Color | : | Natural |
| Flammability Rating | : | UL94V-2 |
| Material | : | Nylon 6.6 |
| Maximum Compatible Panel Thickness (mm) | : | 6.5 |
| Maximum Compatible Panel Thickness (In.) | : | 0.255 |
| Maximum Operating Temperature (°F) | : | 149 |
| Maximum Operating Temperature (°C) | : | 65 |
| Minimum Compatible Panel Thickness (In.) | : | 0.192 |
| Minimum Compatible Panel Thickness (mm) | : | 4.9 |
| Minimum Operating Temperature (°F) | : | -40 |
| Minimum Operating Temperature (°C) | : | -40 |
| Overall Height (mm) | : | 6.1 |
| Overall Height (In.) | : | 0.24 |
| Overall Width (mm) | : | 9.8 |
| Overall Width (In.) | : | 0.39 |
| Overall Length (m) | : | 0.3 |
| Overall Length (ft.) | : | 1.06 |
| Resistance Properties | : | Abrasion-Resistant |
| Standards Met | : | RoHS Compliant; NAMS21266 (formerly Military Standard MS21266) |
| Application | : | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
Packaging Details | ||
| UPC | : | 07498360138 |
| GTIN Package | : | 00074983601387 |
| Standard Package Volume Ft3 | : | 0.0743 |
| Standard Package Weight Pounds | : | 1.1000 |
| Std Package Height In | : | 1.3 |
| Std Package Height MM | : | 33.02 |
| Std Package Length In | : | 14.2 |
| Std Package Length MM | : | 360.68 |
| Std Package Width In | : | 5.75 |
| Std Package Width MM | : | 146.05 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983601382 |
| Standard Carton Volume Ft3 | : | 0.7427 |
| Standard Carton Weight Pounds | : | 11.0000 |
| Std Carton Height In | : | 9.35 |
| Std Carton Height MM | : | 237.49 |
| Std Carton Length In | : | 14.4 |
| Std Carton Length MM | : | 365.76 |
| Std Carton Width In | : | 9 |
| Std Carton Width MM | : | 228.6 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| Country of Origin 2Digit | : | CR |
| RoHS Compliant | : | Compliant |
| EAN | : | 00074983601387 |
| REACH Status | : | False |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | No |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50 |
| Pallet Quantity | : | 30,000 |
| Pallet Volume | : | 44.563347 |
| Pallet Weight | : | 660.0000 |
