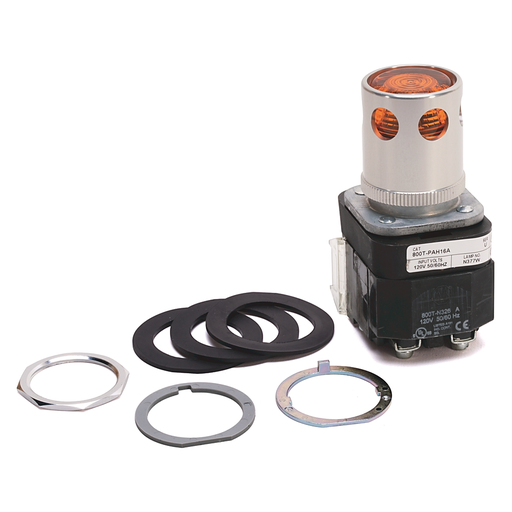

30mm Momentary Push Button 800T PB (800T-PAH16A)
MFG #800T-PAH16A
Product Description:
30.5mm Type 4/13 Mom. Contact PB-Illum., Amber, Ext. Hd w/ Guard, LED, 120V AC 50/60 Hz, 1 NO-1 NC
HESCO Part Number
AB800TPAH16A
UPC
662468269186
Manufacturer Part Number
800T-PAH16A
Manufacturer
Allen-Bradley
30mm Momentary Push Button 800T PB (800T-PAH16A)
MFG #800T-PAH16A
Product Description:
30.5mm Type 4/13 Mom. Contact PB-Illum., Amber, Ext. Hd w/ Guard, LED, 120V AC 50/60 Hz, 1 NO-1 NC
HESCO Part Number
AB800TPAH16A
UPC
662468269186
Manufacturer Part Number
800T-PAH16A
Manufacturer
Allen-Bradley
- Features
- Specifications
- Resources
- Eurasion Economic Community
- 1 NO, 1 NC, standard contact block
- China CCC
- 1, 4, 12, 13 enclosure compatibility
- UL Listed
- 30.5 mm
- 50 % humidity
- LED illumination lamp type
- Transformer illumination module type
- -25 °C operating temperature
Power Electrical Characteristics
| Illumination lamp type | : | LED |
| Illumination module type | : | Transformer |
| Operator cap/button material | : | Plastic |
| Operator cap/button shape | : | Round |
| Operator cap type | : | Extended head with guard |
| Suitable for illumination | : | true |
Construction | ||
| Operator construction/material | : | Metal |
Mechanical | ||
| Contact block configuration | : | 1 NO, 1 NC, standard contact block |
| Hole diameter | : | 30.5 mm |
| Operator cap/button size | : | 30 mm |
| Operator cap color | : | Amber |
| Operator function | : | Momentary contact |
| Operator type | : | Push button |
| Shock | : | 25 G (contact fragility)/100 G (no damage) |
| Type of electric connection | : | Screw connection |
| Vibration | : | 10 G maximum |
Standards Protection | ||
| Hazardous location rating | : | false |
| Humidity | : | 50 % |
| Operating temperature | : | -25 °C |
| Storage temperature | : | -40 °C |
Overview | ||
| Standard Warranty Duration | : | 1 year |
Specifications | ||
| Build America, Buy America | : | No |
| Repair Options Available | : | No |
| Enclosure compatibility | : | 1, 4, 12, 13 |
| Country of Origin | : | China |
- Eurasion Economic Community
- 1 NO, 1 NC, standard contact block
- China CCC
- 1, 4, 12, 13 enclosure compatibility
- UL Listed
- 30.5 mm
- 50 % humidity
- LED illumination lamp type
- Transformer illumination module type
- -25 °C operating temperature
Power Electrical Characteristics
Illumination lamp type : LED Illumination module type : Transformer Operator cap/button material : Plastic Operator cap/button shape : Round Operator cap type : Extended head with guard Suitable for illumination : true Construction
Operator construction/material : Metal Mechanical
Contact block configuration : 1 NO, 1 NC, standard contact block Hole diameter : 30.5 mm Operator cap/button size : 30 mm Operator cap color : Amber Operator function : Momentary contact Operator type : Push button Shock : 25 G (contact fragility)/100 G (no damage) Type of electric connection : Screw connection Vibration : 10 G maximum Standards Protection
Hazardous location rating : false Humidity : 50 % Operating temperature : -25 °C Storage temperature : -40 °C Overview
Standard Warranty Duration : 1 year Specifications
Build America, Buy America : No Repair Options Available : No Enclosure compatibility : 1, 4, 12, 13 Country of Origin : China - Downloads
Spec SheetGeneralBrochure
