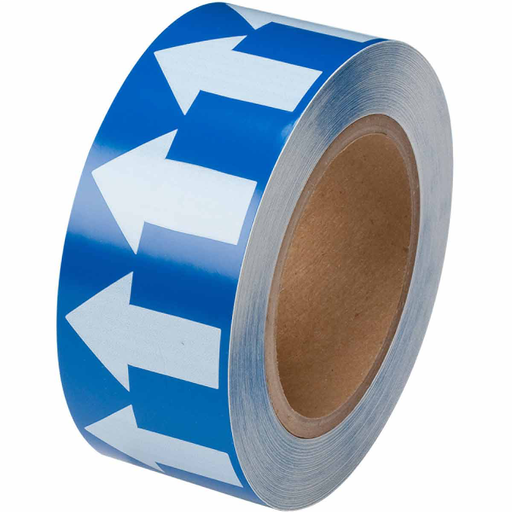

Pipe Marking Tape, 2" W x 30 yd L x 0.006" D, White on Blue
MFG #106174
$79.99 / E
EACH
EACH
Product Description:
B-302 is an indoor/outdoor high performance pressure sensitive safety sign, and is surface printed polyester with a polyester overlaminate.
HESCO Part Number
BRA106174
UPC
754473039837
Manufacturer Part Number
106174
Manufacturer
Brady
Pipe Marking Tape, 2" W x 30 yd L x 0.006" D, White on Blue
MFG #106174
Product Description:
B-302 is an indoor/outdoor high performance pressure sensitive safety sign, and is surface printed polyester with a polyester overlaminate.
HESCO Part Number
BRA106174
UPC
754473039837
Manufacturer Part Number
106174
Manufacturer
Brady
$79.99 / E
EACH
EACH
- Features
- Specifications
- Resources
- B-302 is particularly suited for outdoor applications, and in harsh environments where excellent abrasion and chemical resistance is required
- Weathers up to 8 years outdoors, even longer indoors, and withstands wide temperature variations (up to 230°F)
- Flexible material conforms to most surfaces while protected graphics hold up to harsh environments, abrasion, and repeated spills and cleanings
- Permanent, pressure sensitive adhesive forms a long-lasting bond to even the most difficult surfaces and shapes
Specifications
| Applications | : | Pipe and Valve Marking |
| Arrow Direction | : | Left/Right |
| Brand Name | : | Brady® |
| Color | : | White on Blue |
| Compatible Surface Types | : | Cold; High Surface Energy |
| Enables Industry Compliance | : | ANSI A13.1-2007 |
| Mounting Type | : | Self-Adhesive |
| Pipe Marker Mounting Style | : | Self-Adhesive |
| Pre-Printed Areas on Label | : | Arrows |
| Primary Noun, Basic Function | : | Pipe Marking Tape |
| Printer and Label Applications | : | General Identification; Safety |
| PSPA Photoluminescence Class | : | Not Illuminated |
| Reflective Type | : | Non-Reflective |
| Self-Adhesive Pipe Marker Format | : | Roll Form, Continuous |
| Adhesive Type | : | Permanent Acrylic |
| Brady Material Number | : | B-302 |
| Illumination | : | Not Illuminated |
| Indoor or Outdoor Use | : | Outdoor Use |
| Label Properties | : | Permanent Adhesive Labels |
| Material | : | Polyester with Polyester Overlaminate |
| Resistance Properties | : | Abrasion-Resistant; Chemical-Resistant |
| SAP B-Number | : | B-302 |
| Average Outdoor Durability | : | 5 to 8 Years |
| Depth (in/ft/yd) | : | 0.006 in |
| Depth (mm/cm/m) | : | 0.15 mm |
| Dimensions | : | 2 in W x 30 yd L x 0.006 in D |
| Dimensions (Metric) | : | 0.15 mm D |
| Dimensions 2 | : | 2 in W |
| Length (in/ft/yd) | : | 30 yd |
| Length (mm/cm/m) | : | 27.43 m |
| Maximum Service Temperature °C | : | 110 °C |
| Maximum Service Temperature °F | : | 230 °F |
| Minimum Application Temperature °C | : | -18 °C |
| Minimum Application Temperature °F | : | 0 °F |
| Minimum Service Temperature °C | : | -40 °C |
| Minimum Service Temperature °F | : | -40 °F |
| Roll Width (in/ft/yd) | : | 2 in |
| Roll Width (mm/cm/m) | : | 50.8 mm |
| Roll/Tape Length (in/ft/yd) | : | 30 yd |
| Roll/Tape Length (mm/cm/m) | : | 27.43 m |
| Roll/Tape Size (in/ft/yd) | : | 2 in W x 30 yd L x 0.006 in D |
| Roll/Tape Size (mm/cm/m) | : | 50.8 mm W x 27.43 m L |
| Thickness (in/ft/yd) | : | 0.01 in |
| Thickness (mm/cm/m) | : | 0.254 mm |
| Width (in/ft/yd) | : | 2 in |
| Width (mm/cm/m) | : | 50.8 mm |
Regulatory Information | ||
| Contains CA PROP 65 Substance | : | No - Does not contain |
| Contains CA PROP 65 Substance | : | No |
| Contains Heavy Metal(s) | : | No - Does not contain |
| DOT Regulated Product | : | No = not regulated by DOT |
| EU RoHS Compliance | : | Not Applicable |
| EU RoHS Compliant | : | No |
| SDS Safety Data Sheet required | : | No = MSDS/SDS is not required |
- B-302 is particularly suited for outdoor applications, and in harsh environments where excellent abrasion and chemical resistance is required
- Weathers up to 8 years outdoors, even longer indoors, and withstands wide temperature variations (up to 230°F)
- Flexible material conforms to most surfaces while protected graphics hold up to harsh environments, abrasion, and repeated spills and cleanings
- Permanent, pressure sensitive adhesive forms a long-lasting bond to even the most difficult surfaces and shapes
Specifications
Applications : Pipe and Valve Marking Arrow Direction : Left/Right Brand Name : Brady® Color : White on Blue Compatible Surface Types : Cold; High Surface Energy Enables Industry Compliance : ANSI A13.1-2007 Mounting Type : Self-Adhesive Pipe Marker Mounting Style : Self-Adhesive Pre-Printed Areas on Label : Arrows Primary Noun, Basic Function : Pipe Marking Tape Printer and Label Applications : General Identification; Safety PSPA Photoluminescence Class : Not Illuminated Reflective Type : Non-Reflective Self-Adhesive Pipe Marker Format : Roll Form, Continuous Adhesive Type : Permanent Acrylic Brady Material Number : B-302 Illumination : Not Illuminated Indoor or Outdoor Use : Outdoor Use Label Properties : Permanent Adhesive Labels Material : Polyester with Polyester Overlaminate Resistance Properties : Abrasion-Resistant; Chemical-Resistant SAP B-Number : B-302 Average Outdoor Durability : 5 to 8 Years Depth (in/ft/yd) : 0.006 in Depth (mm/cm/m) : 0.15 mm Dimensions : 2 in W x 30 yd L x 0.006 in D Dimensions (Metric) : 0.15 mm D Dimensions 2 : 2 in W Length (in/ft/yd) : 30 yd Length (mm/cm/m) : 27.43 m Maximum Service Temperature °C : 110 °C Maximum Service Temperature °F : 230 °F Minimum Application Temperature °C : -18 °C Minimum Application Temperature °F : 0 °F Minimum Service Temperature °C : -40 °C Minimum Service Temperature °F : -40 °F Roll Width (in/ft/yd) : 2 in Roll Width (mm/cm/m) : 50.8 mm Roll/Tape Length (in/ft/yd) : 30 yd Roll/Tape Length (mm/cm/m) : 27.43 m Roll/Tape Size (in/ft/yd) : 2 in W x 30 yd L x 0.006 in D Roll/Tape Size (mm/cm/m) : 50.8 mm W x 27.43 m L Thickness (in/ft/yd) : 0.01 in Thickness (mm/cm/m) : 0.254 mm Width (in/ft/yd) : 2 in Width (mm/cm/m) : 50.8 mm Regulatory Information
Contains CA PROP 65 Substance : No - Does not contain Contains CA PROP 65 Substance : No Contains Heavy Metal(s) : No - Does not contain DOT Regulated Product : No = not regulated by DOT EU RoHS Compliance : Not Applicable EU RoHS Compliant : No SDS Safety Data Sheet required : No = MSDS/SDS is not required - Downloads
Spec Sheet
