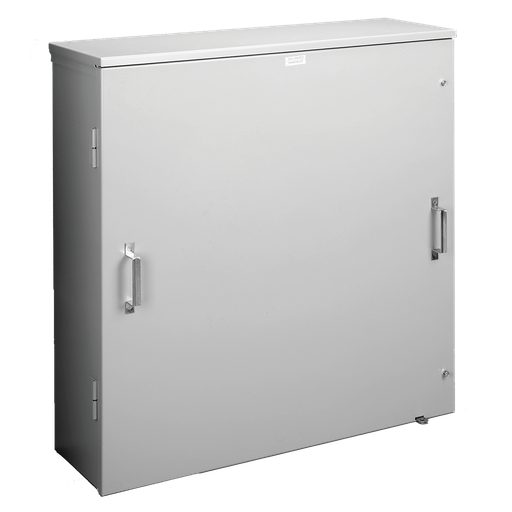

Current Transformer Hinged Cover, 48.00x24.00x11.00, Gray, Steel
MFG #A482411HCT
$1,850.00Â /Â E
EACH
EACH
Product Description:
CT Cabinet Hinged-Cover Type 3R provides protection and security for instrument current transformers. This Current Transformer Hinged Cover, A482411HCT item measures 48.00x24.00x11.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFA482411HCT
UPC
783510427092
Manufacturer Part Number
A482411HCT
Manufacturer
Hoffman
Current Transformer Hinged Cover, 48.00x24.00x11.00, Gray, Steel
MFG #A482411HCT
Product Description:
CT Cabinet Hinged-Cover Type 3R provides protection and security for instrument current transformers. This Current Transformer Hinged Cover, A482411HCT item measures 48.00x24.00x11.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFA482411HCT
UPC
783510427092
Manufacturer Part Number
A482411HCT
Manufacturer
Hoffman
$1,850.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Drip shield top and seam-free sides, front and back
- Mounting holes on back of enclosure
- Mounting studs are provided on the enclosure body
- Cover is removable in the open position
- Door handles provided
- Provisions for padlocking
- No gasketing or knockouts
- Ground lug
- Mounting provisions for optional door stop
- Enclosures are finished with paint over plated surfaces
Specifications
| Height (H) | :Â Â | 1,219 |
| Width (W) | :Â Â | 610 |
| Depth (D) | :Â Â | 279 |
| Protection Rating | :Â Â | NEMA Type 3R |
| Finish | :Â Â | Galvanized |
| Color | :Â Â | Gray |
| Color Code | :Â Â | ANSI 61 |
| Body Thickness | :Â Â | 2.66 |
| Door Thickness | :Â Â | 1.9 |
| Gauge | :Â Â | 14 |
| NEMA Rating | :Â Â | 3R Weather-resistant, except dust |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP32 |
| Weight | :Â Â | 117 |
| Material | :Â Â | Steel |
| Size | :Â Â | 48.00x24.00x11.00 in |
- Drip shield top and seam-free sides, front and back
- Mounting holes on back of enclosure
- Mounting studs are provided on the enclosure body
- Cover is removable in the open position
- Door handles provided
- Provisions for padlocking
- No gasketing or knockouts
- Ground lug
- Mounting provisions for optional door stop
- Enclosures are finished with paint over plated surfaces
Specifications
Height (H) :Â Â 1,219 Width (W) :Â Â 610 Depth (D) :Â Â 279 Protection Rating :Â Â NEMA Type 3R Finish :Â Â Galvanized Color :Â Â Gray Color Code :Â Â ANSI 61 Body Thickness :Â Â 2.66 Door Thickness :Â Â 1.9 Gauge :Â Â 14 NEMA Rating :Â Â 3R Weather-resistant, except dust Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP32 Weight :Â Â 117 Material :Â Â Steel Size :Â Â 48.00x24.00x11.00 in - Certificate
Certificate - CERT-00109 - NAM-USCertificate - CE-UKCA-00010_Enclosure-3R - NAM-US
DownloadsSpec Sheet
Data SheetData Sheet - Spec-00138 - NAM-CA
Instruction ManualInstruction Manual - 78332001 - NAM-USInstruction Manual - 99401484 - NAM-US
