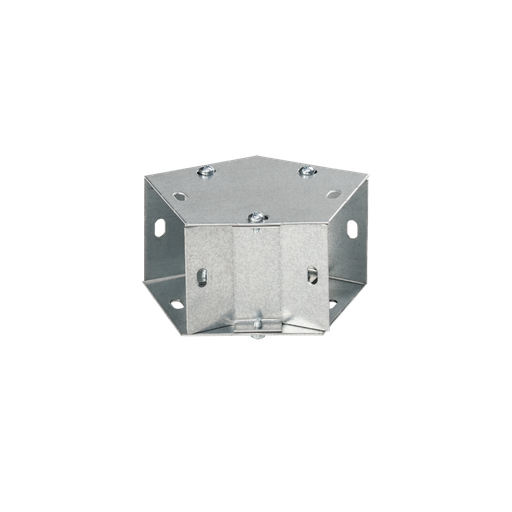

Elbow 45-Degree Lay-in, 12.00x12.00, Galvanized, Steel
MFG #F121245EGV
$271.00Â /Â E
Each
Each
Product Description:
Lay-in Galvanized 45-Degree Elbows are used for continuous run with 45-degree turns. This 45-Degree Elbow Lay-in, F121245EGV item measures 12.00x12.00 inches with a material of Steel finish Galvanized.
HESCO Part Number
HFF121245EGV
UPC
783510890001
Manufacturer Part Number
F121245EGV
Manufacturer
Hoffman
Elbow 45-Degree Lay-in, 12.00x12.00, Galvanized, Steel
MFG #F121245EGV
Product Description:
Lay-in Galvanized 45-Degree Elbows are used for continuous run with 45-degree turns. This 45-Degree Elbow Lay-in, F121245EGV item measures 12.00x12.00 inches with a material of Steel finish Galvanized.
HESCO Part Number
HFF121245EGV
UPC
783510890001
Manufacturer Part Number
F121245EGV
Manufacturer
Hoffman
$271.00Â /Â E
Each
Each
- Features
- Specifications
- Resources
- Lay-in Galvanized 45-Degree Elbows are used for continuous run with 45-degree turns
- Any side can be removed, retaining lay-in feature regardless of how the elbow is oriented
- Lay-in feature allows wires and cables can be laid in along wireway run
- No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system
- Sides are held together with screws
Specifications
| Length | :Â Â | 13.50 inch |
| Width | :Â Â | 13.00 inch |
| Height | :Â Â | 13.00 inch |
| Weight | :Â Â | 9.00 pound |
| Type | :Â Â | Elbow |
| Height (H) (inch) | :Â Â | 12 |
| Height (H) (millimetre) | :Â Â | 305 |
| Width (W) (inch) | :Â Â | 12 |
| Width (W) (millimetre) | :Â Â | 305 |
| Protection Rating | :Â Â | NEMA Type 1 |
| Material | :Â Â | Mild Steel |
| NEMA Rating | :Â Â | 1 Indoor, electrical protection |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 1 |
| Wireway | :Â Â | Lay-In NEMA Type 1 Galvanized Wireway |
| Color | :Â Â | Unpainted |
| Finish | :Â Â | Galvanized |
| Thickness (T) (gauge) | :Â Â | 14 |
| Thickness (T) (millimetre) | :Â Â | 1.9 |
| Weight (pound) | :Â Â | 9 |
Certificate
CERT-00155 NAM-US English CERT-00155
CERT-00155 NAM-CA English CERT-00155
CERT-00155 EMEA-EUR English CERT-00155
Declaration of Conformity NAM-US English CE-UKCA-00009_Type1-WW_Trough
Declaration of Conformity NAM-CA English CE-UKCA-00009_Type1-WW_Trough
Declaration of Conformity EMEA-EUR English CE-UKCA-00009_Type1-WW_Trough
Data Sheet
Lay-In Galvanized Wireway NEMA Type 1 Spec Sheet NAM-CA English Spec-00134
Lay-In Galvanized Wireway NEMA Type 1 Spec Sheet EMEA-EUR English Spec-00134
Downloads
Spec Sheet
CERT-00155 NAM-US English CERT-00155CERT-00155 NAM-CA English CERT-00155CERT-00155 EMEA-EUR English CERT-00155Declaration of Conformity NAM-US English CE-UKCA-00009_Type1-WW_TroughDeclaration of Conformity NAM-CA English CE-UKCA-00009_Type1-WW_TroughDeclaration of Conformity EMEA-EUR English CE-UKCA-00009_Type1-WW_TroughData Sheet
Lay-In Galvanized Wireway NEMA Type 1 Spec Sheet NAM-CA English Spec-00134Lay-In Galvanized Wireway NEMA Type 1 Spec Sheet EMEA-EUR English Spec-00134Downloads
Spec Sheet- Lay-in Galvanized 45-Degree Elbows are used for continuous run with 45-degree turns
- Any side can be removed, retaining lay-in feature regardless of how the elbow is oriented
- Lay-in feature allows wires and cables can be laid in along wireway run
- No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system
- Sides are held together with screws
Specifications
Length :Â Â 13.50 inch Width :Â Â 13.00 inch Height :Â Â 13.00 inch Weight :Â Â 9.00 pound Type :Â Â Elbow Height (H) (inch) :Â Â 12 Height (H) (millimetre) :Â Â 305 Width (W) (inch) :Â Â 12 Width (W) (millimetre) :Â Â 305 Protection Rating :Â Â NEMA Type 1 Material :Â Â Mild Steel NEMA Rating :Â Â 1 Indoor, electrical protection Modification Services :Â Â Yes Type Number :Â Â Type 1 Wireway :Â Â Lay-In NEMA Type 1 Galvanized Wireway Color :Â Â Unpainted Finish :Â Â Galvanized Thickness (T) (gauge) :Â Â 14 Thickness (T) (millimetre) :Â Â 1.9 Weight (pound) :Â Â 9 - CertificateCERT-00155 NAM-US English CERT-00155CERT-00155 NAM-CA English CERT-00155CERT-00155 EMEA-EUR English CERT-00155Declaration of Conformity NAM-US English CE-UKCA-00009_Type1-WW_TroughDeclaration of Conformity NAM-CA English CE-UKCA-00009_Type1-WW_TroughDeclaration of Conformity EMEA-EUR English CE-UKCA-00009_Type1-WW_Trough
Data SheetLay-In Galvanized Wireway NEMA Type 1 Spec Sheet NAM-CA English Spec-00134Lay-In Galvanized Wireway NEMA Type 1 Spec Sheet EMEA-EUR English Spec-00134
DownloadsSpec Sheet
