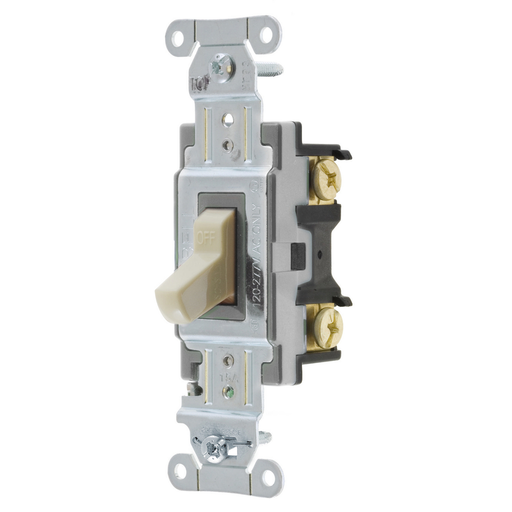

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, IvoryToggle
MFG #CS115I
$5.35 / E
EACH
EACH
Product Description:
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, IvoryToggle.
HESCO Part Number
HUBCS115I
UPC
783585901053
Manufacturer Part Number
CS115I
Manufacturer
Hubbell Wiring Device
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, IvoryToggle
MFG #CS115I
Product Description:
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, IvoryToggle.
HESCO Part Number
HUBCS115I
UPC
783585901053
Manufacturer Part Number
CS115I
Manufacturer
Hubbell Wiring Device
$5.35 / E
EACH
EACH
- Features
- Specifications
- Resources
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Specifications
| Country of Origin | : | CN |
| Dimensions | : | 4.18 in x 1.49 in x 1.83 in |
| Each - Width | : | 1.890 in |
| Height | : | 1.83 in |
| Industry Standard(s) | : | UL Listed |
| Length | : | 4.18 in |
| Standards - RoHS Compliance Status | : | CM |
| Temperature Rise - Max. | : | 30°C maximum at rated current |
| Amperage Rating | : | 15 A |
| Color | : | Ivory |
| Number of Poles | : | Single Pole |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Size | : | 4.18 in x 1.49 in x 1.83 in |
| Standard | : | UL Listed |
| Type | : | Toggle |
| Voltage Rating | : | 120-277 VAC |
| Weight | : | 0.15 lb. |
| Width | : | 1.49 in |
| Connectivity | : | Side Wired Only |
| Dielectric Strength | : | Withstands 1500V AC minimum for 1 minute |
| Number Of Poles | : | Single Pole |
| Style | : | Single Pole |
| Wire Size | : | #14 AWG to #10 AWG |
| Class Code | : | A16 |
| Description - Invoice | : | SWITCH, SPEC, SP, 15A 120/277V, IV |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536509901 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Replaced Catalog Number | : | CS115IA |
| Sub Class Code | : | A16A250 |
| Material | : | Nylon |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 3.500x9.900x4.600 (in) |
| Carton - Gross Weight per Pack | : | 1.8 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585901053 |
| Carton - Total Units | : | 10 EA |
| Case - Total Units | : | 50 EA |
| Case Weight | : | 5.503 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
| Pallet Height | : | 44.100 in |
| Pallet Length | : | 48.000 in |
| Pallet Weight | : | 778.500 lb. |
| Pallet Width | : | 40.000 in |
Certifications | ||
| EU RoHS Indicator | : | Yes |
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Specifications
Country of Origin : CN Dimensions : 4.18 in x 1.49 in x 1.83 in Each - Width : 1.890 in Height : 1.83 in Industry Standard(s) : UL Listed Length : 4.18 in Standards - RoHS Compliance Status : CM Temperature Rise - Max. : 30°C maximum at rated current Amperage Rating : 15 A Color : Ivory Number of Poles : Single Pole Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact Size : 4.18 in x 1.49 in x 1.83 in Standard : UL Listed Type : Toggle Voltage Rating : 120-277 VAC Weight : 0.15 lb. Width : 1.49 in Connectivity : Side Wired Only Dielectric Strength : Withstands 1500V AC minimum for 1 minute Number Of Poles : Single Pole Style : Single Pole Wire Size : #14 AWG to #10 AWG Class Code : A16 Description - Invoice : SWITCH, SPEC, SP, 15A 120/277V, IV Freight Class Code : 06168002 Harmonization Code : 8536509901 Image Actual Or Representative : A MSDS Flag : No Replaced Catalog Number : CS115IA Sub Class Code : A16A250 Material : Nylon Base Unit of Measure : EA BOX SIZE : 3.500x9.900x4.600 (in) Carton - Gross Weight per Pack : 1.8 lb. Carton - Number of Sub Packs : 10 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 783585901053 Carton - Total Units : 10 EA Case - Total Units : 50 EA Case Weight : 5.503 lb. Each - Pack Description : Each Lowest Level UOM : Each Pallet Height : 44.100 in Pallet Length : 48.000 in Pallet Weight : 778.500 lb. Pallet Width : 40.000 in Certifications
EU RoHS Indicator : Yes - Downloads
