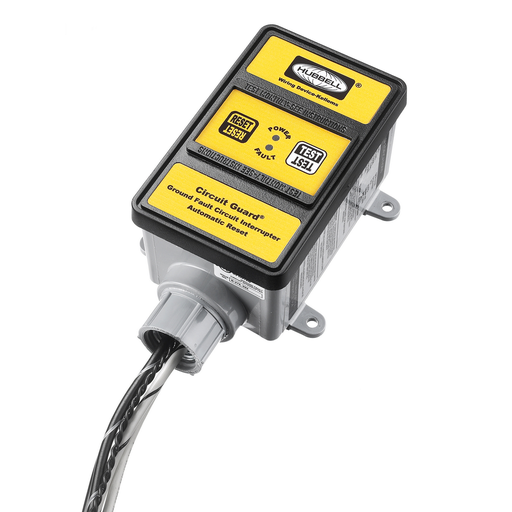

Power Protection Products, Hard Wired GFCI, Industrial/Commercial, Audible Alarm, 30A 240V AC, 4-6 mA Trip Level, Yellow
MFG #GFHW23115
$672.00 / E
Each
Each
Product Description:
Power Protection Products, Hard Wired GFCI, Industrial/Commercial, Audible Alarm, 30A 240V AC, 4-6 mA Trip Level, Yellow.
HESCO Part Number
HUBGFHW23115
UPC
783585005300
Manufacturer Part Number
GFHW23115
Manufacturer
Hubbell Wiring Device
Power Protection Products, Hard Wired GFCI, Industrial/Commercial, Audible Alarm, 30A 240V AC, 4-6 mA Trip Level, Yellow
MFG #GFHW23115
Product Description:
Power Protection Products, Hard Wired GFCI, Industrial/Commercial, Audible Alarm, 30A 240V AC, 4-6 mA Trip Level, Yellow.
HESCO Part Number
HUBGFHW23115
UPC
783585005300
Manufacturer Part Number
GFHW23115
Manufacturer
Hubbell Wiring Device
$672.00 / E
Each
Each
- Features
- Specifications
- Resources
- Electromagnetic Latching Mechanism
- Trips if ground and neutral touch at load side
- Red blinking light plus optional audible alarm
- Open neutral protection Trips upon loss of neutral
- Auto Set- Audible Alarm
Specifications
| Country of Origin | : | United States |
| Current / Amperage Rating | : | 30 A |
| Width | : | 5.800 in |
| Each - Width | : | 5.800 in |
| Industry Standard(s) | : | UL Listed |
| Performance | : | Electrical - Dielectric Withstand - 1500 VRMS across contact, 4000 VRMS between conductors & enclosure;Electrical - Operating Voltage Range - 85% to 110%;Electrical - Rated Voltage - 120V AC, 240V AC & 120/240V, 3Ø 250V AC, 3Ø 120/208V AC;Electrical - Surge Withstand - 6000V impulse, 0.5 ms rise time 100kHz ringing frequency;Environmental - Construction - Industrial grade design;Environmental - Housing Rating - UL Type 4X;Environmental - Leakage Current - At 93% Humidity leakage current is zero;Environmental - Operating Temperature - -35°C to 66°C, -30°F to 150°F.;Environmental - Type - Class A GFCI |
| Amperage Rating | : | 30 A |
| Application | : | Wire Into Circuit |
| Color | : | Yellow |
| Conductor Size | : | #10 AWG |
| Number of Conductors | : | 3 |
| Special Features | : | Auto Set- Audible Alarm |
| Standard | : | UL Listed |
| Strands | : | Multi |
| Temperature Rating | : | -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F) |
| Type | : | Hard Wired, Alarm |
| Voltage Rating | : | 240 VAC |
| Weight | : | 1.65 lb. |
| Voltage Rating Description | : | 240 VAC |
| Conductor Type | : | Copper |
| Connectivity | : | Hard Wired |
| Number Of Conductors | : | 3 |
| Style | : | Automatic Set |
| Class Code | : | A40 |
| Description - Invoice | : | HW GFCI, 30A 240V, AUTO, W/ENUN |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536308000 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Sub Class Code | : | A40A410 |
| Construction | : | Fabricated |
| Current Rating | : | 30 A |
| Material - Insulation | : | Thermoplastic |
| Series | : | Extra Heavy Duty |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 10.000x6.000x8.000 (in) |
| Carton - Gross Weight per Pack | : | 8.000 lb. |
| Carton - Number of Sub Packs | : | 5 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585005300 |
| Carton - Total Units | : | 5 EA |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
Certifications | ||
| EU RoHS Indicator | : | No |
- Electromagnetic Latching Mechanism
- Trips if ground and neutral touch at load side
- Red blinking light plus optional audible alarm
- Open neutral protection Trips upon loss of neutral
- Auto Set- Audible Alarm
Specifications
Country of Origin : United States Current / Amperage Rating : 30 A Width : 5.800 in Each - Width : 5.800 in Industry Standard(s) : UL Listed Performance : Electrical - Dielectric Withstand - 1500 VRMS across contact, 4000 VRMS between conductors & enclosure;Electrical - Operating Voltage Range - 85% to 110%;Electrical - Rated Voltage - 120V AC, 240V AC & 120/240V, 3Ø 250V AC, 3Ø 120/208V AC;Electrical - Surge Withstand - 6000V impulse, 0.5 ms rise time 100kHz ringing frequency;Environmental - Construction - Industrial grade design;Environmental - Housing Rating - UL Type 4X;Environmental - Leakage Current - At 93% Humidity leakage current is zero;Environmental - Operating Temperature - -35°C to 66°C, -30°F to 150°F.;Environmental - Type - Class A GFCI Amperage Rating : 30 A Application : Wire Into Circuit Color : Yellow Conductor Size : #10 AWG Number of Conductors : 3 Special Features : Auto Set- Audible Alarm Standard : UL Listed Strands : Multi Temperature Rating : -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F) Type : Hard Wired, Alarm Voltage Rating : 240 VAC Weight : 1.65 lb. Voltage Rating Description : 240 VAC Conductor Type : Copper Connectivity : Hard Wired Number Of Conductors : 3 Style : Automatic Set Class Code : A40 Description - Invoice : HW GFCI, 30A 240V, AUTO, W/ENUN Freight Class Code : 06168002 Harmonization Code : 8536308000 Image Actual Or Representative : A MSDS Flag : No Sub Class Code : A40A410 Construction : Fabricated Current Rating : 30 A Material - Insulation : Thermoplastic Series : Extra Heavy Duty Base Unit of Measure : EA BOX SIZE : 10.000x6.000x8.000 (in) Carton - Gross Weight per Pack : 8.000 lb. Carton - Number of Sub Packs : 5 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 783585005300 Carton - Total Units : 5 EA Each - Pack Description : Each Lowest Level UOM : Each Certifications
EU RoHS Indicator : No - Downloads
