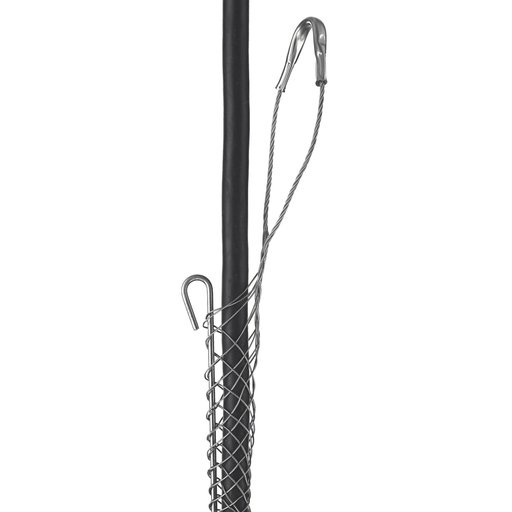

Support Grips, Offset Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 3.00-3.49"
MFG #HLD2
$84.60Â /Â E
Each
Each
Product Description:
Support Grips, Offset Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 3.00-3.49"
HESCO Part Number
HUBHLD2
UPC
783585186900
Manufacturer Part Number
HLD2
Manufacturer
Hubbell Wiring Device
Support Grips, Offset Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 3.00-3.49"
MFG #HLD2
Product Description:
Support Grips, Offset Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 3.00-3.49"
HESCO Part Number
HUBHLD2
UPC
783585186900
Manufacturer Part Number
HLD2
Manufacturer
Hubbell Wiring Device
$84.60Â /Â E
Each
Each
- Features
- Specifications
- Resources
- Offset eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
Specifications
Approx Breaking Strength | :Â Â | 8,400 lb. |
Cable Diameter Range | :Â Â | 3 in-3.49 in |
Country of Origin | :Â Â | US |
Width | :Â Â | 3.250 in |
Each - Width | :Â Â | 3.250 in |
Industry Standard(s) | :Â Â | CSA Certified |
Performance | :Â Â | Mechanical - Approximate Breaking Strength - 8,400 (37,365);Mechanical - Working Load - 840 (3736.5) Lbs. (N) |
Style | :Â Â | Split Mesh, Rod Closing |
Type | :Â Â | Offset Eye |
Class Code | :Â Â | A52 |
Description - Invoice | :Â Â | OFF EYE, SUP GRIP, 3.0-3.5", SS, ROD |
Freight Class Code | :Â Â | 06168002 |
Harmonization Code | :Â Â | 7326200090 |
Image Actual Or Representative | :Â Â | A |
MSDS Flag | :Â Â | No |
Sub Class Code | :Â Â | A52A480 |
Material | :Â Â | Stainless Steel |
Series | :Â Â | Standard Duty |
Base Unit of Measure | :Â Â | EA |
BOX SIZE | :Â Â | 12.500x32.250x18.250 (in) |
Carton - Gross Weight per Pack | :Â Â | 0.000 lb. |
Carton - Number of Sub Packs | :Â Â | 10 |
Carton - Pack Description | :Â Â | Carton |
Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00783585186900 |
Carton - Total Units | :Â Â | 10 |
- Offset eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
Specifications
Approx Breaking Strength :Â Â 8,400 lb. Cable Diameter Range :Â Â 3 in-3.49 in Country of Origin :Â Â US Width :Â Â 3.250 in Each - Width :Â Â 3.250 in Industry Standard(s) :Â Â CSA Certified Performance :Â Â Mechanical - Approximate Breaking Strength - 8,400 (37,365);Mechanical - Working Load - 840 (3736.5) Lbs. (N) Style :Â Â Split Mesh, Rod Closing Type :Â Â Offset Eye Class Code :Â Â A52 Description - Invoice :Â Â OFF EYE, SUP GRIP, 3.0-3.5", SS, ROD Freight Class Code :Â Â 06168002 Harmonization Code :Â Â 7326200090 Image Actual Or Representative :Â Â A MSDS Flag :Â Â No Sub Class Code :Â Â A52A480 Material :Â Â Stainless Steel Series :Â Â Standard Duty Base Unit of Measure :Â Â EA BOX SIZE :Â Â 12.500x32.250x18.250 (in) Carton - Gross Weight per Pack :Â Â 0.000 lb. Carton - Number of Sub Packs :Â Â 10 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00783585186900 Carton - Total Units :Â Â 10 - Downloads
Spec Sheet
Catalog Full Asset Reference
Catalog Page Asset Reference
Installation Manuals Asset Reference
Sales Drawing Asset Reference
Warranty Document Asset Reference
