Killark

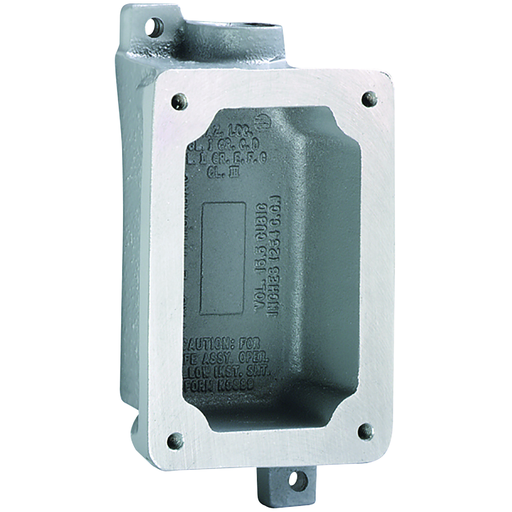

FXB Dead-End Single-Gang Splice Box - Factory Sealed -Hub Size ½"
MFG #FXB-1
$108.59 / E
Each
Each
Product Description:
FXB Series Aluminum Dead-End Single-Gang Splice Box - Factory Sealed -Hub Size ½"
HESCO Part Number
KILFXB1
UPC
783936200309
Manufacturer Part Number
FXB-1
Manufacturer
Killark
Killark
FXB Dead-End Single-Gang Splice Box - Factory Sealed -Hub Size ½"
MFG #FXB-1
Product Description:
FXB Series Aluminum Dead-End Single-Gang Splice Box - Factory Sealed -Hub Size ½"
HESCO Part Number
KILFXB1
UPC
783936200309
Manufacturer Part Number
FXB-1
Manufacturer
Killark
$108.59 / E
Each
Each
- Features
- Specifications
- Resources
- The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies.
- Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through.
Specifications
| Buy American Compliant | : | Contact Manufacturer |
| Mounting | : | Wall |
| Size | : | 9.25 in x 4 in x 4 in |
| Special Features | : | Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through. |
| ARRA Compliant | : | Contact Manufacturer |
| Color | : | Gray |
| Country of Origin | : | CN |
| Depth | : | 1-3/4 |
| Dimensions | : | 9.25 in x 4 in x 4 in |
| Each - Width | : | 4.000 in |
| Hazardous Rating(s) | : | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Height | : | 4 in |
| Length | : | 9.25 in |
| Width | : | 4 in |
| Application | : | The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies |
| Mounting Type | : | Wall |
| Nema Rating | : | 3 |
| Type | : | Aluminum Factory Sealed Single Gang Dead-End Splice Box |
| Weight | : | 1.55 lb. |
| Class Code | : | D25 |
| Description - Invoice | : | SPLICE BOX 1/2" 1GANG DEAD END |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 7616999999 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 15 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D25D250 |
| CSA File Number | : | LR11714, LR11712 |
| Gross Weight with Packaging | : | 1.55 |
| UL File Number | : | E53360 |
| Material | : | Aluminum, Copper Free (less than 4/10 of 1%) |
| Series | : | FXB |
| Base Unit of Measure | : | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936200309 |
| Master Pack Description | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies.
- Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through.
Specifications
Buy American Compliant : Contact Manufacturer Mounting : Wall Size : 9.25 in x 4 in x 4 in Special Features : Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through. ARRA Compliant : Contact Manufacturer Color : Gray Country of Origin : CN Depth : 1-3/4 Dimensions : 9.25 in x 4 in x 4 in Each - Width : 4.000 in Hazardous Rating(s) : Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 Height : 4 in Length : 9.25 in Width : 4 in Application : The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies Mounting Type : Wall Nema Rating : 3 Type : Aluminum Factory Sealed Single Gang Dead-End Splice Box Weight : 1.55 lb. Class Code : D25 Description - Invoice : SPLICE BOX 1/2" 1GANG DEAD END Freight Class Code : 06316009 Harmonization Code : 7616999999 Image Actual Or Representative : R Lead Time : 15 wk MSDS Flag : No Order Multiple : 1 EA Returnable Indicator : Yes Sub Class Code : D25D250 CSA File Number : LR11714, LR11712 Gross Weight with Packaging : 1.55 UL File Number : E53360 Material : Aluminum, Copper Free (less than 4/10 of 1%) Series : FXB Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00783936200309 Master Pack Description : Each Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
Spec SheetCatalog Full Asset ReferenceCertification Document Asset ReferenceCustomer Notices Asset Reference
