Killark

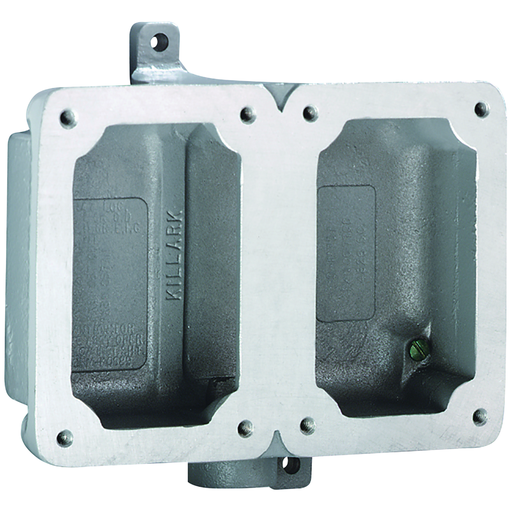

FXB Series - Aluminum Dead-End Double-Gang Splice Box - Factory Sealed -Hub Size 3/4 Inch
MFG #FXB-8
$228.71 / E
Each
Each
Product Description:
FXB Series - Aluminum Dead-End Double-Gang Splice Box - Factory Sealed -Hub Size 3/4 Inch
HESCO Part Number
KILFXB8
UPC
783936200378
Manufacturer Part Number
FXB-8
Manufacturer
Killark
Killark
FXB Series - Aluminum Dead-End Double-Gang Splice Box - Factory Sealed -Hub Size 3/4 Inch
MFG #FXB-8
Product Description:
FXB Series - Aluminum Dead-End Double-Gang Splice Box - Factory Sealed -Hub Size 3/4 Inch
HESCO Part Number
KILFXB8
UPC
783936200378
Manufacturer Part Number
FXB-8
Manufacturer
Killark
$228.71 / E
Each
Each
- Features
- Specifications
- Resources
- The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies.
- Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through.
Specifications
Buy American Compliant | : | Contact Manufacturer |
Country of Origin | : | US |
Depth | : | 2 |
Dimensions | : | 8.25 in x 6 in x 6.75 in |
Each - Width | : | 6.000 in |
Hazardous Rating(s) | : | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
Height | : | 6.75 in |
Length | : | 8.25 in |
Application | : | The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies |
Color | : | Gray |
Mounting | : | Wall |
Size | : | 8.25 in x 6 in x 6.75 in |
Special Features | : | Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through. |
Type | : | Aluminum Factory Sealed Double Gang Dead-End Splice Box |
Width | : | 6 in |
Mounting Type | : | Wall |
Nema Rating | : | 3 |
Weight | : | 2.91 lb. |
ARRA Compliant | : | Contact Manufacturer |
Class Code | : | D25 |
Description - Invoice | : | SPLICE BOX 3/4" 2GANG DEAD END |
Freight Class Code | : | 06316009 |
Harmonization Code | : | 7616995190 |
Image Actual Or Representative | : | R |
Lead Time | : | 15 wk |
MSDS Flag | : | No |
Order Multiple | : | 1 EA |
Returnable Indicator | : | Yes |
Sub Class Code | : | D25D250 |
CSA File Number | : | LR11714, LR11712 |
Gross Weight with Packaging | : | 2.91 |
UL File Number | : | E53360 |
Material | : | Aluminum, Copper Free (less than 4/10 of 1%) |
Series | : | FXB |
Base Unit of Measure | : | EA |
Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936200378 |
Master Pack Description | : | Each |
Certifications | ||
EU RoHS Indicator | : | Contact Manufacturer |
- The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies.
- Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through.
Specifications
Buy American Compliant : Contact Manufacturer Country of Origin : US Depth : 2 Dimensions : 8.25 in x 6 in x 6.75 in Each - Width : 6.000 in Hazardous Rating(s) : Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 Height : 6.75 in Length : 8.25 in Application : The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies Color : Gray Mounting : Wall Size : 8.25 in x 6 in x 6.75 in Special Features : Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through. Type : Aluminum Factory Sealed Double Gang Dead-End Splice Box Width : 6 in Mounting Type : Wall Nema Rating : 3 Weight : 2.91 lb. ARRA Compliant : Contact Manufacturer Class Code : D25 Description - Invoice : SPLICE BOX 3/4" 2GANG DEAD END Freight Class Code : 06316009 Harmonization Code : 7616995190 Image Actual Or Representative : R Lead Time : 15 wk MSDS Flag : No Order Multiple : 1 EA Returnable Indicator : Yes Sub Class Code : D25D250 CSA File Number : LR11714, LR11712 Gross Weight with Packaging : 2.91 UL File Number : E53360 Material : Aluminum, Copper Free (less than 4/10 of 1%) Series : FXB Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00783936200378 Master Pack Description : Each Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
Spec Sheet
Catalog Full Asset Reference
Certification Document Asset Reference
Customer Notices Asset Reference
