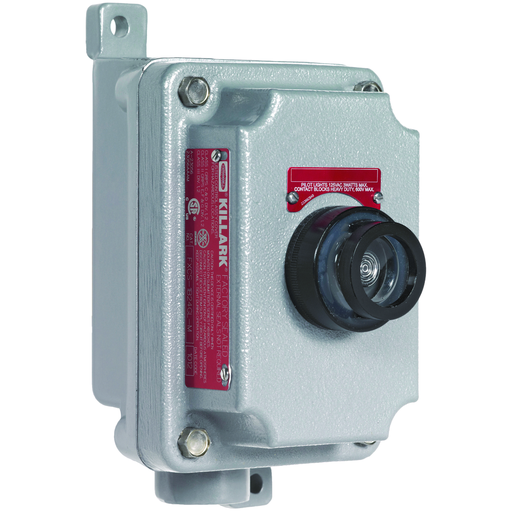

FXCS Series - Seal-XM - Aluminum Dead-End 120V Pilot Light Control Station -Factory Sealed - Red Lens With Nameplate To Be Specified - Hub Size 1/2Inch
MFG #FXCS-1B24RL-M
$392.34 / E
Each
Each
Product Description:
FXCS Series - Seal-XM - Aluminum Dead-End 120V Pilot Light Control Station -Factory Sealed - Red Lens With Nameplate To Be Specified - Hub Size 1/2Inch
HESCO Part Number
KILFXCS1B24RLM
UPC
783936000725
Manufacturer Part Number
FXCS-1B24RL-M
Manufacturer
Killark
FXCS Series - Seal-XM - Aluminum Dead-End 120V Pilot Light Control Station -Factory Sealed - Red Lens With Nameplate To Be Specified - Hub Size 1/2Inch
MFG #FXCS-1B24RL-M
$392.34 / E
Each
Each
Product Description:
FXCS Series - Seal-XM - Aluminum Dead-End 120V Pilot Light Control Station -Factory Sealed - Red Lens With Nameplate To Be Specified - Hub Size 1/2Inch
HESCO Part Number
KILFXCS1B24RLM
UPC
783936000725
Manufacturer Part Number
FXCS-1B24RL-M
Manufacturer
Killark
FXCS Series - Seal-XM - Aluminum Dead-End 120V Pilot Light Control Station -Factory Sealed - Red Lens With Nameplate To Be Specified - Hub Size 1/2Inch
MFG #FXCS-1B24RL-M
Product Description:
FXCS Series - Seal-XM - Aluminum Dead-End 120V Pilot Light Control Station -Factory Sealed - Red Lens With Nameplate To Be Specified - Hub Size 1/2Inch
HESCO Part Number
KILFXCS1B24RLM
UPC
783936000725
Manufacturer Part Number
FXCS-1B24RL-M
Manufacturer
Killark
$392.34 / E
Each
Each
- Features
- Specifications
- Resources
- Incorporates Factory Sealed Universal contact blocks and GOB3 LED pilot light devices.
- External sealing fittings typically not required, reducing installation time and cost.
- No seal plate between the electrical device and back box allows direct wiring to contact terminals.
- NEMA 3 weatherproof.
- Grounding boss supplied in the splice box.
- Sold as a complete unit.
- Standard finish is a gray epoxy powder baked on for ultimate corrosion resistance.
- More wiring room in back box.
- Killark SEAL-XM Factory Sealed Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. cCSAus Certified.
Specifications
| Back Box Type | : | FXB |
| Buy American Compliant | : | Contact Manufacturer |
| Color | : | Red |
| Country of Origin | : | US |
| Depth | : | 4.59 |
| Hazardous Rating(s) | : | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Hub Size | : | 1/2" |
| Actuator | : | Single Pilot Light |
| Ambient Temp. Range | : | UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C |
| Amperage Rating | : | 0.025 A |
| Application | : | SEAL-XM Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings |
| Frequency Rating | : | 50/60 Hz |
| Nema Rating | : | 3 |
| Type | : | Factory Sealed |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D25 |
| Description - Invoice | : | SINGLE PL COVER ASSY RED LENS 1/2" DE |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 8531809051 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Sub Class Code | : | D25D250 |
| CSA File Number | : | LR11714, 2493125 |
| Factory Sealed | : | Factory Sealed |
| Hub Pattern | : | Dead-End |
| Series | : | Seal-XM |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- Incorporates Factory Sealed Universal contact blocks and GOB3 LED pilot light devices.
- External sealing fittings typically not required, reducing installation time and cost.
- No seal plate between the electrical device and back box allows direct wiring to contact terminals.
- NEMA 3 weatherproof.
- Grounding boss supplied in the splice box.
- Sold as a complete unit.
- Standard finish is a gray epoxy powder baked on for ultimate corrosion resistance.
- More wiring room in back box.
- Killark SEAL-XM Factory Sealed Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. cCSAus Certified.
Specifications
Back Box Type : FXB Buy American Compliant : Contact Manufacturer Color : Red Country of Origin : US Depth : 4.59 Hazardous Rating(s) : Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 Hub Size : 1/2" Actuator : Single Pilot Light Ambient Temp. Range : UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C Amperage Rating : 0.025 A Application : SEAL-XM Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings Frequency Rating : 50/60 Hz Nema Rating : 3 Type : Factory Sealed ARRA Compliant : Contact Manufacturer Class Code : D25 Description - Invoice : SINGLE PL COVER ASSY RED LENS 1/2" DE Freight Class Code : 06316009 Harmonization Code : 8531809051 Image Actual Or Representative : A MSDS Flag : No Sub Class Code : D25D250 CSA File Number : LR11714, 2493125 Factory Sealed : Factory Sealed Hub Pattern : Dead-End Series : Seal-XM Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
