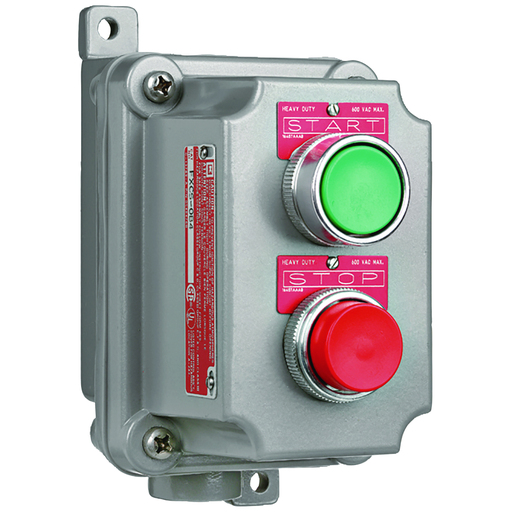

FXCS Series - Aluminum Dead-End Momentary Contact Double Push Button Control Station - Factory Sealed - Red And Green Buttons With "Start"Nameplates - Hub Size 1/2 Inch - 1NO/1NC Contact Rating
MFG #FXCS-1B4
$790.07Â /Â E
EACH
EACH
Product Description:
FXCS Series - Aluminum Dead-End Momentary Contact Double Push Button Control Station - Factory Sealed - Red And Green Buttons With "Start"Nameplates - Hub Size 1/2 Inch - 1NO/1NC Contact Rating
HESCO Part Number
KILFXCS1B4
UPC
783936200828
Manufacturer Part Number
FXCS-1B4
Manufacturer
Killark
FXCS Series - Aluminum Dead-End Momentary Contact Double Push Button Control Station - Factory Sealed - Red And Green Buttons With "Start"Nameplates - Hub Size 1/2 Inch - 1NO/1NC Contact Rating
MFG #FXCS-1B4
Product Description:
FXCS Series - Aluminum Dead-End Momentary Contact Double Push Button Control Station - Factory Sealed - Red And Green Buttons With "Start"Nameplates - Hub Size 1/2 Inch - 1NO/1NC Contact Rating
HESCO Part Number
KILFXCS1B4
UPC
783936200828
Manufacturer Part Number
FXCS-1B4
Manufacturer
Killark
$790.07Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
| Back Box Type | :Â Â | FXB |
| Country of Origin | :Â Â | US |
| Depth | :Â Â | 5.06 |
| Dimensions | :Â Â | 6.63 in x 6 in x 4.38 in |
| Each - Width | :Â Â | 6.000 in |
| Hazardous Rating(s) | :Â Â | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Height | :Â Â | 4.38 in |
| Hub Size | :Â Â | 1/2" |
| Length | :Â Â | 6.63 in |
| Action | :Â Â | Momentary |
| Actuator | :Â Â | Single Pushbutton |
| Amperage Rating | :Â Â | 10 A |
| Application | :Â Â | SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings |
| Color | :Â Â | Green-Red |
| Contact Rating | :Â Â | 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; |
| Number of Poles | :Â Â | 2 |
| Size | :Â Â | 6.63 in x 6 in x 4.38 in |
| Special Features | :Â Â | Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. |
| Type | :Â Â | Factory Sealed |
| Width | :Â Â | 6 in |
| Frequency Rating | :Â Â | 50/60 Hz |
| Nema Rating | :Â Â | 3 |
| Number Of Poles | :Â Â | 2 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | D25 |
| Description - Invoice | :Â Â | BOX CVR 2PB 1/2"DEAD GRN/RED |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 8536509035 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 15 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Sub Class Code | :Â Â | D25D250 |
| CSA File Number | :Â Â | LR11714, LR11712 |
| Factory Sealed | :Â Â | Factory Sealed |
| Gross Weight with Packaging | :Â Â | 4.4 |
| Hub Pattern | :Â Â | Dead-End |
| UL File Number | :Â Â | E53360, E12379 |
| Series | :Â Â | FXCS |
| Base Unit of Measure | :Â Â | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00783936200828 |
| Master Pack Description | :Â Â | Each |
Certifications | ||
| EU RoHS Indicator | :Â Â | Contact Manufacturer |
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Back Box Type :Â Â FXB Country of Origin :Â Â US Depth :Â Â 5.06 Dimensions :Â Â 6.63 in x 6 in x 4.38 in Each - Width :Â Â 6.000 in Hazardous Rating(s) :Â Â Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 Height :Â Â 4.38 in Hub Size :Â Â 1/2" Length :Â Â 6.63 in Action :Â Â Momentary Actuator :Â Â Single Pushbutton Amperage Rating :Â Â 10 A Application :Â Â SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings Color :Â Â Green-Red Contact Rating :Â Â 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; Number of Poles :Â Â 2 Size :Â Â 6.63 in x 6 in x 4.38 in Special Features :Â Â Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. Type :Â Â Factory Sealed Width :Â Â 6 in Frequency Rating :Â Â 50/60 Hz Nema Rating :Â Â 3 Number Of Poles :Â Â 2 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â D25 Description - Invoice :Â Â BOX CVR 2PB 1/2"DEAD GRN/RED Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 8536509035 Image Actual Or Representative :Â Â R Lead Time :Â Â 15 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Sub Class Code :Â Â D25D250 CSA File Number :Â Â LR11714, LR11712 Factory Sealed :Â Â Factory Sealed Gross Weight with Packaging :Â Â 4.4 Hub Pattern :Â Â Dead-End UL File Number :Â Â E53360, E12379 Series :Â Â FXCS Base Unit of Measure :Â Â EA Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00783936200828 Master Pack Description :Â Â Each Certifications
EU RoHS Indicator :Â Â Contact Manufacturer - Downloads
