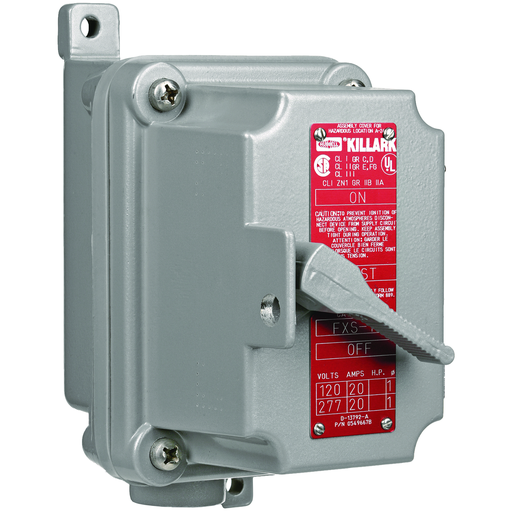

FXSX Series - Aluminum Dead-End Single Gang 3-Pole, 3-Phase Manual Motor Starting Switch Unit - Without Overload Protection - Hub Size 3/4Inch
MFG #FXSX23
Requires Quote
/ Each
Product Description:
FXSX Series - Aluminum Dead-End Single Gang 3-Pole, 3-Phase Manual Motor Starting Switch Unit - Without Overload Protection - Hub Size 3/4Inch
HESCO Part Number
KILFXSX23
UPC
783936198040
Manufacturer Part Number
FXSX23
Manufacturer
Killark
FXSX Series - Aluminum Dead-End Single Gang 3-Pole, 3-Phase Manual Motor Starting Switch Unit - Without Overload Protection - Hub Size 3/4Inch
MFG #FXSX23
Product Description:
FXSX Series - Aluminum Dead-End Single Gang 3-Pole, 3-Phase Manual Motor Starting Switch Unit - Without Overload Protection - Hub Size 3/4Inch
HESCO Part Number
KILFXSX23
UPC
783936198040
Manufacturer Part Number
FXSX23
Manufacturer
Killark
Requires Quote
/ Each
- Features
- Specifications
- Resources
- FXSX Series (without overload protection) are ideally suited for across the-line applications where a positive disconnect means is required.
- Factory Sealed so no external seals are required.
- Type 3 (raintight) rated.
- Enclosures are cast copper-free aluminum alloy.
- Operating shaft is stainless steel.
- Multiple gang assemblies available in combination with pilot lights, pushbuttons and switches on request.
- Ground flange joint between bolted cover and box provide required flame path.
- Provisions for padlocking switch in either “ON” or ”OFF” position is standard.
- FXSX Series requires no external seals (factory sealed) and are NEMA 3 (raintight) rated. Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Pro
Specifications
| Buy American Compliant | : | Contact Manufacturer |
| Country of Origin | : | US |
| Width | : | 6.750 in |
| Each - Width | : | 6.750 in |
| Hazardous Rating(s) | : | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Horsepower - Maximum | : | 5 |
| Application | : | Provides manual starting and stopping of small AC or DC motors. Motor running protection when overload heaters are used. FXSX Series (without overload protection) is ideally suited for across-the-line applications where a positive disconnect means is requ |
| Special Features | : | FXSX Series requires no external seals (factory sealed) and are NEMA 3 (raintight) rated. Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Pro |
| Type | : | Aluminum Manual Motor Starting Switch Without Overload Protection |
| Voltage Rating | : | 600 V |
| Frequency Rating | : | 60 Hz |
| Nema Rating | : | 3 |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D25 |
| Description - Invoice | : | SWITCH 1GANG 3P DEAD 3/4" |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 8536504000 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 20 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D25D253 |
| CSA File Number | : | LR11714 |
| Gross Weight with Packaging | : | 4.4 |
| UL File Number | : | E53360 / E12379 |
| Material | : | Aluminum, Copper Free (less than 4/10 of 1%) |
| Series | : | FXSX |
| Base Unit of Measure | : | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936198040 |
| Master Pack Description | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- FXSX Series (without overload protection) are ideally suited for across the-line applications where a positive disconnect means is required.
- Factory Sealed so no external seals are required.
- Type 3 (raintight) rated.
- Enclosures are cast copper-free aluminum alloy.
- Operating shaft is stainless steel.
- Multiple gang assemblies available in combination with pilot lights, pushbuttons and switches on request.
- Ground flange joint between bolted cover and box provide required flame path.
- Provisions for padlocking switch in either “ON” or ”OFF” position is standard.
- FXSX Series requires no external seals (factory sealed) and are NEMA 3 (raintight) rated. Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Pro
Specifications
Buy American Compliant : Contact Manufacturer Country of Origin : US Width : 6.750 in Each - Width : 6.750 in Hazardous Rating(s) : Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 Horsepower - Maximum : 5 Application : Provides manual starting and stopping of small AC or DC motors. Motor running protection when overload heaters are used. FXSX Series (without overload protection) is ideally suited for across-the-line applications where a positive disconnect means is requ Special Features : FXSX Series requires no external seals (factory sealed) and are NEMA 3 (raintight) rated. Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Pro Type : Aluminum Manual Motor Starting Switch Without Overload Protection Voltage Rating : 600 V Frequency Rating : 60 Hz Nema Rating : 3 ARRA Compliant : Contact Manufacturer Class Code : D25 Description - Invoice : SWITCH 1GANG 3P DEAD 3/4" Freight Class Code : 06316009 Harmonization Code : 8536504000 Image Actual Or Representative : R Lead Time : 20 wk MSDS Flag : No Order Multiple : 1 EA Returnable Indicator : Yes Sub Class Code : D25D253 CSA File Number : LR11714 Gross Weight with Packaging : 4.4 UL File Number : E53360 / E12379 Material : Aluminum, Copper Free (less than 4/10 of 1%) Series : FXSX Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00783936198040 Master Pack Description : Each Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
