Killark

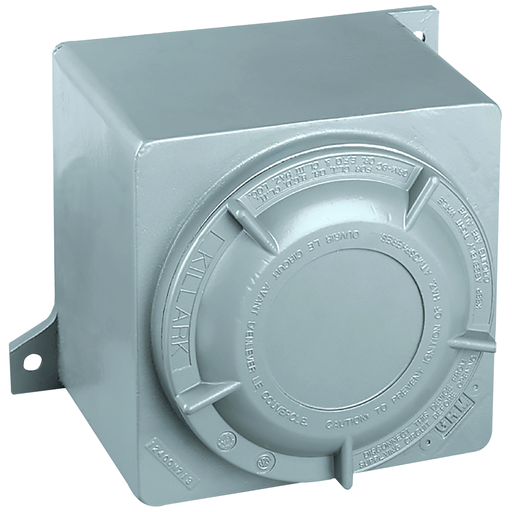

GR Series, 9.5 X 10.5 X 5, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Screw Cover Enclosure
MFG #GRH
$2,536.66Â /Â E
EACH
EACH
Product Description:
GR Series, 9.5 X 10.5 X 5, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Screw Cover Enclosure
HESCO Part Number
KILGRH
UPC
783936230030
Manufacturer Part Number
GRH
Manufacturer
Killark
Killark
GR Series, 9.5 X 10.5 X 5, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Screw Cover Enclosure
MFG #GRH
Product Description:
GR Series, 9.5 X 10.5 X 5, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Screw Cover Enclosure
HESCO Part Number
KILGRH
UPC
783936230030
Manufacturer Part Number
GRH
Manufacturer
Killark
$2,536.66Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Compact rectangular enclosures with threaded screw covers provide easy access to interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Available with a flat blank or dome covers.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Cast mounting lugs are standard on all boxes.
- Internal ground screw supplied on all boxes.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box and cover.
- Mounting pans are available.
- Conduit and device openings factory or field installed.
- Compact square or rectangular enclosures with threaded screw type covers provide easy access to interior. Can be shipped in component parts and still maintain third party UL-CSA-FM approvals. Enclosure has blank cover. Cast mounting lugs are standard on a
Specifications
| Country of Origin | :Â Â | US |
| Dimensions | :Â Â | 15.375 in x 13.875 in x 9.875 in |
| Each - Width | :Â Â | 13.875 in |
| Hazardous Rating(s) | :Â Â | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Height | :Â Â | 9.875 in |
| Application | :Â Â | Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica |
| Color | :Â Â | Gray |
| Length | :Â Â | 15.375 in |
| NEMA Rating | :Â Â | 3, 4, 4X |
| Size | :Â Â | 15.375 in x 13.875 in x 9.875 in |
| Special Features | :Â Â | Compact square or rectangular enclosures with threaded screw type covers provide easy access to interior. Can be shipped in component parts and still maintain third party UL-CSA-FM approvals. Enclosure has blank cover. Cast mounting lugs are standard on a |
| Type | :Â Â | Enclosure & Blank Cover |
| Width | :Â Â | 13.875 in |
| Cover Type | :Â Â | Threaded |
| Nema Rating | :Â Â | 3, 4, 4X |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | D25 |
| Description - Invoice | :Â Â | CLI 12X11X7-5/8 JUNCTION BOX |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7616995190 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 20 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Sub Class Code | :Â Â | D25D252 |
| CSA File Number | :Â Â | LR11716 |
| Gross Weight with Packaging | :Â Â | 40.52 |
| UL File Number | :Â Â | E10514 / E83696 |
| Material | :Â Â | Copper-free aluminum |
| Base Unit of Measure | :Â Â | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00783936230030 |
| Master Pack Description | :Â Â | Each |
Certifications | ||
| EU RoHS Indicator | :Â Â | Contact Manufacturer |
Downloads
STEP 3D Model Asset Reference
Catalog Full Asset Reference
Catalog Page Asset Reference
Certification Document Asset Reference 1
Certification Document Asset Reference 2
Certification Document Asset Reference 3
Customer Notices Asset Reference
Installation Manuals Asset Reference
Sales Drawing Asset Reference
GRH Engineering Drawing
