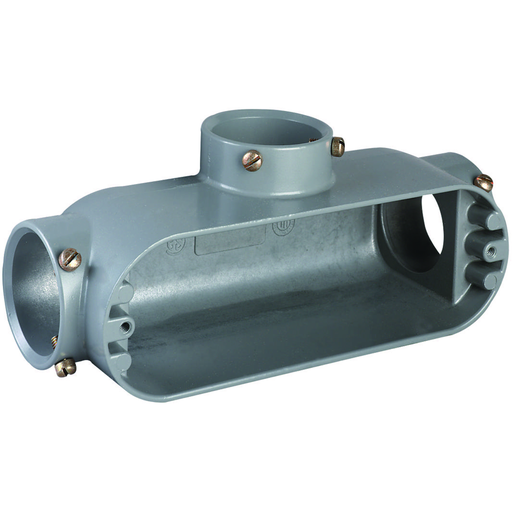

TWO Series - Aluminum Conduit Body - T Type - Hub Size 1" - Volume 10.0 Cubic Inches
MFG #TWOT-3
$47.42Â /Â E
Each
Each
Product Description:
TWO Series - Aluminum Conduit Body - T Type - Hub Size 1" - Volume 10.0 Cubic Inches.
HESCO Part Number
KILTWOT3
UPC
783936650241
Manufacturer Part Number
TWOT-3
Manufacturer
Killark
TWO Series - Aluminum Conduit Body - T Type - Hub Size 1" - Volume 10.0 Cubic Inches
MFG #TWOT-3
Product Description:
TWO Series - Aluminum Conduit Body - T Type - Hub Size 1" - Volume 10.0 Cubic Inches.
HESCO Part Number
KILTWOT3
UPC
783936650241
Manufacturer Part Number
TWOT-3
Manufacturer
Killark
$47.42Â /Â E
Each
Each
- Features
- Specifications
- Resources
- Combination bodies have threaded and set screw hubs. Volume is 10 cu. in.
Specifications
| Country of Origin | :Â Â | US |
| Dimensions | :Â Â | 11 in x 7 in x 3.75 in |
| Width | :Â Â | 7.000 in |
| Each - Width | :Â Â | 7.000 in |
| Application | :Â Â | To provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. For use with EMT only (not threaded). |
| Color | :Â Â | Gray |
| Finish | :Â Â | Powder Epoxy Paint |
| Height | :Â Â | 3.75 in |
| Hub Size | :Â Â | 1" |
| Length | :Â Â | 11 in |
| Special Features | :Â Â | Combination bodies have threaded and set screw hubs. Volume is 10 cu. in. |
| Type | :Â Â | Conduit Body |
| Finish Type | :Â Â | Powder Epoxy Paint |
| Class Code | :Â Â | D30 |
| Description - Invoice | :Â Â | 1" T CONDUIT BODY THINWALL |
| Freight Class Code | :Â Â | 06168002 |
| Harmonization Code | :Â Â | 7609000000 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 42 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Sub Class Code | :Â Â | D30D231 |
| Gross Weight with Packaging | :Â Â | 0.55 |
| Hub Pattern | :Â Â | T |
| Material | :Â Â | Aluminum, Copper Free (less than 4/10 of 1%) |
| Series | :Â Â | TW |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 4.000x12.000x7.250 (in) |
| Carton - Gross Weight per Pack | :Â Â | 2.750 lb. |
| Carton - Number of Sub Packs | :Â Â | 5 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00783936650241 |
| Carton - Total Units | :Â Â | 5 EA |
| Master Pack Description | :Â Â | Each |
Certifications | ||
| EU RoHS Indicator | :Â Â | Contact Manufacturer |
- Combination bodies have threaded and set screw hubs. Volume is 10 cu. in.
Specifications
Country of Origin :Â Â US Dimensions :Â Â 11 in x 7 in x 3.75 in Width :Â Â 7.000 in Each - Width :Â Â 7.000 in Application :Â Â To provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. For use with EMT only (not threaded). Color :Â Â Gray Finish :Â Â Powder Epoxy Paint Height :Â Â 3.75 in Hub Size :Â Â 1" Length :Â Â 11 in Special Features :Â Â Combination bodies have threaded and set screw hubs. Volume is 10 cu. in. Type :Â Â Conduit Body Finish Type :Â Â Powder Epoxy Paint Class Code :Â Â D30 Description - Invoice :Â Â 1" T CONDUIT BODY THINWALL Freight Class Code :Â Â 06168002 Harmonization Code :Â Â 7609000000 Image Actual Or Representative :Â Â R Lead Time :Â Â 42 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Sub Class Code :Â Â D30D231 Gross Weight with Packaging :Â Â 0.55 Hub Pattern :Â Â T Material :Â Â Aluminum, Copper Free (less than 4/10 of 1%) Series :Â Â TW Base Unit of Measure :Â Â EA BOX SIZE :Â Â 4.000x12.000x7.250 (in) Carton - Gross Weight per Pack :Â Â 2.750 lb. Carton - Number of Sub Packs :Â Â 5 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00783936650241 Carton - Total Units :Â Â 5 EA Master Pack Description :Â Â Each Certifications
EU RoHS Indicator :Â Â Contact Manufacturer - Downloads
Spec SheetCertification Document Asset ReferenceCustomer Notices Asset Reference
